Protection Applications Examples
345 kV Tapped Overhead Transmission Line Example
Trip Logic
Trip logic configures the relay for tripping. There are four trip logic settings:
➤ Trip equations
➤ Trip unlatch options
➤ Trip timers
➤ Three-pole tripping enable
Trip Equations
Set these three SELOGIC control equations for tripping:
➤ TR (unconditional)
➤ TRCOMM/TRCOMMD (communications-assisted; in this example,
use only TRCOMM)
➤ TRSOTF (Switch-Onto-Fault)
TR
The TR SELOGIC control equation determines which protection elements cause
the relay to trip unconditionally. Set TR to the Zone 1 instantaneous distance pro-
tection (Z1T), Zone 2 time-delayed distance protection, and the inverse-time
overcurrent element (51S1) for backup protection. For information on setting
51S1, see Selectable Operating Quantity Time Overcurrent Element 1 on
page 6.10.
TR := Z1T OR Z2T OR 51S1T. Trip (SELOGIC Equation)
TRCOMM
The TRCOMM SELOGIC control equation determines which protection elements
cause the relay to trip via the communications-assisted tripping scheme logic. Set
delayed Zone 2 mho phase and ground-distance protection (Z2PGS) plus delayed

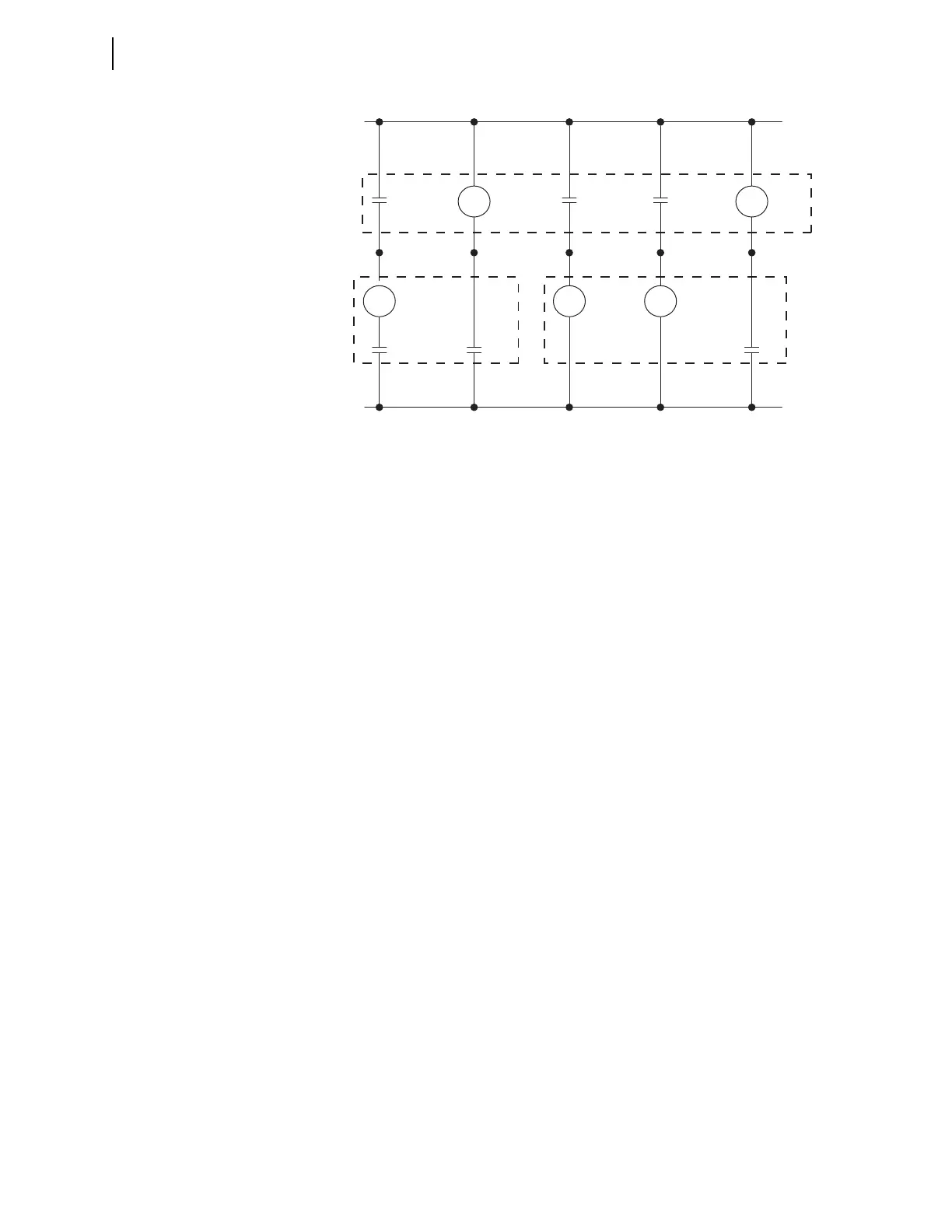

Figure 6.18 DC Schematic for DCB Trip Scheme
52TC
OUT101
(3PT)
52A
START
IN101
(52AA1)
CB1 (Partial)
SEL-421 Relay
(Partial)
Carrier
(Partial)
IN103
(BT)
STOP
OUT102
(START)
OUT103
(STOP
OR 3PT)
52A
+
—
RX
