DNP3 Communication
DNP3 Serial Application Example
DNP3 Serial Application Example
Application
This example uses an SEL-421 connected to an RTU over an EIA-485 network.
The RTU collects basic metering information from the relay. The network for this
example is shown in Figure 16.6.
The metering and status data that the RTU collects from the relay are listed in
Table 16.11.
=>>SET D 1 TERSE <Enter>
DNP 1
DNP Object Default Map Enables
Use default DNP map for Binary Inputs (Y/N) DNPBID := Y ?<Enter>
Use default DNP map for Binary Outputs (Y/N) DNPBOD := Y ?<Enter>
Use default DNP map for Counters (Y/N) DNPCOD := Y ?<Enter>
Use default DNP map for Analog Inputs (Y/N) DNPAID := Y ?N <Enter>
Use default DNP map for Analog Outputs (Y/N) DNPAOD := Y ?<Enter>
Min Fault Location to Capture (OFF,-10000 - 10000) MINDIST := OFF ?
Max Fault Location to Capture (OFF,-10000 - 10000) MAXDIST := OFF ?
Analog Input Map
(Analog Input Label, Scale Factor, Deadband)
1:
? LIBFM <Enter>
2:
? LICFM <Enter>
3:
? LIAFM <Enter>
4:
? 3P_F,5 <Enter>
5:
? VAFM <Enter>
6:
? VAFA,1,15 <Enter>
7:
? FREQ,.01,1 <Enter>
8:
? END
Save settings (Y,N) ?Y <Enter>
Saving Settings, Please Wait...........
Settings Saved
Figure 16.5 Sample Custom DNP3 Analog Input Map Settings

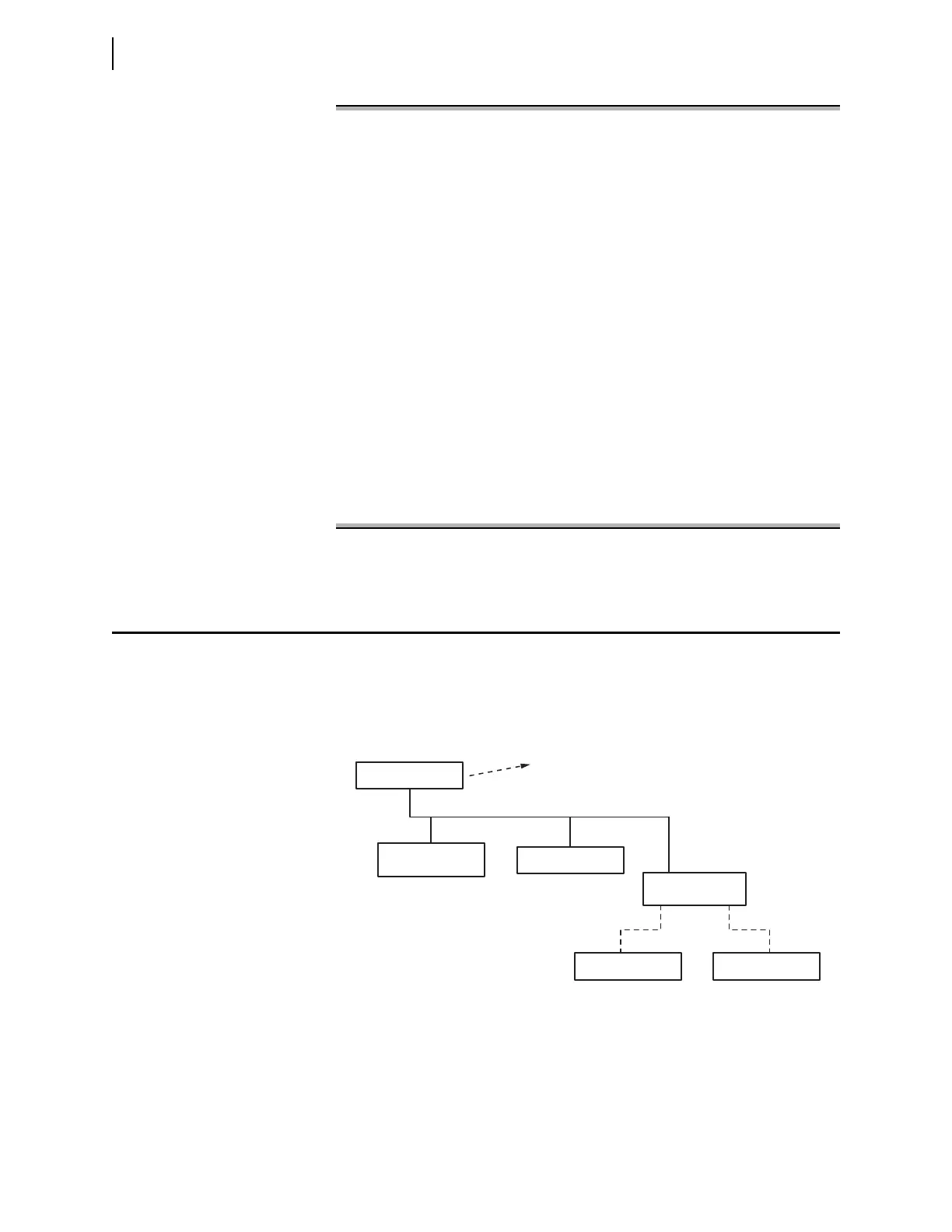

Figure 16.6 DNP3 Application Network Diagram
SEL-421
DNP3 IED
Non-DNP3 IED
To SCADA Control Center
RTU
...
...
SEL-2030
Non-DNP3 IED
