Schweitzer Engineering Laboratories SEL-421-4 - Figure 2.40 SEL-2244-2 Digital Input Module

2.40
SEL-421 Relay Instruction Manual Date Code 20171021
Installation
Connection
SEL-2244-5 Fast High-Current Digital Output Module
The SEL-2244-5 Fast High-Current Digital Output Module consists of 10 fast,
high-current output contacts. The outputs use the first 8 of the10 outputs and map
as follows:
Fifth SEL-2244-2 DI Module IN501–IN512
Sixth SEL-2244-2 DI Module IN513–IN524

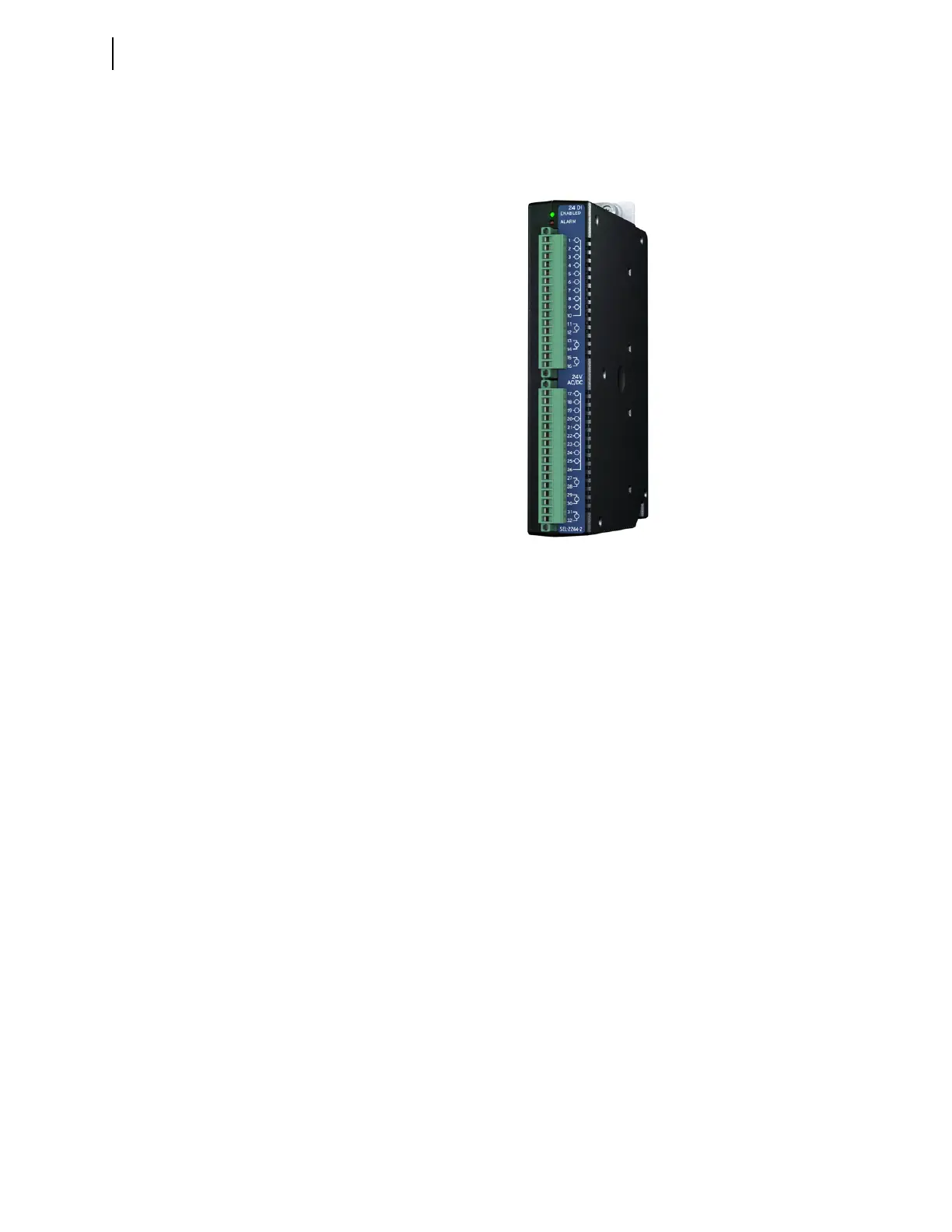

Figure 2.40 SEL-2244-2 Digital Input Module
First SEL-2244-5 DO Module OUT301–OUT308
Second SEL-2244-5 DO Module OUT309–OUT316
Third SEL-2244-5 DO Module OUT401–OUT408
Fourth SEL-2244-5 DO Module OUT409–OUT416
Fifth SEL-2244-5 DO Module OUT501–OUT508
Sixth SEL-2244-5 DO Module OUT509–OUT516
