17.23
Date Code 20171006 Instruction Manual SEL-400 Series Relays
IEC 61850 Communication
IEC 61850 Configuration
The following example includes configurations via the Architect software. The
software supports IEC 61850 MMS, GOOSE, and SV configurations. This exam-
ple shows how to use the software to configure two SV publications on an
SEL-401 and an SEL-421.
Example 17.1 SV Application
Step 1. Open Architect.
Step 2. Insert the SEL-401 ICD and the SEL-421-7 SV Subscriber
Relay ICD in the project tree.
Step 3. Create an SV Publication for the SEL-401. Configure SVID,
MAC address, APP ID, and VLAN information as desired.
Select an SV dataset to associate it with the SV publication.

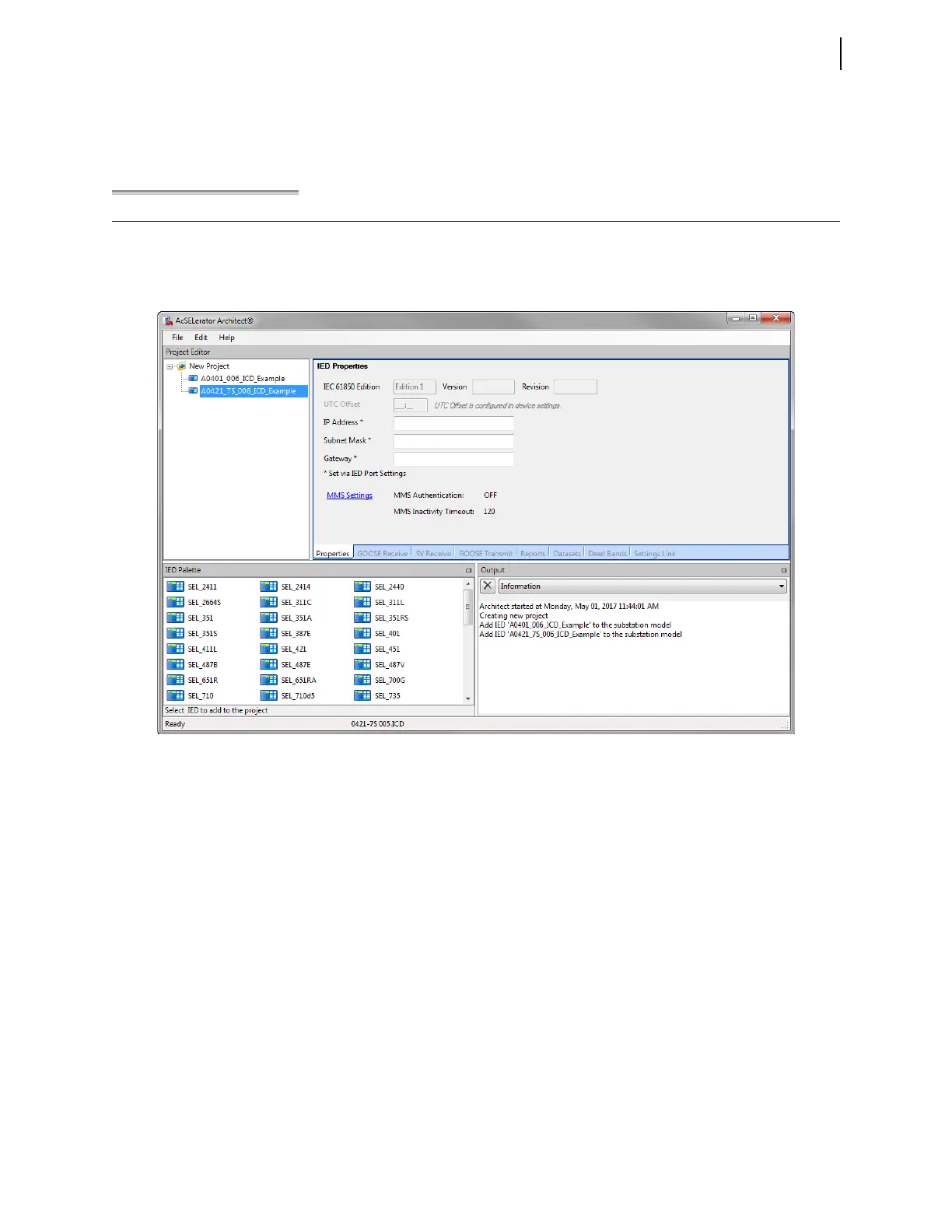

Figure 17.9 Add ICD to Project Tree
