xxvii
Date Code 20171006 Instruction Manual SEL-400 Series Relays
Preface
General Information
Logic Diagrams

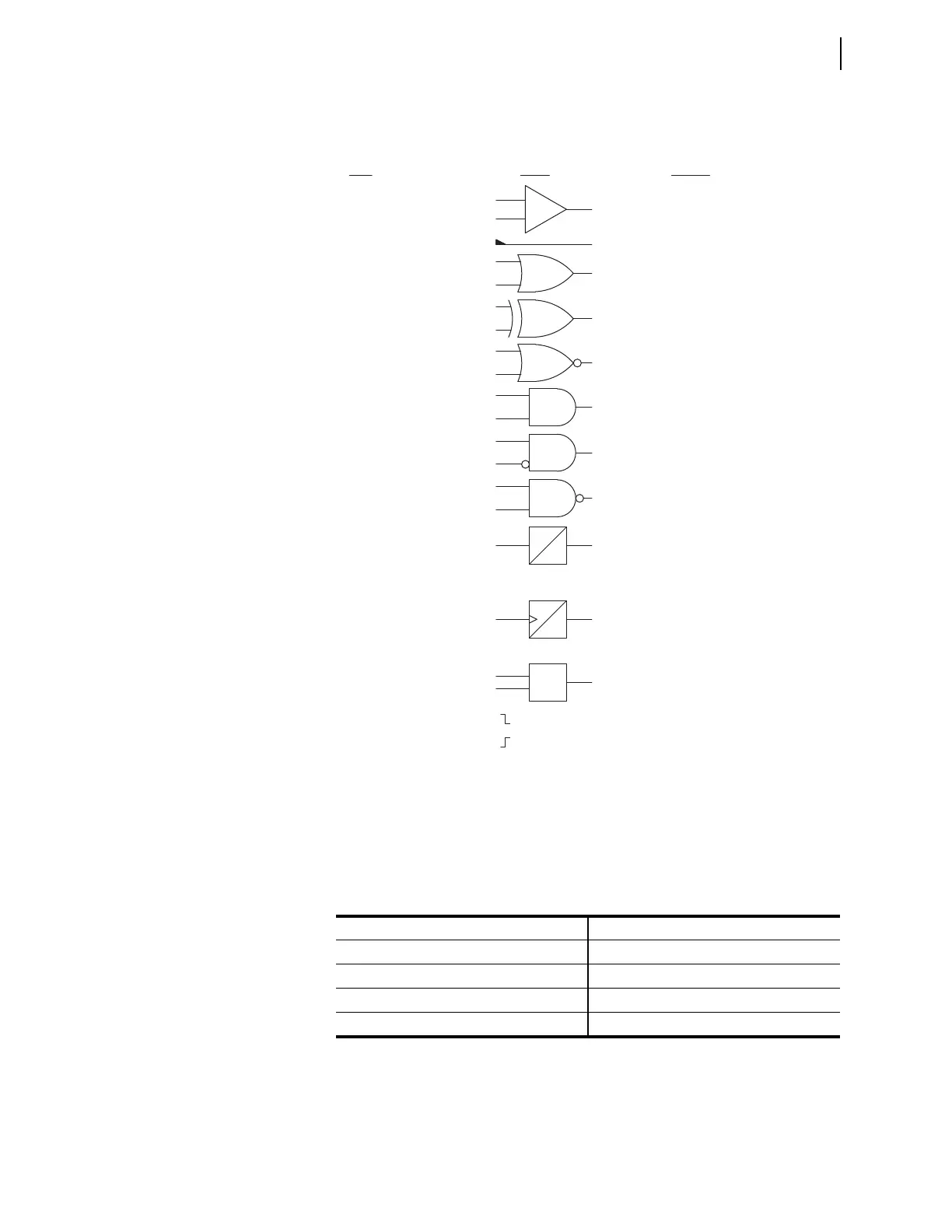

Logic diagrams in this manual follow the conventions and definitions shown below.
Trademarks
All brand or product names appearing in this document are the trademark or reg-
istered trademark of their respective holders. No SEL trademarks may be used
without written permission.
SEL trademarks appearing in this manual are shown in the following table.
EtherCAT is registered trademark and patented technology, licensed by Beckhoff
Automation GmbH, Germany.
A
B
C
C
A
B
S
R
Q
A
A
B
B
Y
X
X
Y
A
B
C
A
B
C
NAME SYMBOL FUNCTION
COMPARATOR
OR
AND
NAND
TIME DELAYED PICK UP AND/OR
TIME DELAYED DROP OUT
EDGE TRIGGER TIMER
SET RESET FLIP FLOP
Input A is compared to input B. Output C asserts
if A is greater than B.
Either input A or input B asserted cause output C
to assert.
Input A and input B must assert to assert output C.
If A and/or B are deasserted, output C is asserted.
X is a time-delay-pickup value; Y is a time-delay-
dropout value. B asserts time X after input A
asserts; B will not assert if A does not remain
asserted for time X. If X is zero, B will assert
when A asserts. If Y is zero, B will deassert when
A deasserts.
Rising edge of A starts timers. Output B will assert
time X after the rising edge of A. B will remain
asserted for time Y. If Y is zero, B will assert for a
single processing interval. Input A is ignored while
the timers are running.
Input S asserts output Q until input R asserts.
Output Q deasserts or resets when R asserts.
EXCLUSIVE OR
B
A
If either A or B is asserted, output C is asserted.
If A and B are of the same state, C is deasserted.
C
NOR
B
A
If neither A nor B asserts, output C asserts.
C
AND W/ INVERTED INPUT
B
A
If input A is asserted and input B is deasserted,
output C asserts. Inverter "O" inverts any input
or output on any gate.
C
INPUT FLAG
Input A comes from other logic.
A
—
+
B asserts at the falling edge of input A.
FALLING EDGE
A
B
RISING EDGE AB B asserts at the risin
g
ed
g
e of in
p
ut A.
ACSELERATOR Analytic Assistant
®
SEL-2407
®
AC
SELERATOR Architect
®
SELOGIC
®
AC
SELERATOR QuickSet
®
SEL Compass
®
Best Choice Ground Directional Element
®
SYNCHROWAVE
®
MIRRORED BITS
®
