280

4 Adjusting knitting machine

Working with files

5. End setting process and save changes.

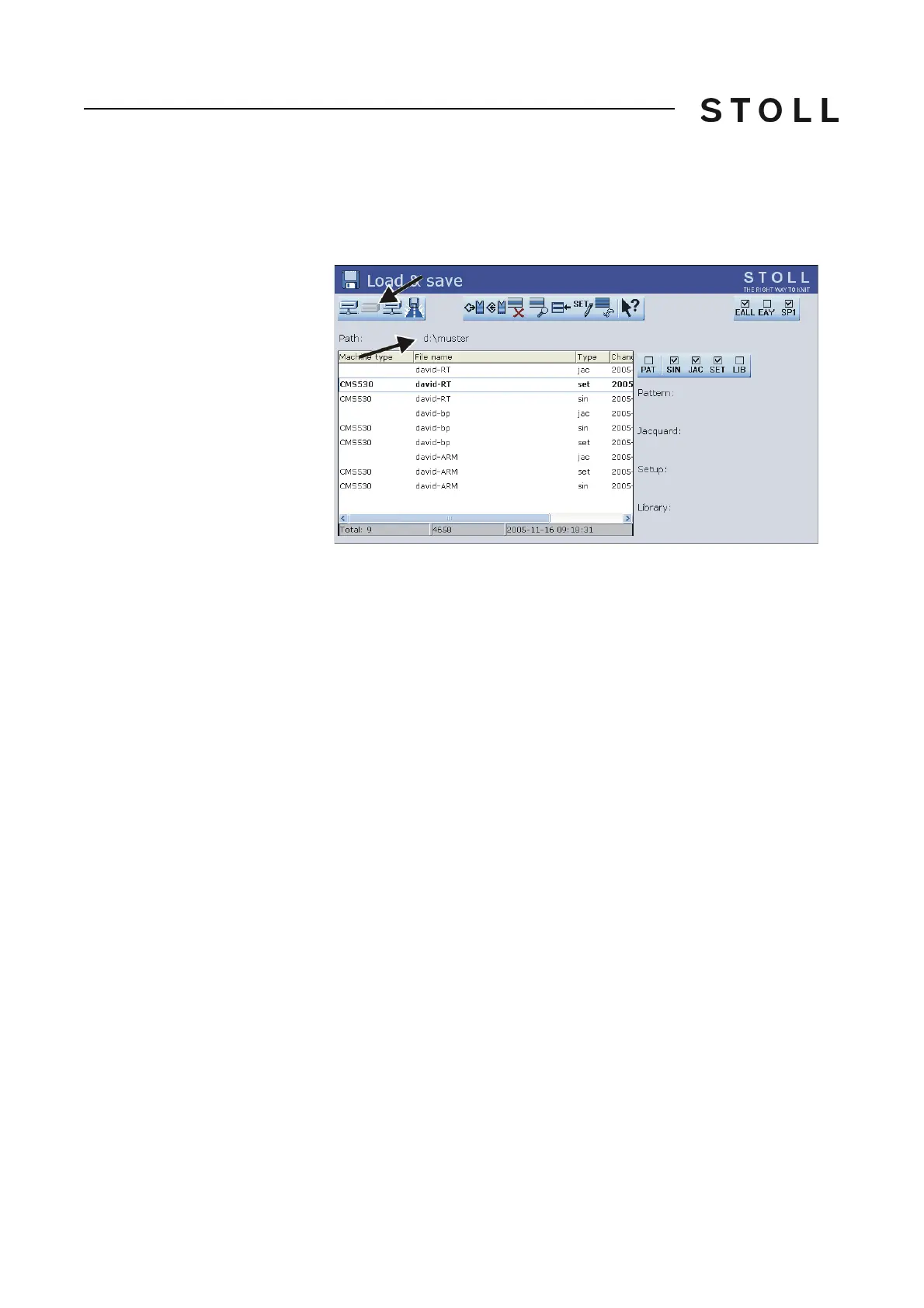

 In the "Load & Save " window, the display of the key "Direct folder

selection" is adapted to the new path. The path is displayed below it.

Display of the set path
