7 Repairing the knitting machine
Replacing parts
5. If the rear carriage part is removed, the needle detector is to be removed
as well.

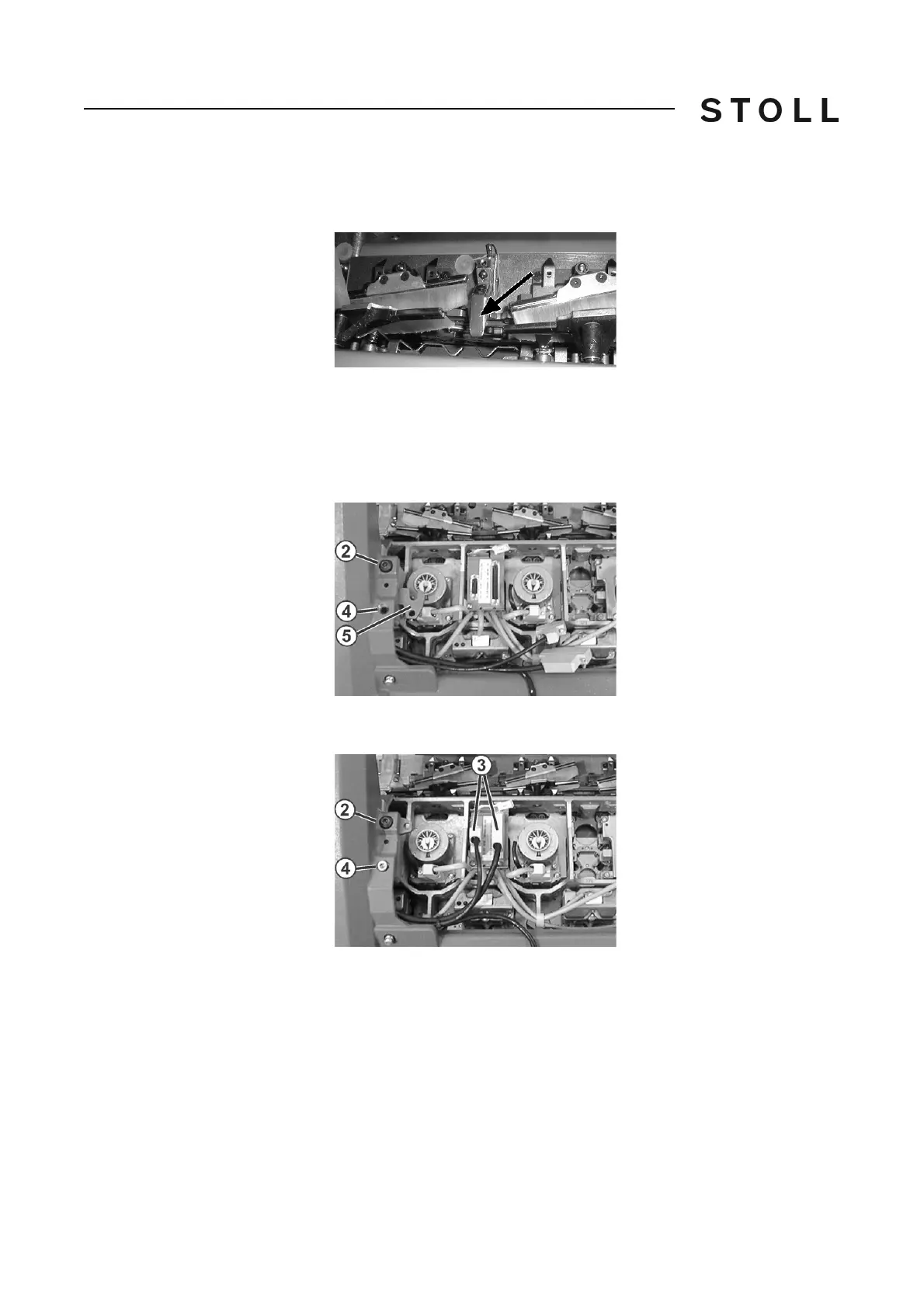

Needle detector
Needle detector
6. Mark the position of the needle detector so that it can be reassembled in
the same position.
7. Remove the suction tube on the carriage assembly.
8. Unscrew the shoulder screws (2) and screws (4) on the left and
ri
ght sides.
Swiveling plate
Swiveling plate
9. Swivel left and right swiveling plates (5) inward.
Opened carriage assembly
Opened carriage assembly
10. Loosen the screws on the plugs (3) and pull out the plugs.
11. To release the drive brake, tap the "Rel. drive brake" key.
("Main menu" -> "Manual interventions service" window, "Release driv
e
brake" key)
