X35 Monitor Air Seeder Setup
6.17
Add ECU
Button

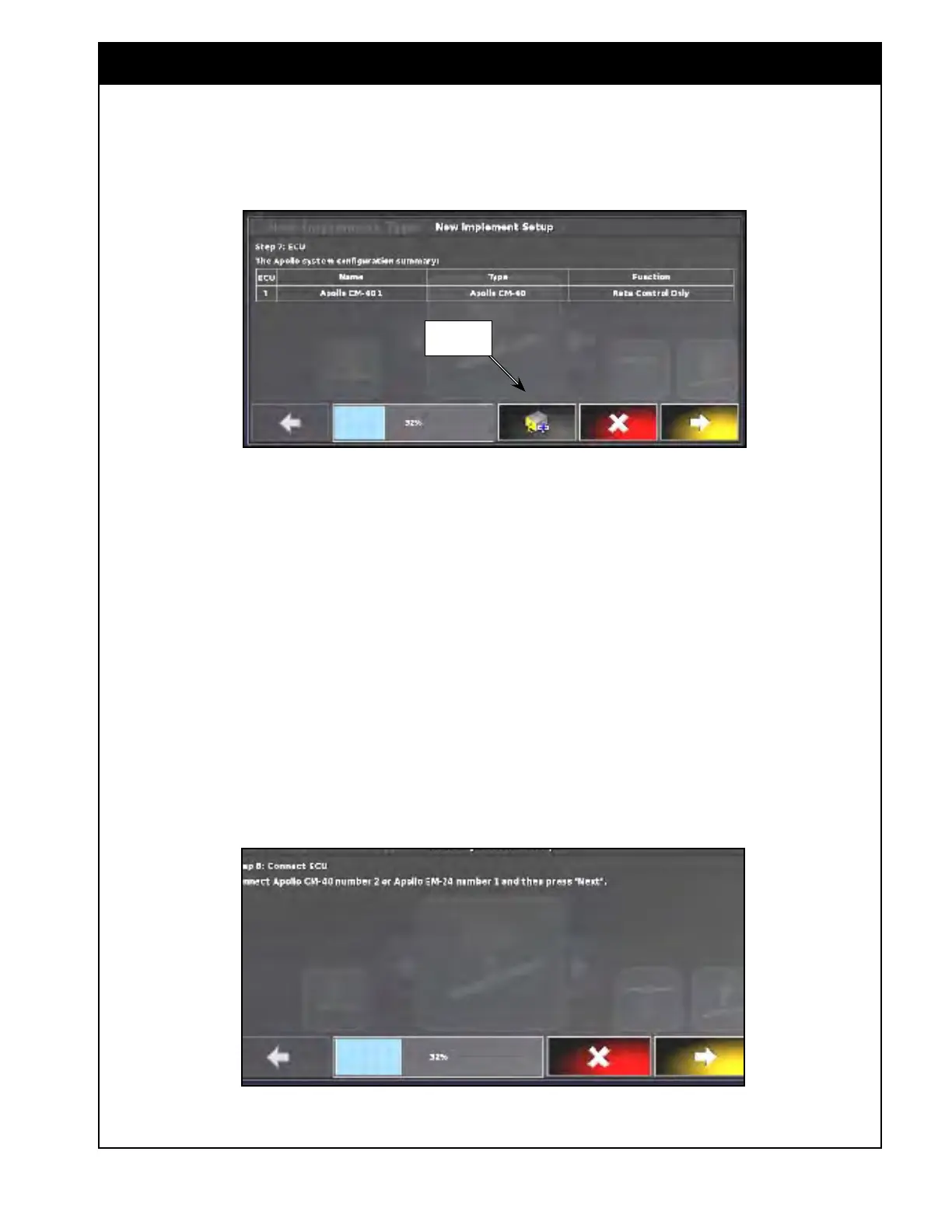

Figure 6.21 - Apollo System Configuration Summary
e. The next window will display the Apollo
system configuration summary. Refer to
Figure 6.21.
Figure 6.22 - Connect next ECU
f. If there are additional ECUs present for
this system, select the "Add ECU Button"
on the Apollo system configuration
summary window (refer to Figure 6.21).
i. The X35 will now prompt you to
connect the next ECU, follow the
order listed in the chart shown
previously, refer to Figure 6.22.
Connect ECU
connector and select
Next.
ii. The X35 will try to detect the
connected ECU and will display
a confirmation once the ECU is
detected. The updated Apollo system
configuration summary will then be
displayed.
iii. Repeat
this step until all ECUs are
connected and detected.
