X35 Monitor Air Seeder Setup
6.29
ECU
connections
Identification of ECU
by X35 console
Tanks #1-4 Apollo CM-40 1
Tanks #5-6 Apollo CM-40 2
Granular ASC Apollo EM-24 1
NH3/Liquid ASC Apollo EM-24 2, or EM-24 1
if no granular ASC
Pack Master Control Apollo CM-40 3, or CM-40
2 if only 4 or less tanks
Blockage monitoring Apollo EM-24 3, or EM-24 2
if only granular ASC or only
NH3/Liquid ASC, or EM-24
1 if no ASC
Drill Fold (3420 only) Drill Fold ECU
These ECUs are required
based on the factory profile
selected. They will be listed
and will need to be detected
(Replaced in the profile).
These ECUs are
optional and need to be
added into the profile
(Add NEW ECUS).

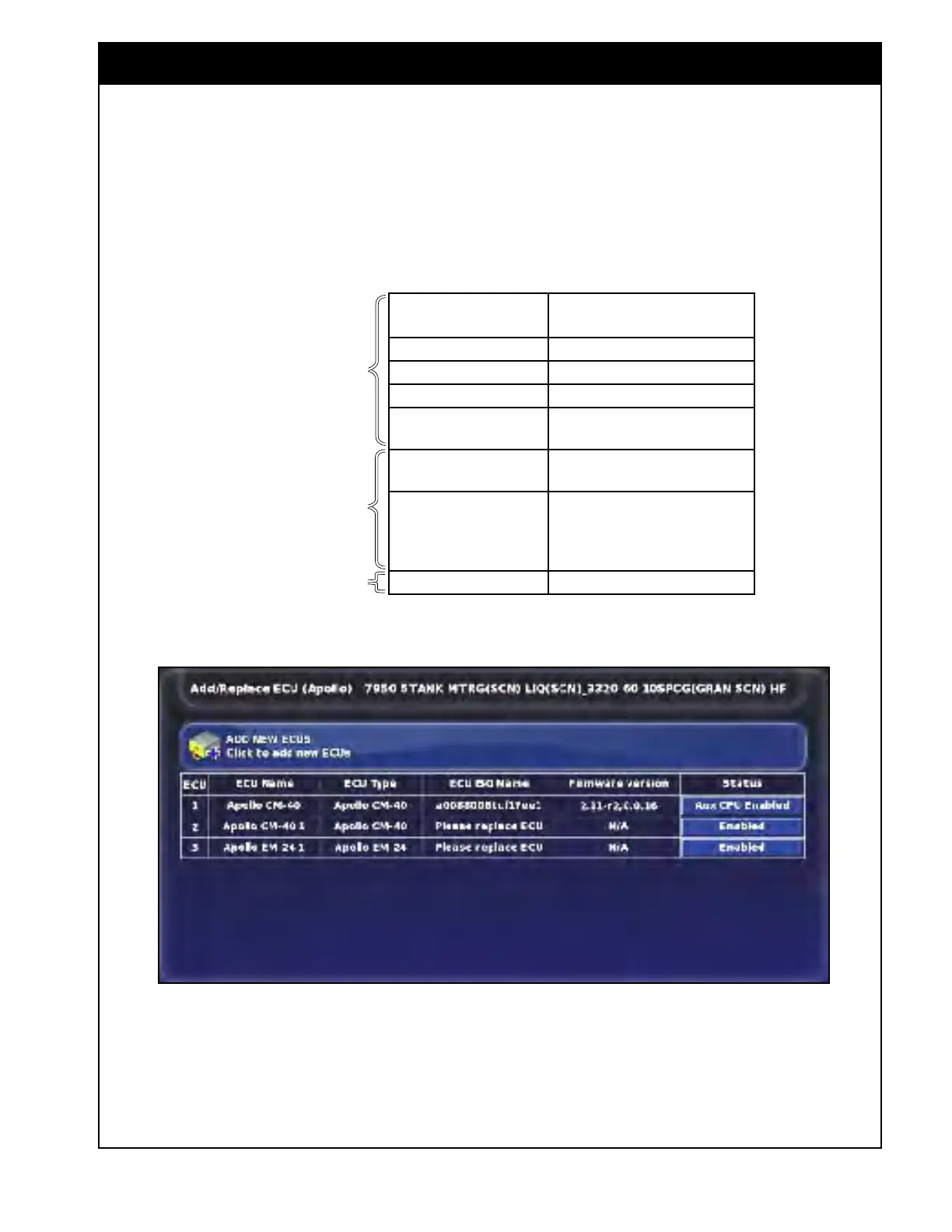

Figure 6.39 - ECU Summary Table
This ECU is automatically recognized
as part of the factory profile. It does
not need to be detected.
To Next Page
