Wartsila RT-flex50-D User Manual

Maintenance
3146−1/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
3/ 5
Remark: Pay attention to General Guidelines for Lifting Tools 0012−1.
⇒ Screw RUD-eye bolts ’RC’ into cylinder upper part 4.

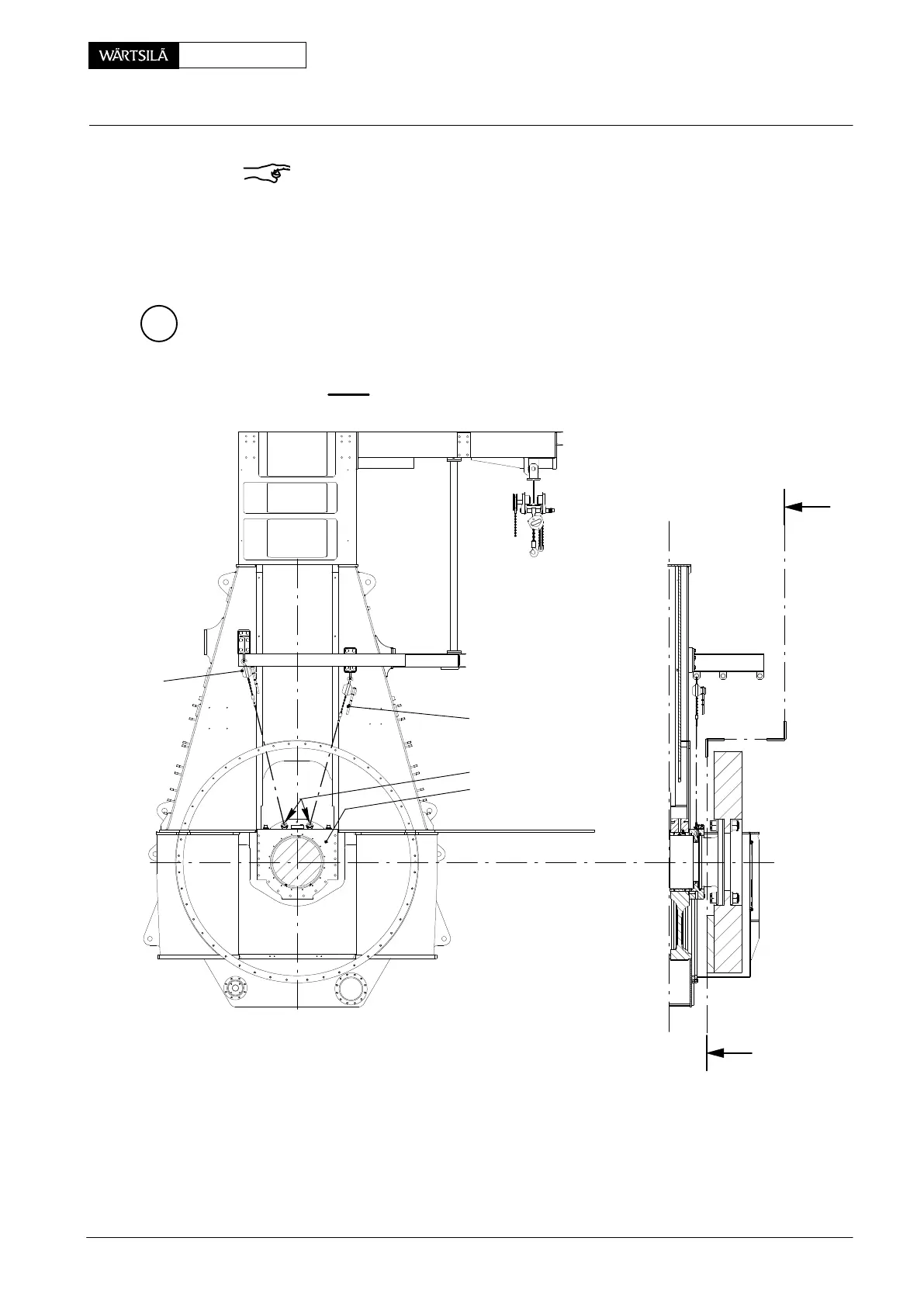

⇒ Connect ropes ’a’ and ’b’ with lifting tackles ’HZ’ and RUD-eye bolts ’RC’ as
shown in figure below.
C
I
I
I - I
HZ
HZ
RC
ab
4
016.608/08
2010
Axial Damper: Dismantling and Assembling
