Maintenance3146−1/A1 RT-flex50-D
Wärtsilä Switzerland Ltd
4/ 5

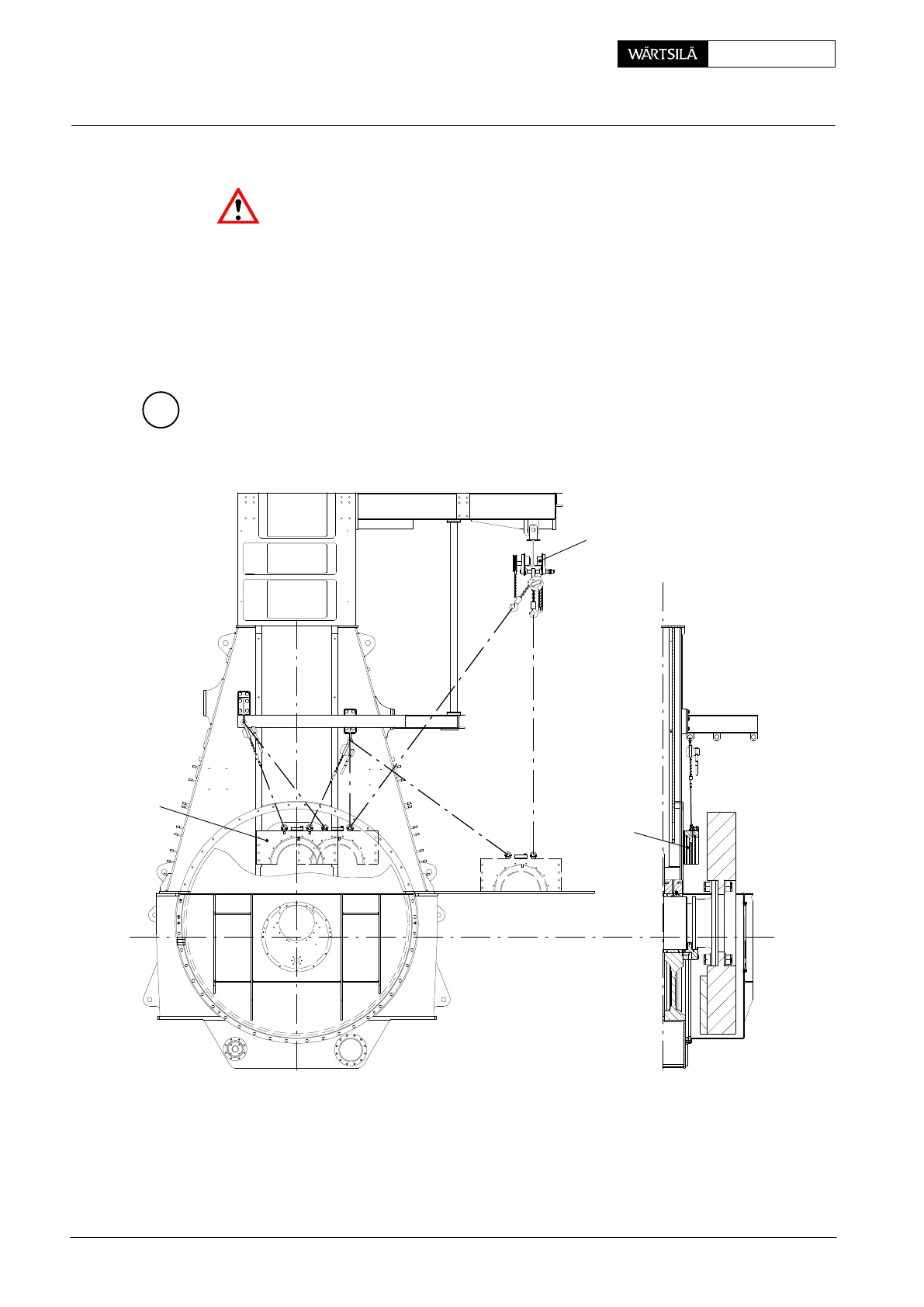

⇒ Carefully lift cylinder upper part 4 using ropes ’a’ and ’b’.
Attention! When lifting make sure that the cylinder upper part slides out of 2-part
gaskets 11 and 13 without jamming, as otherwise the gaskets risk being dam-
aged.
⇒ Connect rope ’c’ with spur-geared chain block 18 to cylinder upper part and
pull it to fuel side as shown in Fig. ’D’.
⇒ Turn 2-part gaskets 11 and 13 until their tension springs 10 and 12 can be un-
hooked.
⇒ Remove tension springs and gaskets.
D
ab c
016.609/08
18
4
4
2010
Axial Damper: Dismantling and Assembling
