Wartsila RT-flex50-D User Manual

Maintenance
3303−4/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
3/ 7

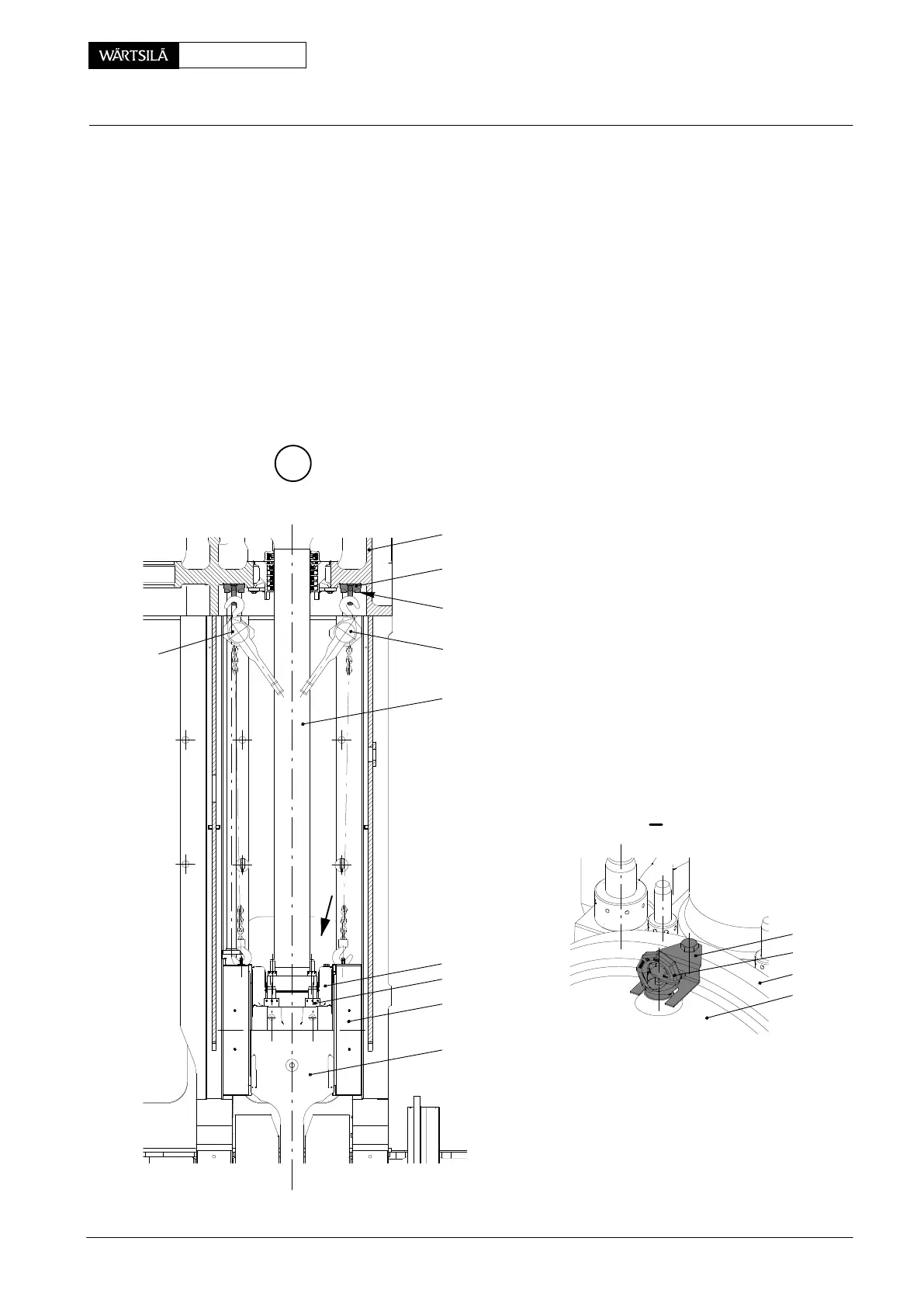

2.2 Lifting the crosshead with piston in situ
⇒ Loosen and remove all four nuts 7 of the connecting rod studs to top end bea-
ring as instructed in 3303−1.
⇒ Fasten stop plate 94370h to bearing cover 8 and guide shoe 9.
⇒ Screw RDU-eye bolts ’RC’ into guide shoe 9.
⇒ Fasten lifting rings 94332 to cylinder block 11 with screws 12 and tighten these
with 200 Nm.
⇒ Connect lifting tackles ’HZ’ (lifting capacity 1500 kg each) to the lifting rings
and RDU-eye bolts ’RC’.
D
013.021/05
HZ
4
8
9
2
94370
h
RC
8
9
7
94332
11
12
HZ
FREE END
I
I
2010
Connecting Rod: Removal and Fitting
