Maintenance3303−4/A1 RT-flex50-D
Wärtsilä Switzerland Ltd
4/ 7

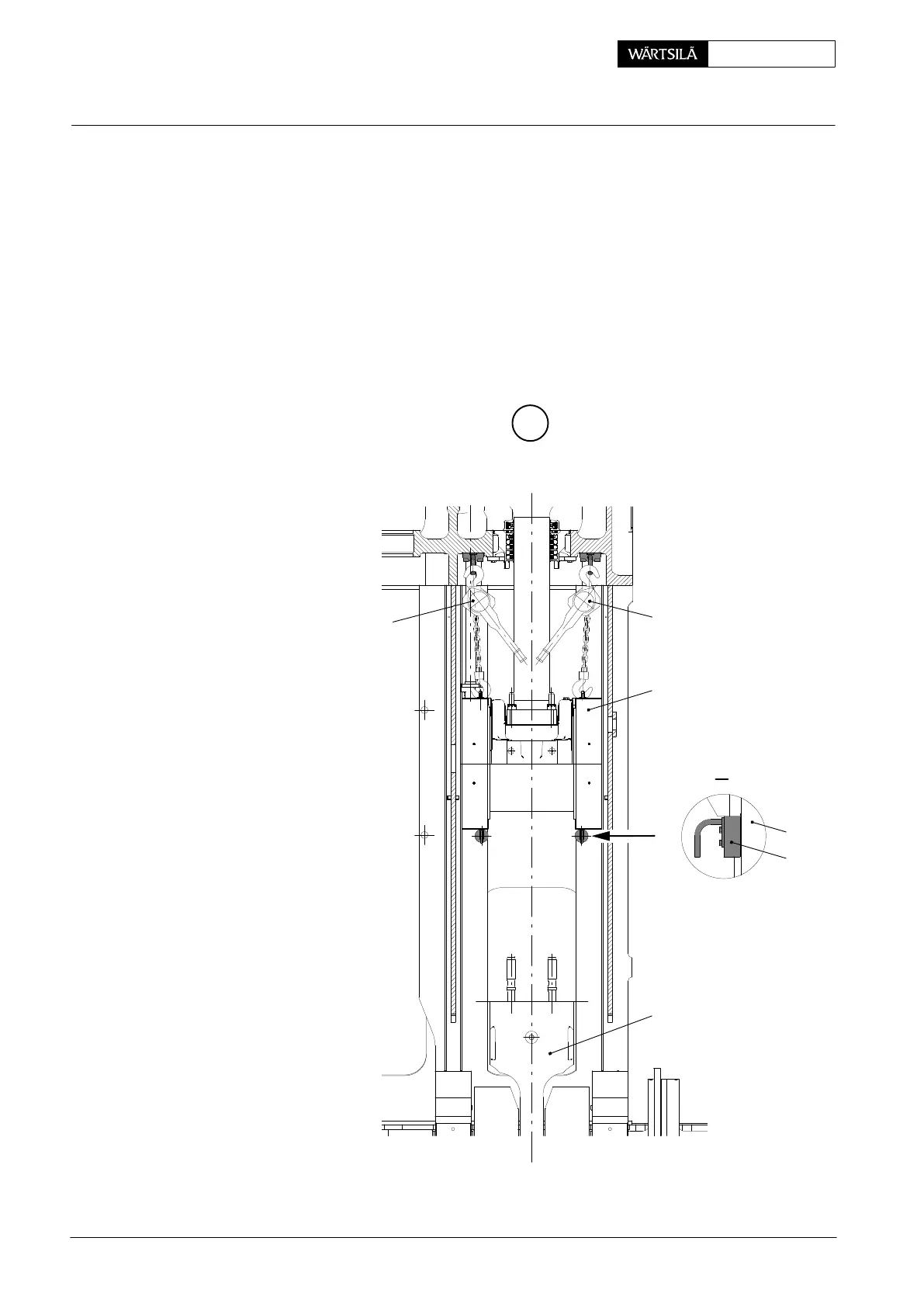

⇒ Lift crosshead pin 3 beyond the lower bores in guide ways 10 provided for re-
taining pins 94323.
⇒ Insert four retaining pins into the guide ways.
⇒ Carefully relieve lifting tackles ’HZ’ till the guide shoes come to rest on the re-
taining pins.
If, however, not all retaining pins touch the guide shoes, turn them such that
their eccentrics contact the guide shoes.
⇒ Disconnect and remove the lifting tackles ’HZ’.
E
013.035/05
HZ
HZ
2
9
10
9432
3
I
I
2010
Connecting Rod: Removal and Fitting
