Wartsila RT-flex50-D User Manual

Maintenance
3326−2/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
3/ 7
⇒ Provide wooden underlay ’HU’ in the lower corner of the column as shown in
Fig. ’C’.
⇒ Direct the connecting rod towards exhaust side with lifting tackles H
1
and H
2
(Fig. ’B’) as far as to ensure that it can not tilt back to fuel side.
⇒ Remove lifting tackle H
2
and the corresponding RUD-eye bolt ’RC’ and slowly
swivel the connecting rod until it rests on wooden underlay ’HU’.
⇒ Remove lifting tackle H
1
. Lower the crosshead pin closely above the crank-
shaft (Fig. ’D’).

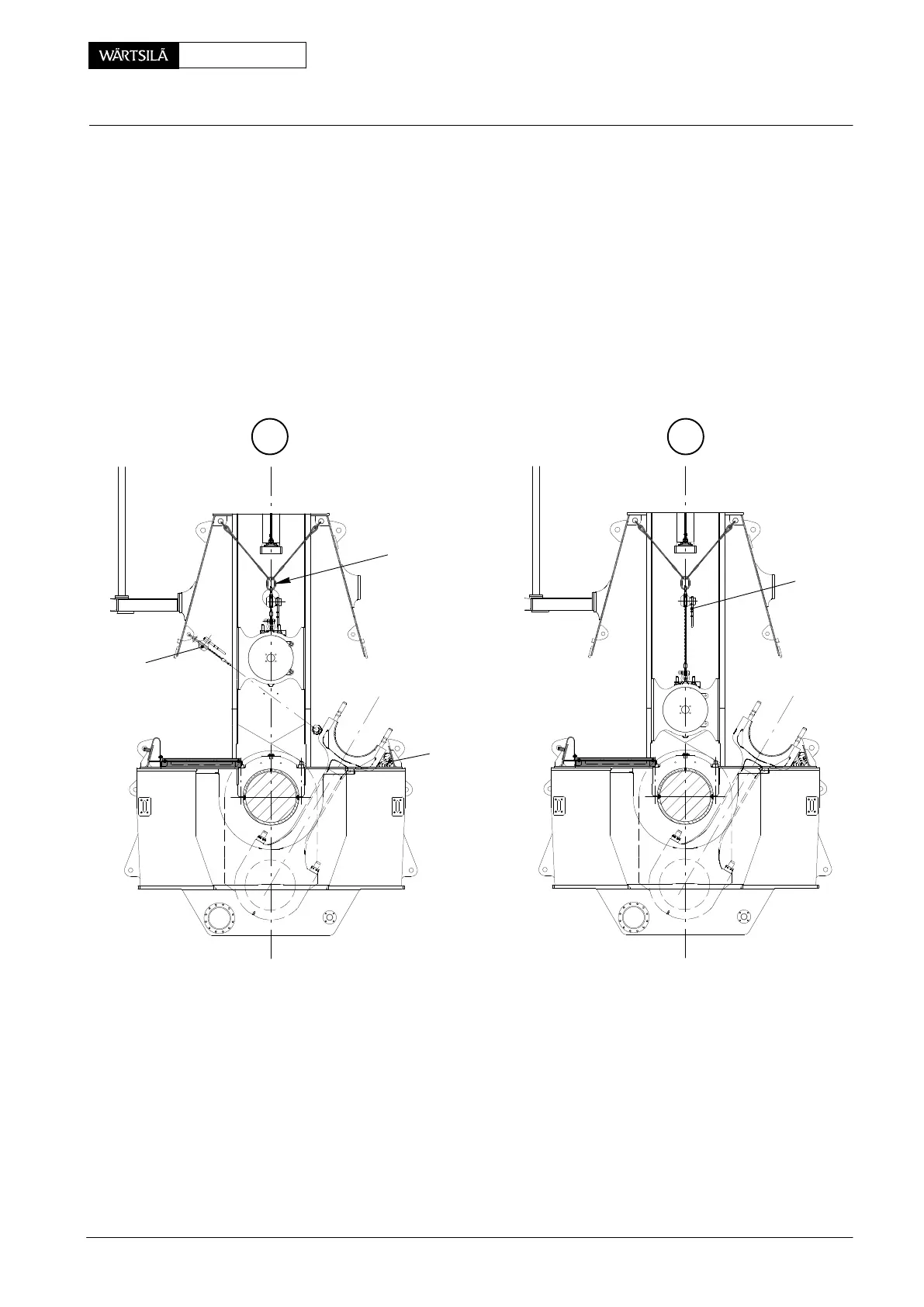

C D
013.239/05 013.240/05
94666
H
1
HU
HZ
2010
Removal and Fitting of a Crosshead Pin
