Wartsila RT-flex50-D - Page 406

Maintenance6708−1/A1 RT-flex50-D
Wärtsilä Switzerland Ltd
8/ 10
018.329/09
K
x
H
2
94667e
H
3

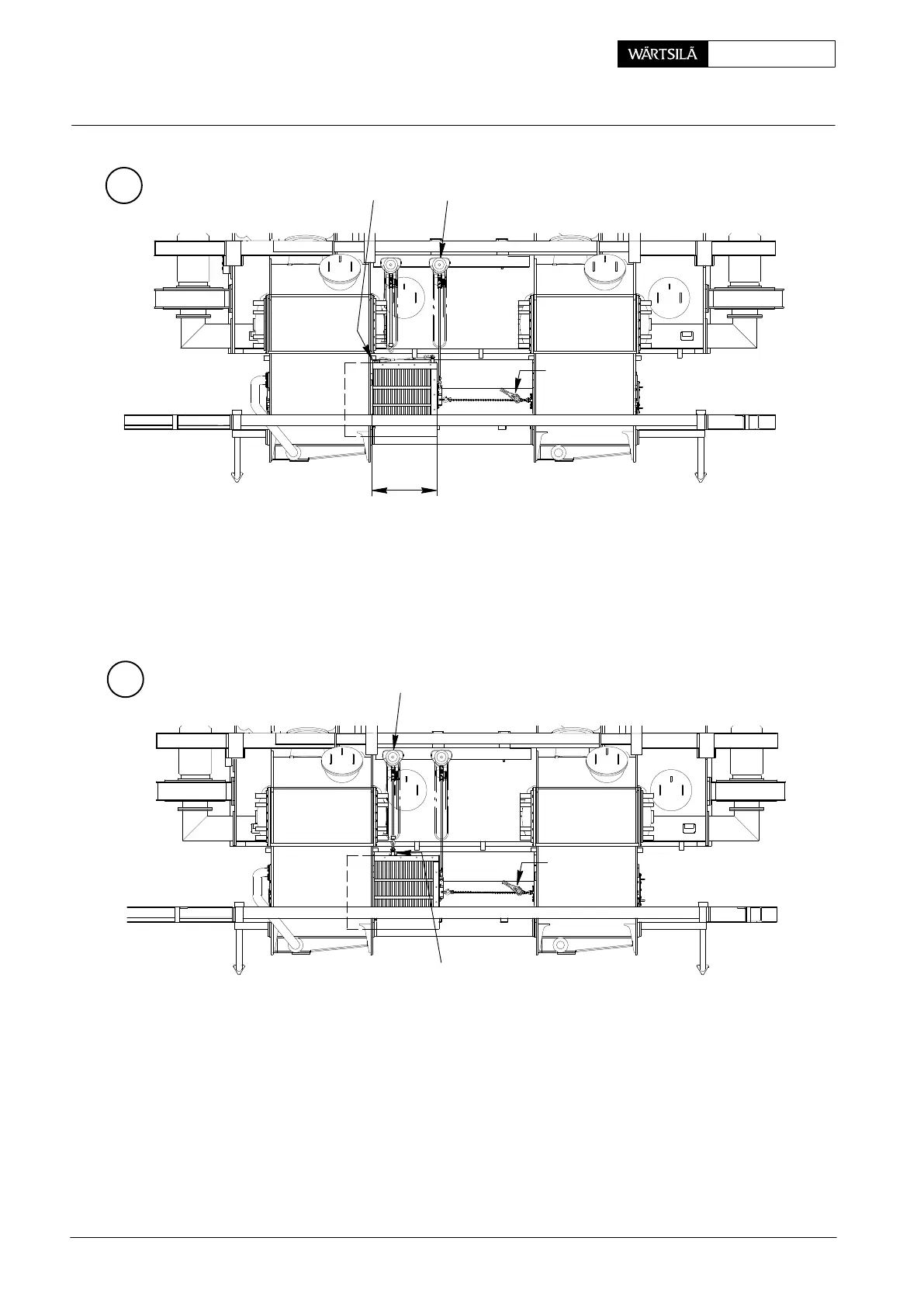

⇒ Using manual ratchet H
3
(WLL 800 kg) pull out water separator 3 from the re-
ceiver by approx. ’x’ = 860 mm, i.e. slightly more than half of the water separa-
tor. Continuously follow with spur-geared chain block H
2
adjusting the height
accordingly till the wire rope of limiter 94667e is tensioned.
018.330/09
L
H
1
94667b
H
3
⇒ Dismantle limiter 94667e with its wire rope.
⇒ Remove lifting tool 94667b, refit it in the middle of the water separator and
hook spur-geared chain block H
1
in the mentioned tool.
2010
Removal and Fitting of Water Separator
