OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
Alcatel-Lucent

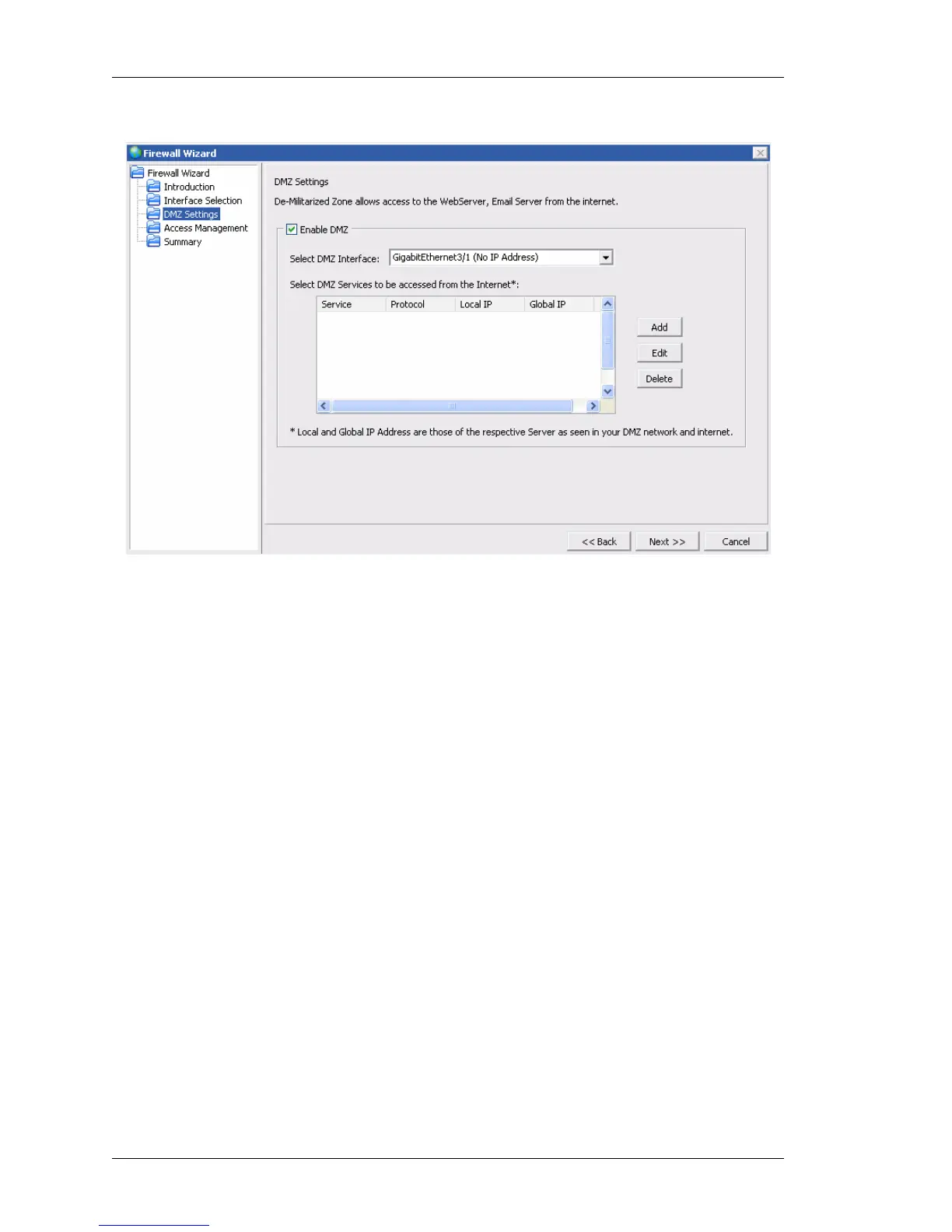

Figure 78: Firewall: Firewall Wizard - DMZ Settings
DMZ Settings for a firewall policy is optional.
In the wizard, by default, DMZ is enabled. Unselect the Enable DMZ check
box, and click Next to continue firewall policy configuration without configuring
DMZ settings.
Or
To configure DMZ settings, follow the procedure given below.
1. Select the DMZ interface from the Select DMZ interface drop-down list. If a policy
is already attached to the selected interface, the system prompts you a message.
2. Add the DMZ service/s to be accessed through the internet. Click Add. Add DMZ
Services pop up window is displayed:
You have to add at least one DMZ service.
