OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
Alcatel-Lucent
DHCP P
OOL OPTIONS
Step 1: Click Add in the DHCP Server page. Add DHCP Pool pop up window is
displayed. This window has two tabs: DHCP IP Address and Options. By default,
DHCP IP Addresses tab is selected.
Step 2: Select Options tab. DHCP Options window is displayed. This window
allows you to configure DHCP Options to a specific pool.
1. Enter the name for the DHCP pool in the DHCP Pool Name field.
2. Select the VRF check box, and select the VRF from the drop-down list. If the VRF
name is specified, it configures the DHCP pool in the specified VRF. If the VRF is
not specified, the pool is configured for the Default VRF.

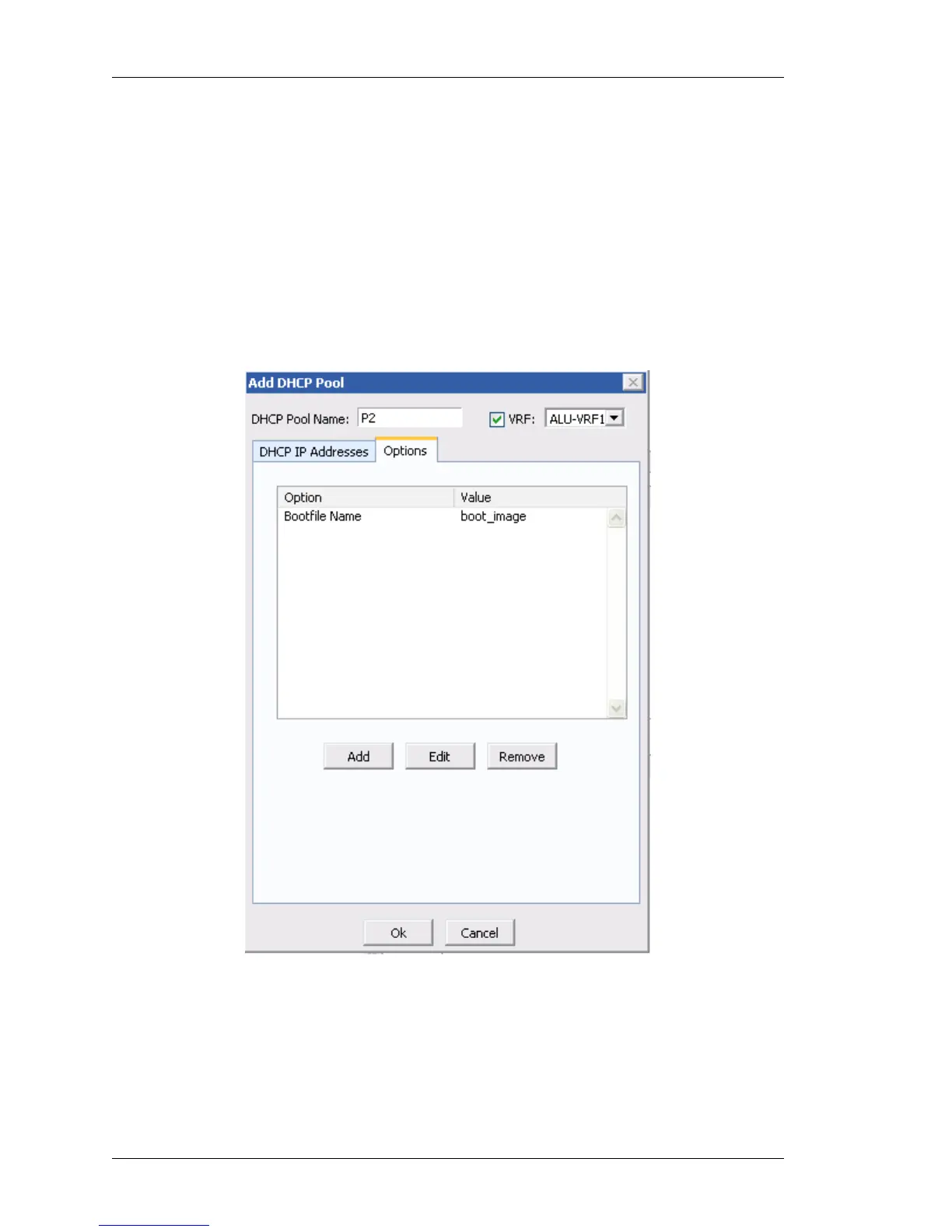

Figure 43: DHCP Server - Add DHCP Pool - Options
