F
RAME RELAY ENCAPSULATION
Frame Relay (FR) is a high performance WAN protocol that operates at the
physical and data-link layers of the OSI reference model. This protocol was
originally designed for use across ISDN interfaces but today it is used over a
variety of other network interfaces as well. Frame-relay is a strictly layer 2 protocol
suite which enables it to offer high performance and greater transmission
efficiency. This makes Frame Relay suitable for current WAN applications like
LAN interconnection.
1. Set the Frame Relay encapsulation on the interface by selecting Frame Relay
radio button under Encapsulation. The following page displays the Frame Relay
parameters:

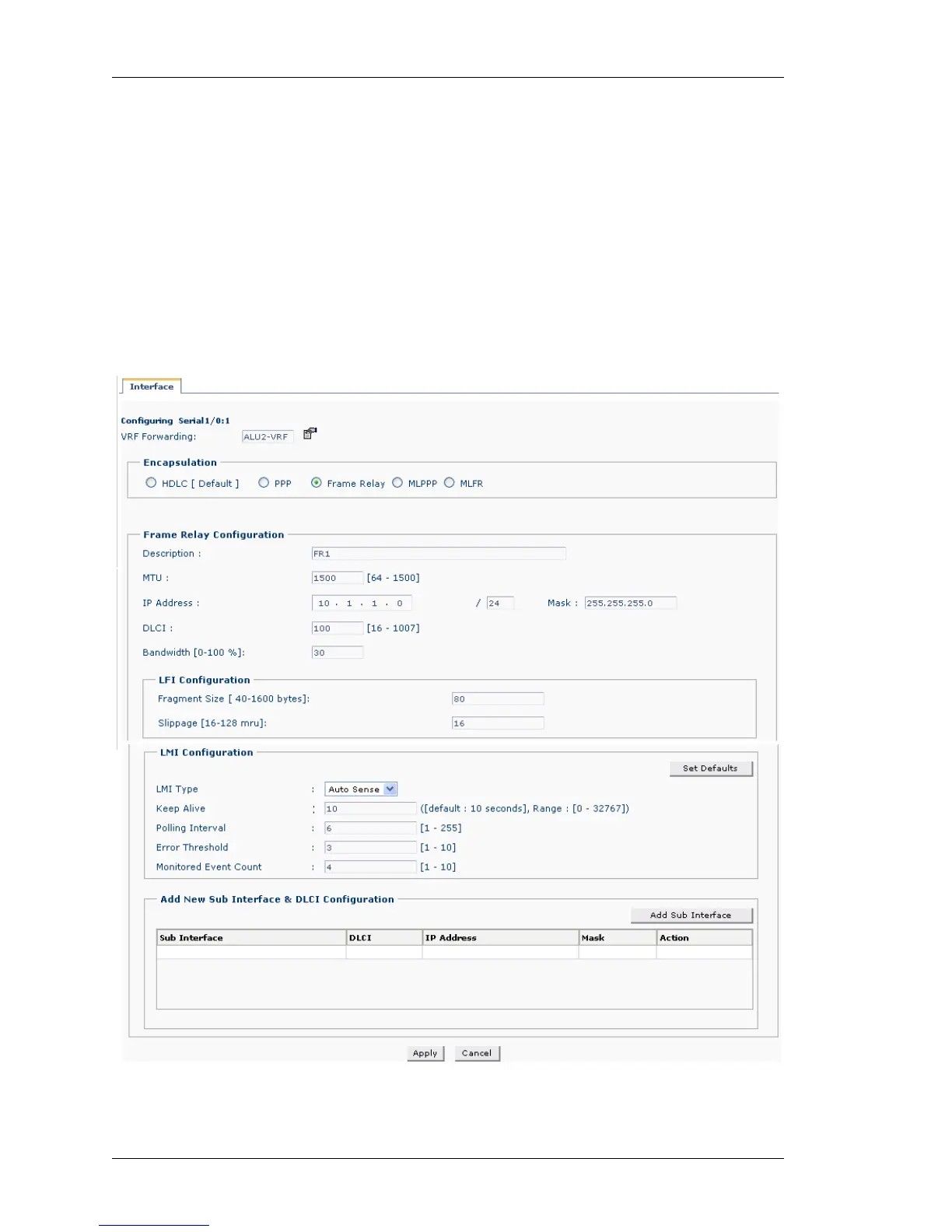

Figure 21: Interfaces - Configure Frame Relay Encapsulation on a
Channelized Serial Interface
