INTERFACE STATISTICS
The Interface page displays the details of all the interfaces configured on the
OmniAccess 5740 USG.
V
IEWING INTERFACE STATISTICS
Follow the procedure below to view the Interface statistics.
Step 1: Launch the Web GUI tool.
Step 2: From the USGM menu bar, click Monitor. All submenu/links under
Monitor are displayed in the left navigation panel.
Step 3: Click Interface Statistics sub-menu.
Interfaces page displays the details of all the interfaces configured on the system
in the center panel.

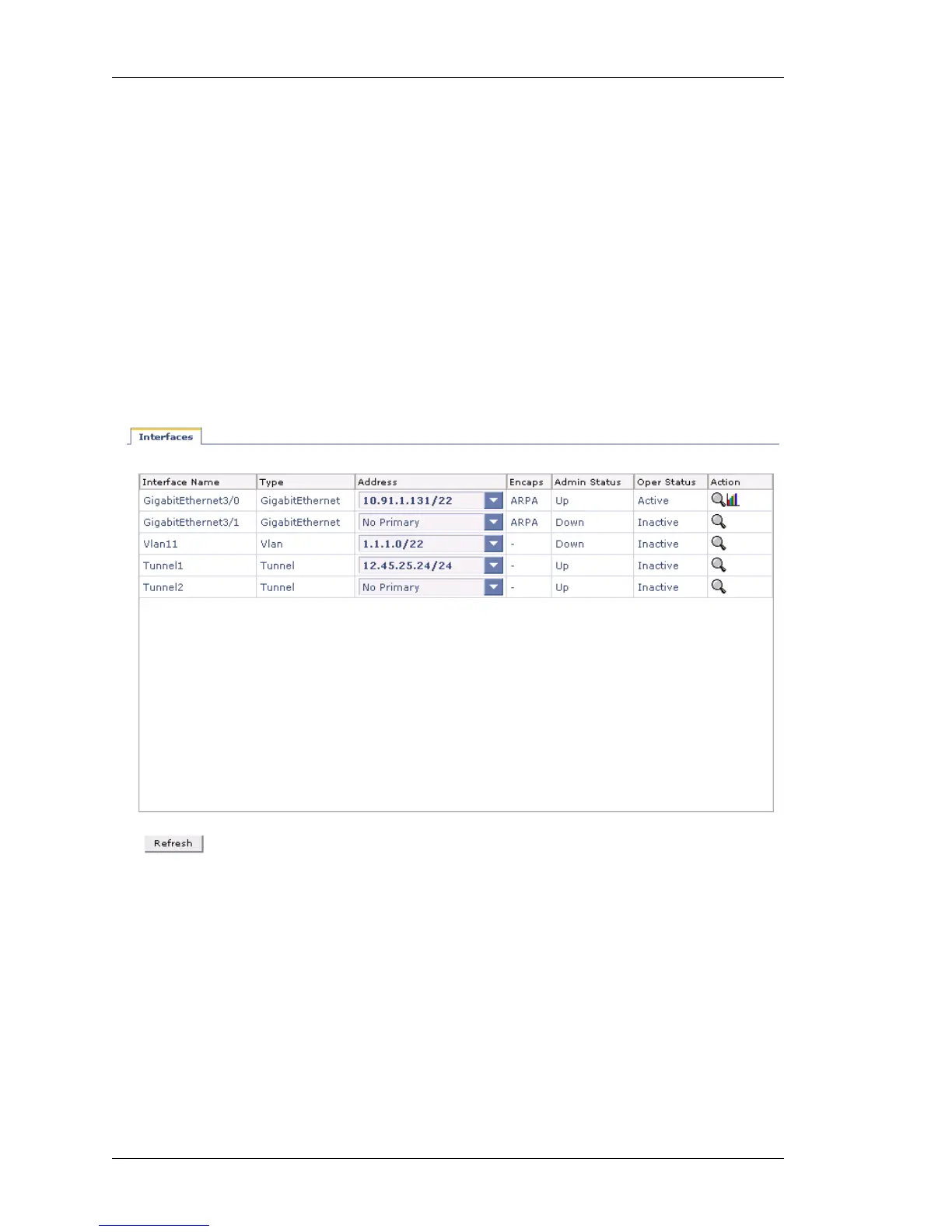

Figure 207: Monitor: Interfaces Statistics
