OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
FIREWALL POLICY
This page displays the Firewall Policies configured in the system.
V
IEWING FIREWALL STATISTICS
Follow the procedure below to view the firewall policies statistics.
Step 1: Launch the Web GUI tool.
Step 2: From the USGM menu bar, click Monitor. All submenu/links under
Monitor are displayed in the left navigation panel.
Step 3: Click Firewall and Security sub-menu.
The Firewall and Security has four tabs: Filters, NAT, DOS Attack and Firewall
Policy. Select Firewall Policy tab. Firewall Policy page is displayed in the center
panel with the statistical information of all the firewall policies configured in the
system.
Step 4: Select the Firewall Policy whose statistical information is to be viewed
from the Firewall Policy Name drop down list. The Firewall Policy page displays
the all the Firewall Policy information for the selected filter.

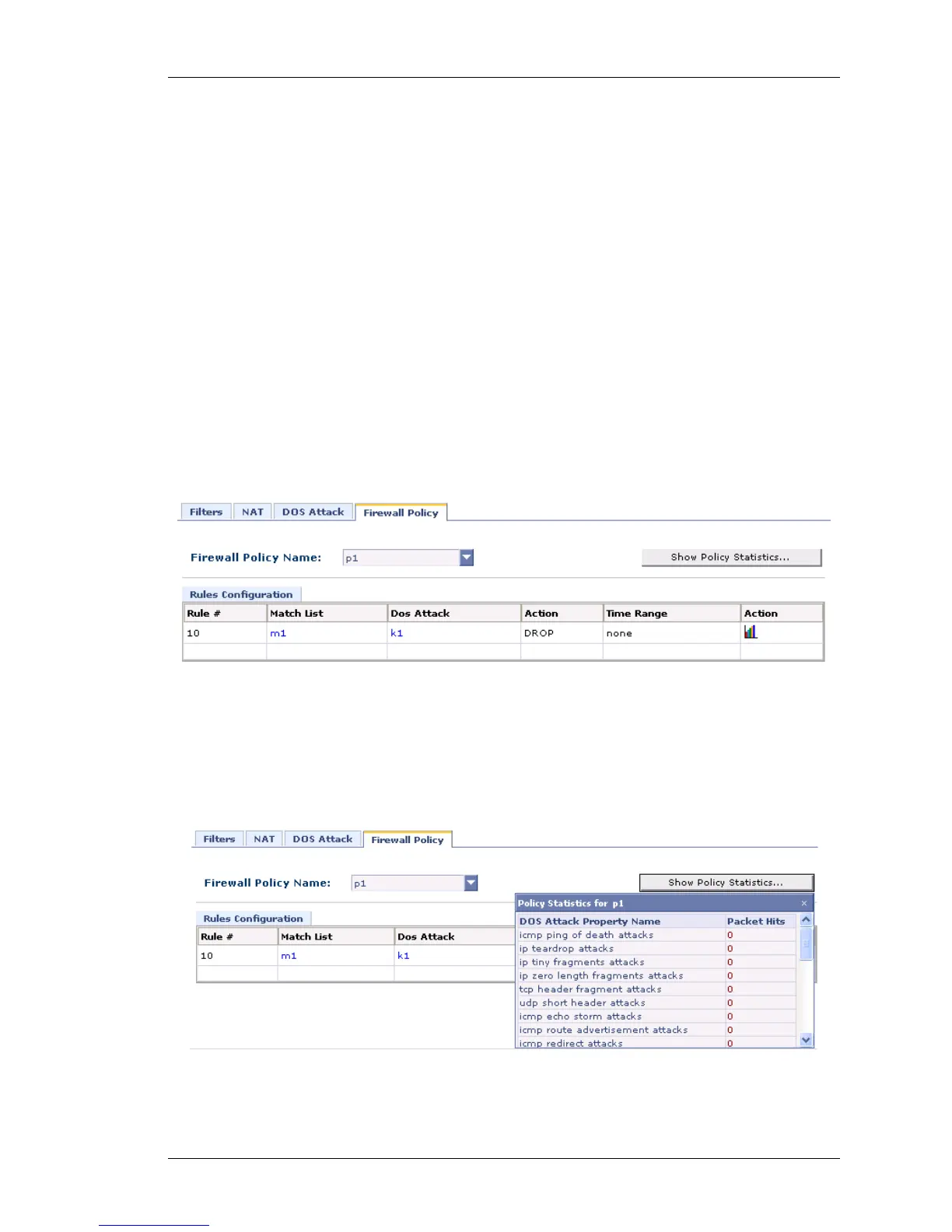

Figure 223: Monitor: Firewall and Security - Firewall Policy
Step 5: Click Show Policy Statistics. This displays the firewall policy statistics
for the selected firewall policy in a pop up window.
Figure 224: Firewall and Security - Firewall Policy - Show Policy Statistics
