OS CONFIGURATION WIZARD
This wizard allows you to configure QoS policies for Branch Office in few easy
steps.
QoS Wizard allows you to configure Auto Qos or QoS policy map (customized
QoS policy) and associate it to an interface.
The wizard creates a policy with the following classes:
• Voice Class - To handle Real-time traffic (like RTP).
• Business Critical Class - To handle enterprise traffic (like SNMP, SSH, Telnet).
• Network Control Class - To handle routing traffic (like OSPF, BGP).
• Best Effort - To handle the traffic that does not fall under the above three classes.
You can associate link bandwidth for each of these classes. Depending on the
bandwidth distribution for each of the classes, a QoS policy map is generated that
controls the traffic flow for the selected interface.
V
IEWING QOS WIZARD
Step 1: Launch the Web GUI tool.
Step 2: From the USGM menu bar, click Configure. All submenu/links under
Configure are displayed in the left navigation panel.
Step 3: Click Quality of Service sub-menu.
Quality of Service has four tabs: QoS Wizard, Class Map, Policy Map, and
Interface Association. By default, QoS Wizard tab is selected and QoS Wizard
window is displayed in the center panel.

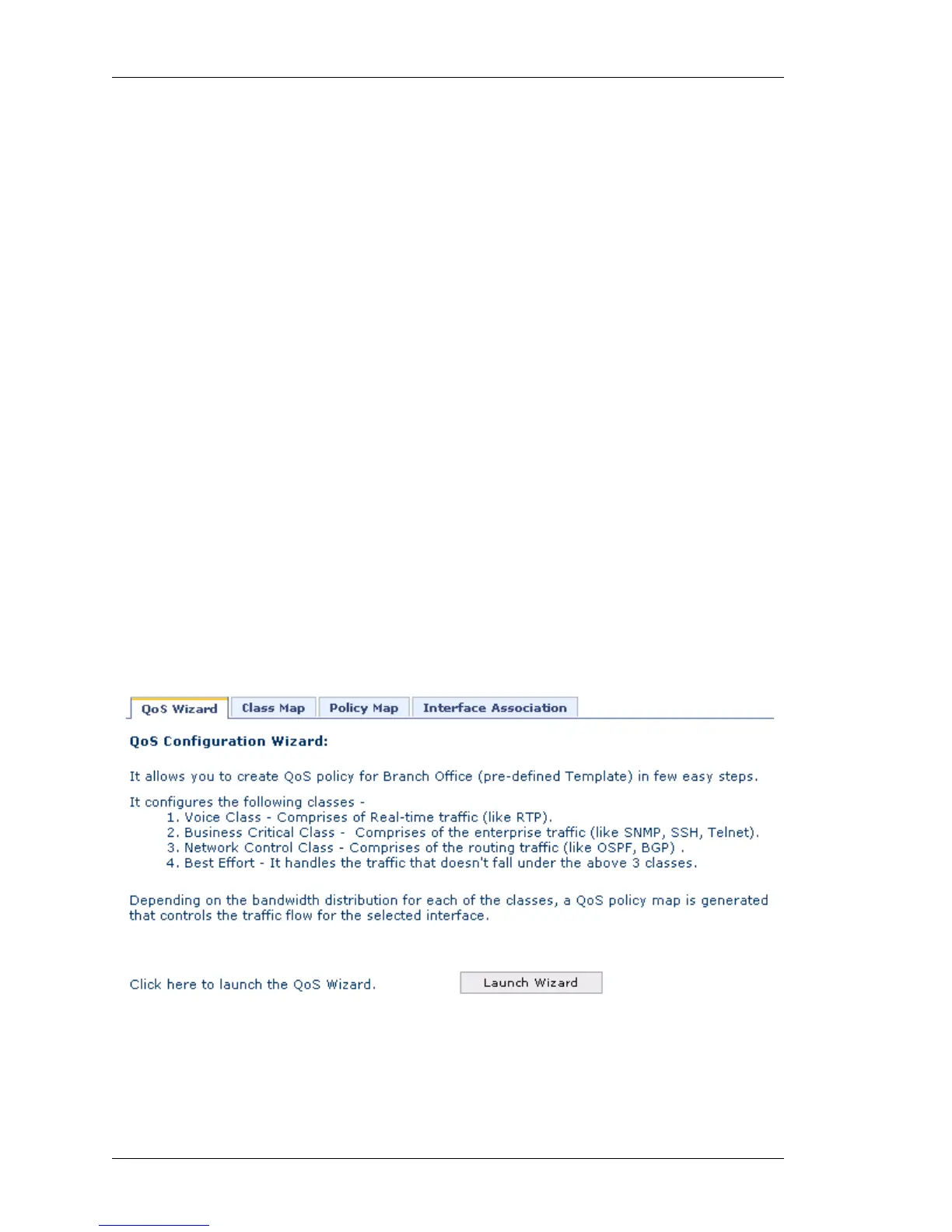

Figure 152: Quality of Service: QoS Wizard
