OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
FIREWALL SESSION STATISTICS
This page displays the Firewall Session Statistics. The Firewall Session Summary
section displays information about the different sessions maintained by the
Firewall module. The Firewall Session Details section displays detailed
information about each of these sessions.
V
IEWING FIREWALL SESSION STATISTICS
Follow the procedure below to view the Firewall Session statistics.
Step 1: Launch the Web GUI tool.
Step 2: From the USGM menu bar, click Monitor. All submenu/links under
Monitor are displayed in the left navigation panel.
Step 3: Click Firewall Session Statistics sub-menu.
Firewall Session Statistics page displays the Firewall Session summary and the
details table in the center panel.

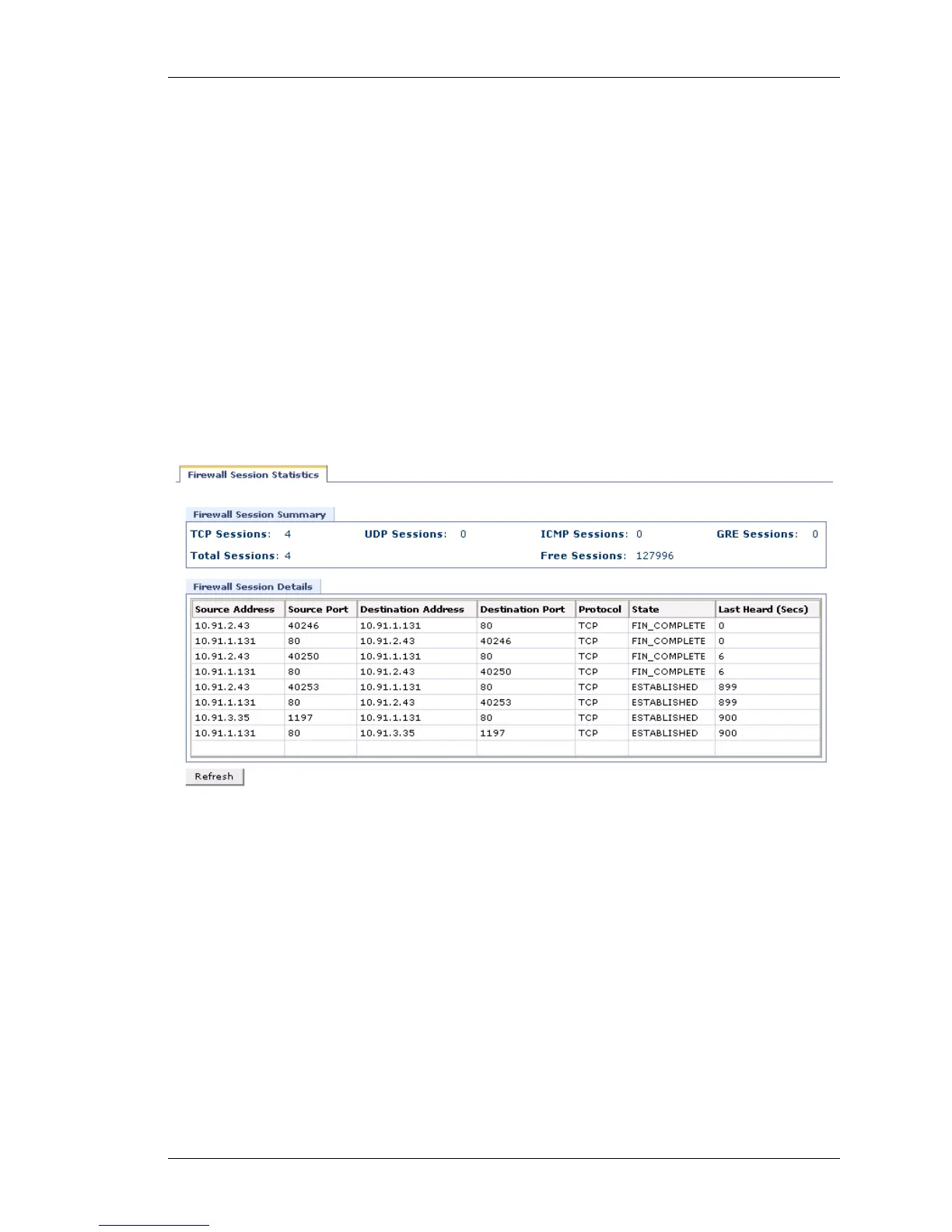

Figure 215: Monitor: Firewall Session Statistics
