OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
ASSOCIATE POLICY TO AN INTERFACE
You can attach a Filter, NAT, Firewall, QoS, Transparent Firewall, Policy Based
Routing, and IPSec policies on the selected interface if these policies are already
configured in your OmniAccess 5740 USG.
Steps to configure these individual policies are explained in detail in the
later sections of this document.
Follow the procedure given below to attach policy to an interface:
Step 1: In the Interfaces page, click Policy icon against the interface to which
policy/policies is to be attached. Policy Association page is displayed.

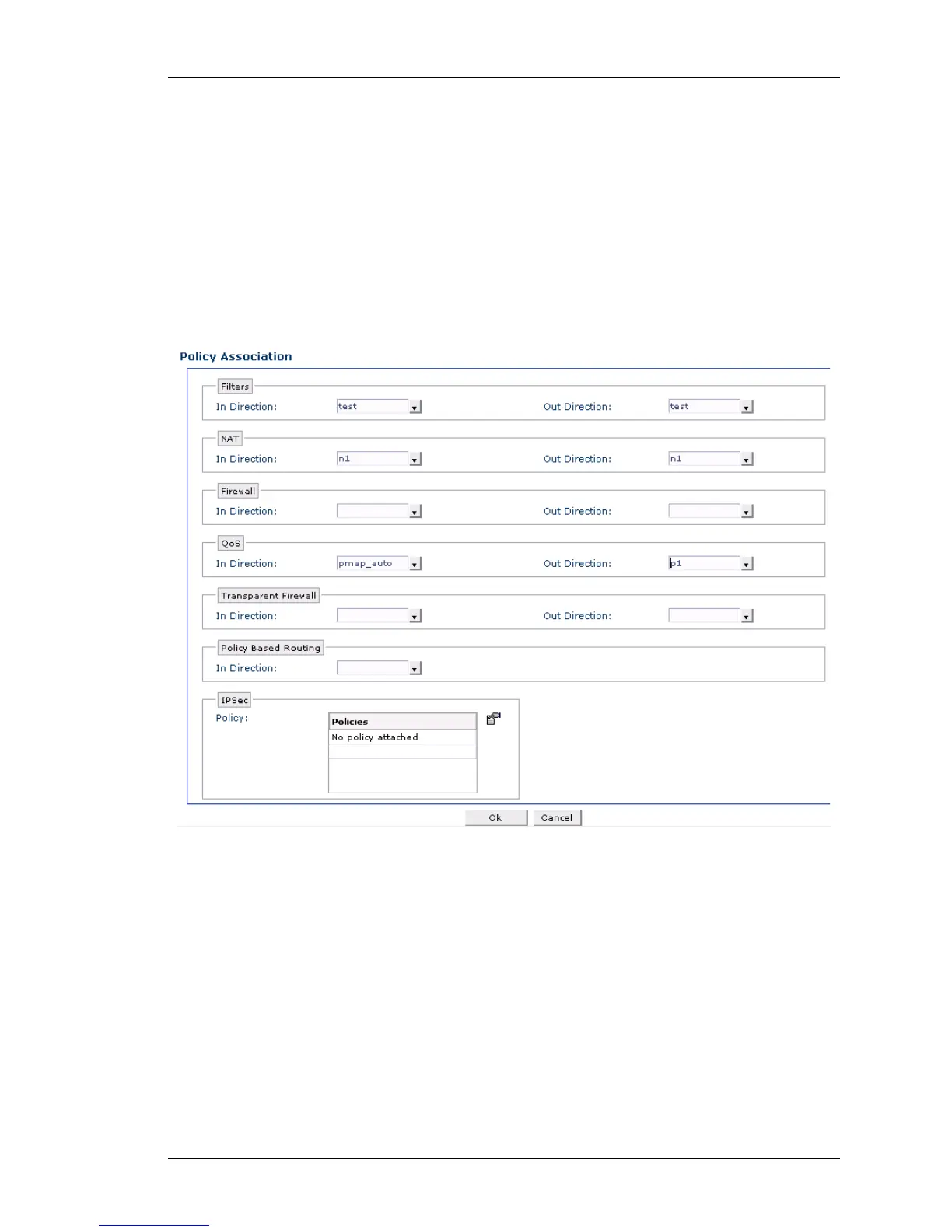

Figure 38: Interfaces - Policy Association
1. To attach a filter:
Under the Filters table, configure the following:
i. Click In Direction drop-down list. Filters created in your system are displayed.
Select the filter to be attached to the interface in the ingress direction from the
list.
ii. Click Out Direction drop-down list. Filters created in your system are
displayed. Select the filter to be attached to the interface in the egress
direction from the list.
If filters are not configured, see “Creating a Filter” section.
