OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
Create New Match-list
i. Select Create New option to configure new match-list. Create Match-list
pop-up window is displayed.

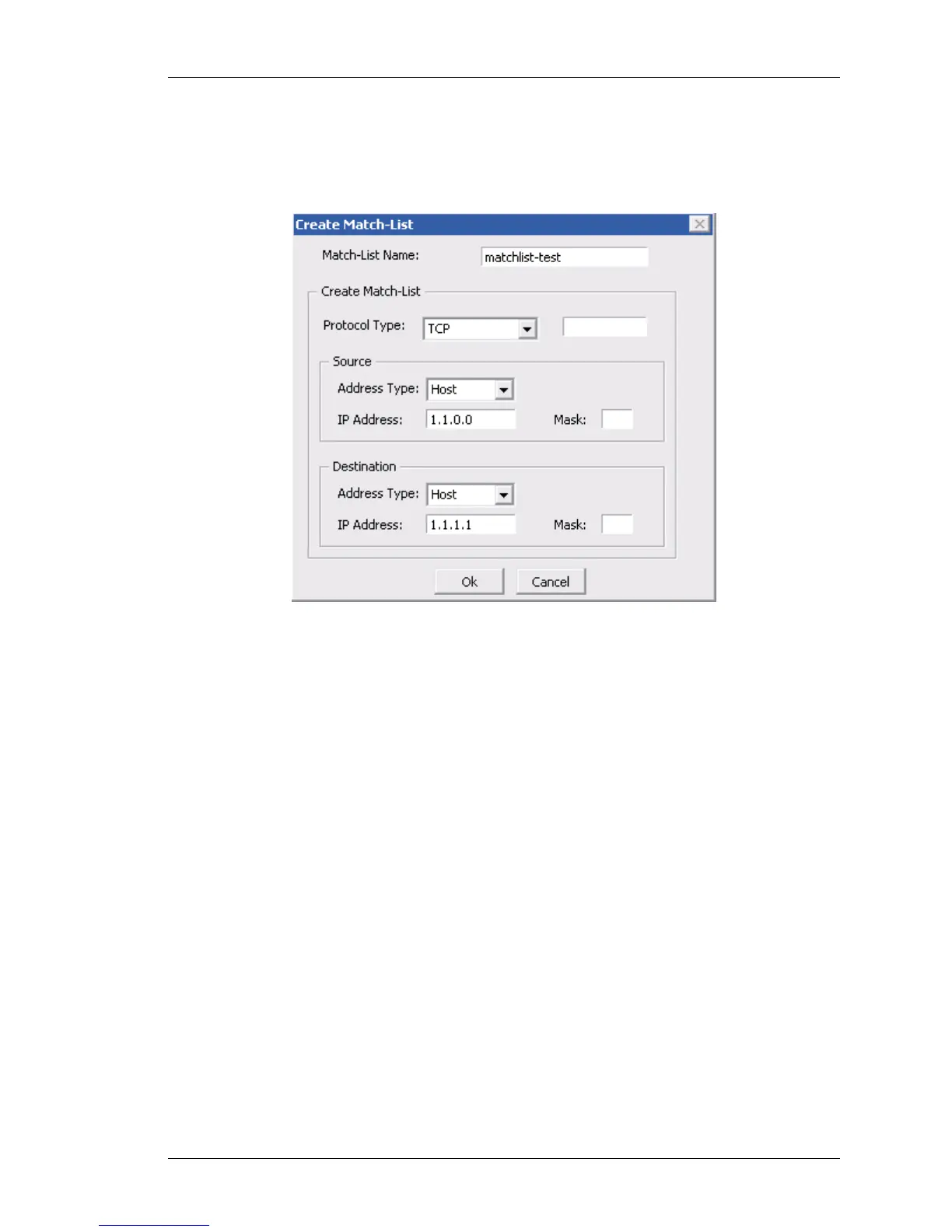

Figure 115: VPN IPSec: IPSec Wizard - Create IPSec Policy with Crypto-map
- Create Match-list
ii. Enter the match-list name in the Match-list Name field.
iii. Select any of the protocols from the Protocol Type drop down list.
iv. Enter the source information in the Source box. Select the address type
from the Address Type drop-down list: Host/Prefix. Enter the source IP
address for host, and enter the source address with prefix length for
prefix.
v. Enter the source information in the Destination box. Select the address
type from the Address Type drop-down list: Host/Prefix. Enter the
source IP address for host, and enter the source address with prefix
length for prefix.
vi. Click OK. The match-list thus created is displayed in the VPN Traffic
(Match-list) field.
