ONFIGURE VRRP GROUP
Follow the procedure below to configure VRRP group.
Step 1: From the VRRP Groups page, click Add VRRP Group.
Step 2: VRRP Group Configuration page is displayed.

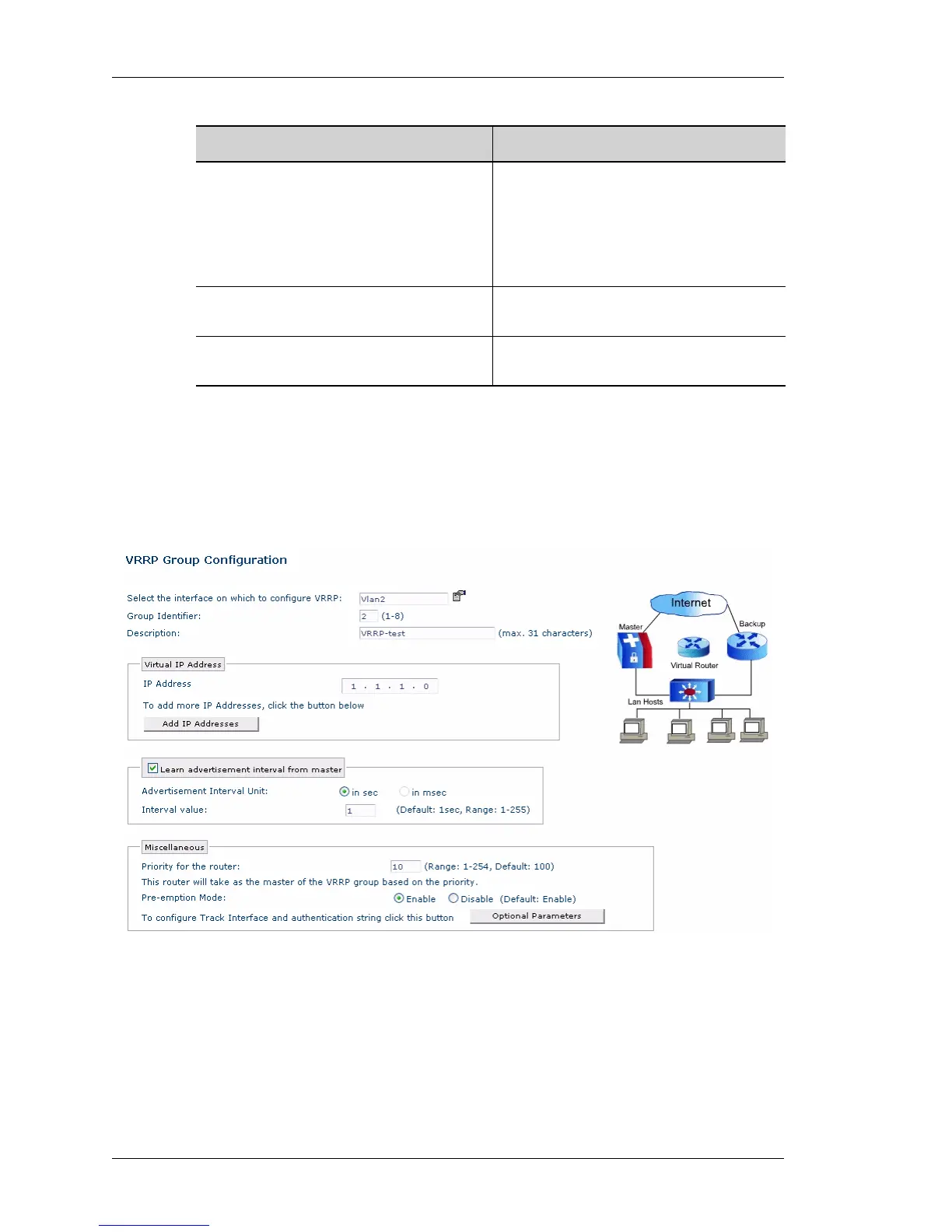

Figure 135: VRRP Group Configuration
Step 3: VRRP is configured on an interface. Hence, first select an interface on
which VRRP is to be configured. Note that operational state of the interface must
be up.
Select the interface on which VRRP is to be configured from the list.
VRRP State Indicates whether the current router is a
Master/Slave in its VRRP group. (Master
router acts as a default gateway for
receiving or transmitting packets for a
network. The backup virtual routers are
referred to as slaves.)
Master IP Address The interface IP address configured for
the virtual master router.
Action Provides an option to view master router
details, and edit/delete the VRRP Group.
