OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
Alcatel-Lucent

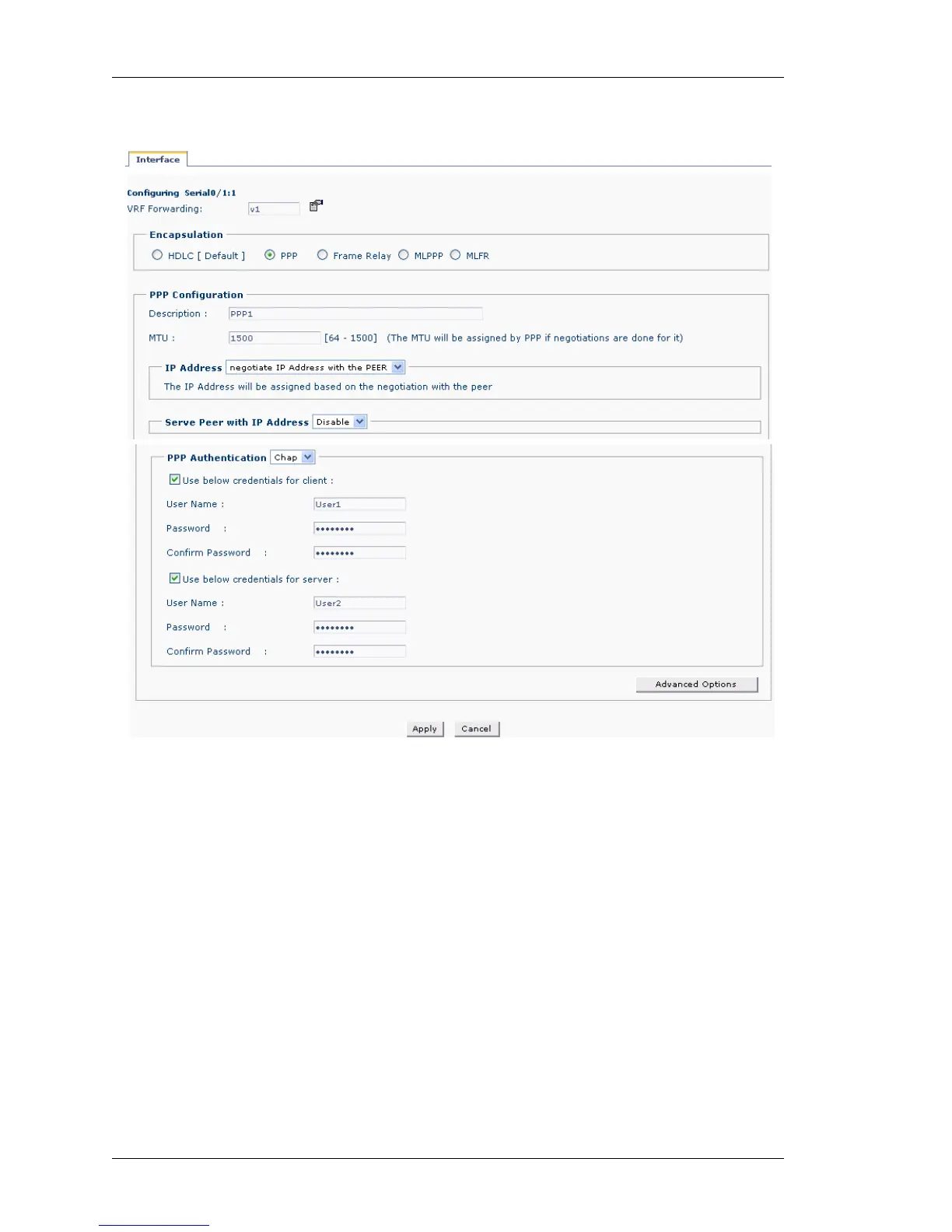

Figure 19: Interfaces - Configure PPP Encapsulation on a Channelized Serial
Interface
2. Enter the description for the serial interface in the Description field.
3. Enter the Maximum Transmission Unit (MTU) size in the MTU field. This should
be between 64 and 1500.
4. Select the IP address option from the IP Address drop down list: Static/
Negotiate IP Address with the Peer
• If Static option is selected, enter the IP address and the Mask in the IP
Address and Mask fields. This IP address will be advertised during IPCP but
not allow its negotiation. Click Remove to delete the IP address and re-enter
the new IP address.
• If Negotiate IP Address with the Peer is selected, a flag is set to accept the
IP address given to it by the peer during IPCP.
