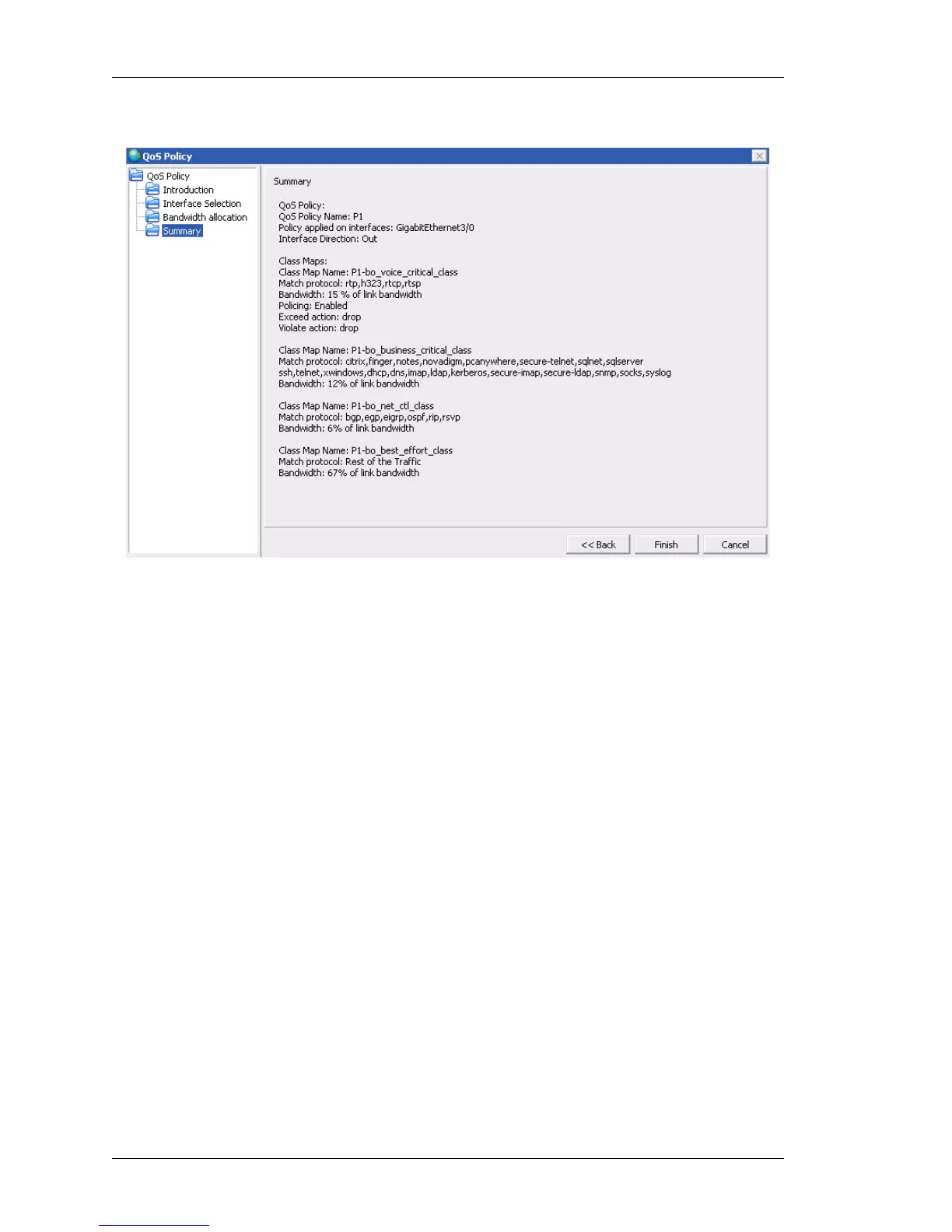

Figure 158: Quality of Service: QoS Wizard - Summary
The Summary window displays the details of the QoS Policy being configured:
Policy map being configured and the interface to be associated with it. It also
displays the classes auto created by the wizard, configured bandwidth and the
policing parameters.
Step 5: Click Finish to save the configuration and generate the QoS policy.
Step 6: A status bar is displayed showing the QoS policy creation. Once the QoS
policy is configured successfully, a successful message is displayed.
The policy map, the interface associated with the policy map, and the class maps
auto configured by the wizard is displayed in the Policy Map, Interface
Association and Class Map tabs as shown below.
