OmniAccess 5740 Unified Services Gateway Web GUI Users Guide

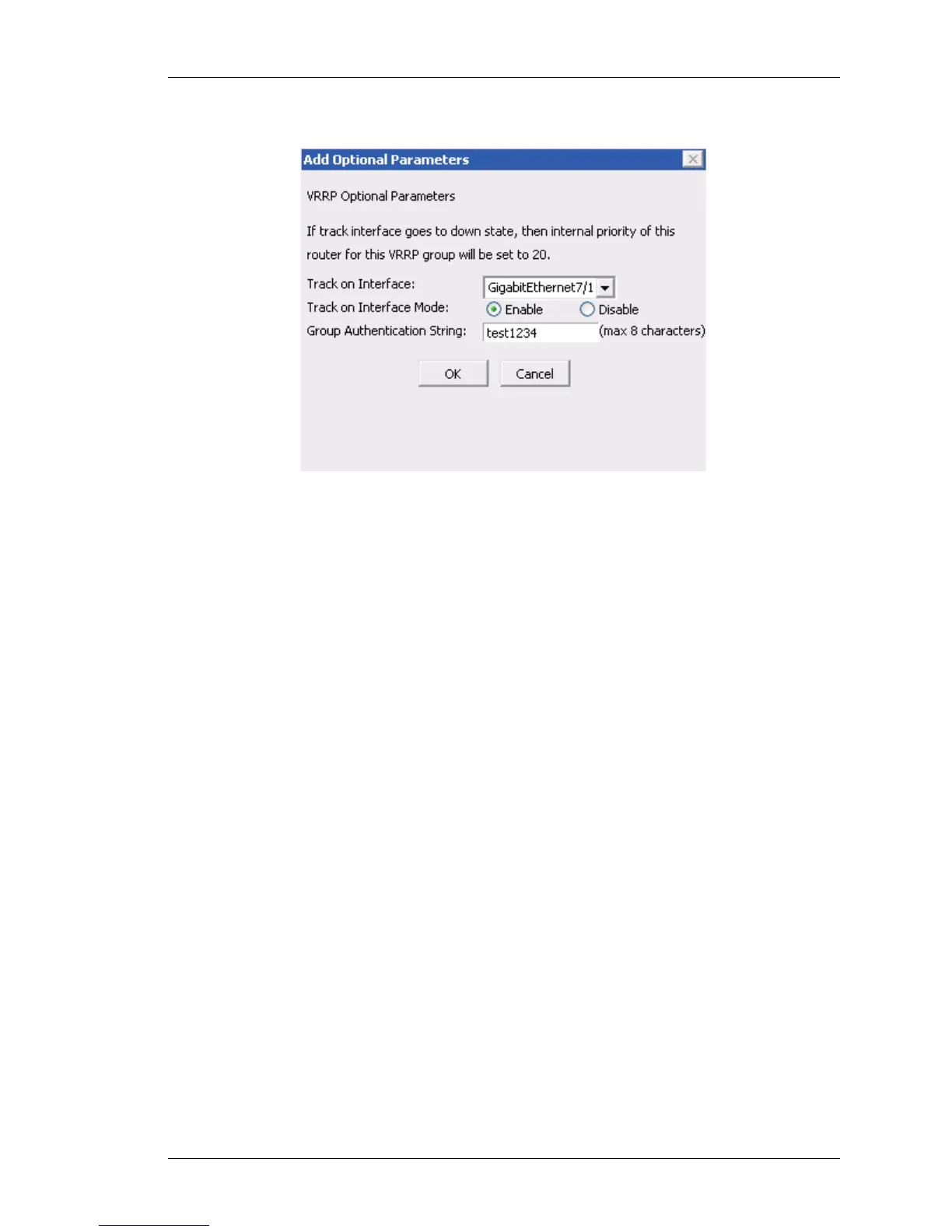

Figure 137: VRRP Group Configuration - Add Optional Parameters
i. Select the interface to be tracked for the VRRP group from the Track on
Interface drop-down list.
ii. Enable or disable the Track on Interface Mode by selecting Enable/Disable
radio button.
• Enabling the track on interface mode enables the interface to be tracked
for the VRRP group. The priority of the group is lowered when the
tracked interface state changes to down.
• Disabling the track on interface mode removes tracking of the interface.
iii. Set the authentication sting for the VRRP in the Group Authentication
String field. OmniAccess 5740 USG supports null authentication and plain-
text authentication. Maximum of 8 characters are allowed in the
authentication string.
iv. Click OK to configure the track interface and authentication string for the
VRRP or click Cancel to cancel the operation.
Step 9: Once you have entered the required configuration values, click Apply to
create a new VRRP Group or click Cancel to cancel the operation.
