OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
Policing Configuration
Notes:
1. Committed Rate is mandatory for policing configuration.
2. Excess-Burst cannot be less than Committed-Burst.
3. Exceed-Action will be of no effect if Commit-Action is set to ‘drop’.
4. Violate-Action will be of no effect if Exceed-Action is set to ‘drop’.
5. Peak rate cannot be less than the Committed-rate.
6. Policing is allowed at leaf class only.
1. Click Policing Configuration tab in the New Traffic Class page. Policing
Configuration page is displayed:

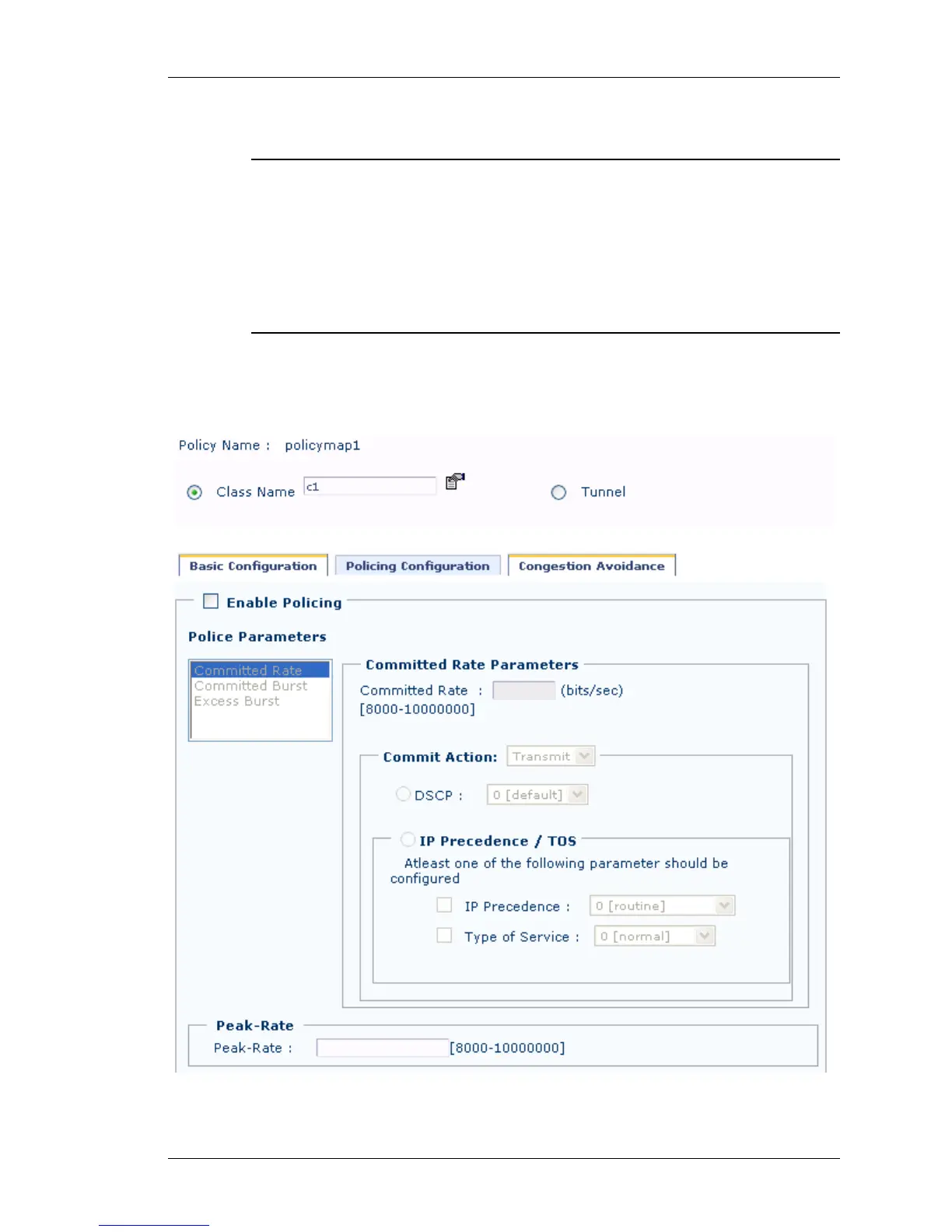

Figure 168: Quality of Service: Policy Map - New Traffic Class Policing
Configuration
