CHASSIS CONFIGURATION
This page lists the respective slot numbers and the line cards associated with it
that are installed in the system.
This also displays the details of the OmniAccess 5740 USG base system that
includes the following components: OmniAccess 5740 USG Chassis, Switch
Fabric, Services Engine, Fan Tray and Power Tray.
V
IEWING CHASSIS CONFIGURATION
Step 1: From the USGM menu bar, click Configure. All submenu/links under
Configure are displayed in the left navigation panel.
Step 2: By default, System sub-menu is selected.
System page has two tabs: System Config and Chassis Config. Click Chassis
Config tab. The following page is displayed in the center panel.

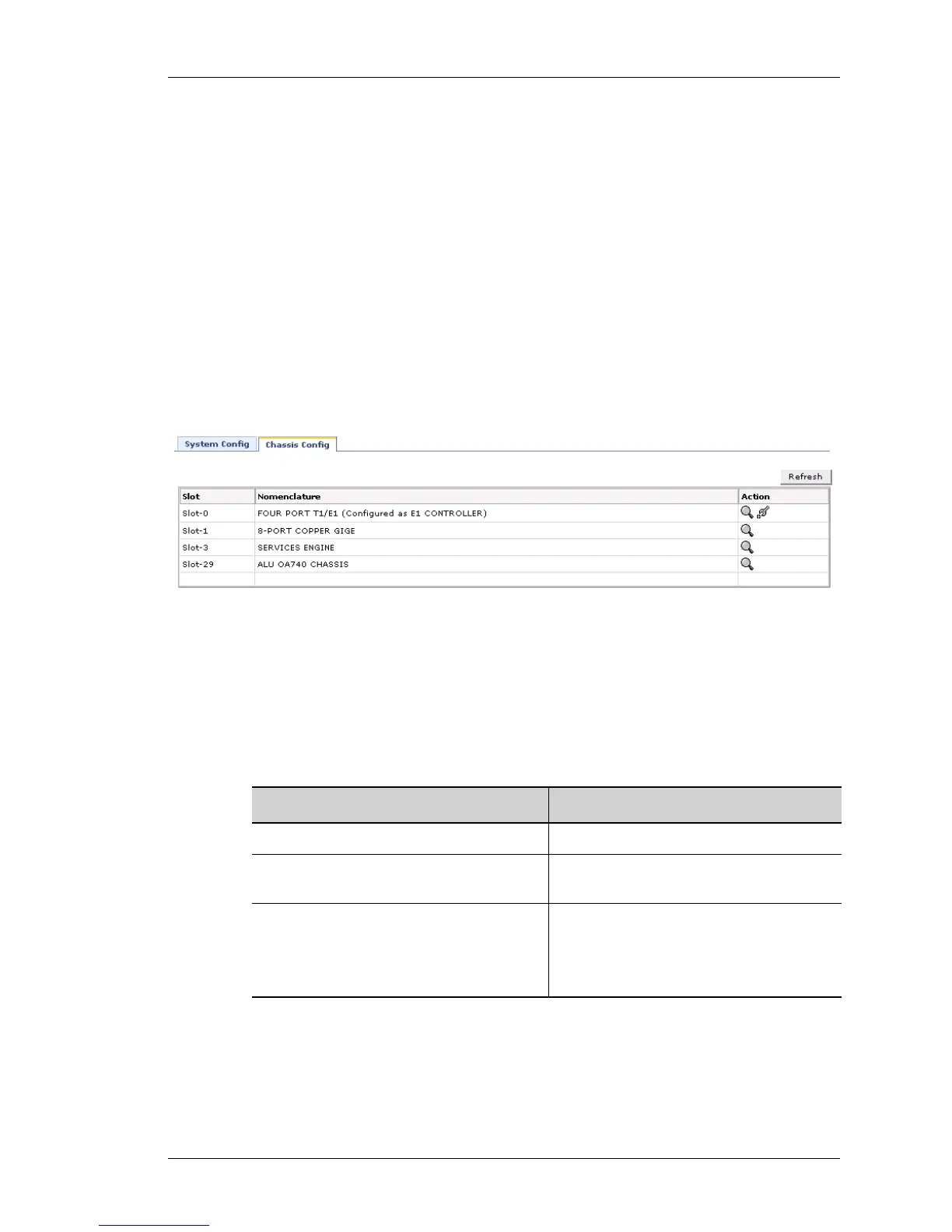

Figure 6: Chassis Config
The table below provides description of all the fields in the Chassis Config page.
Table 3: System Config Field Description
Field Description
Slot The slot number of the line card.
Nomenclature The name of the line card/system
component.
Action Provides an option to view the details of
the respective card.
Note: Provides an option to set the card
type to T1 or E1.
