OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
ATTACH FILTER TO AN INTERFACE
Step 1: Bind the filter to the interface in the Interface Bindings table.
1. Select the filter from the Filter list.
2. Click Attach Interface to attach filter to the interface. This populates fields to as
shown below:

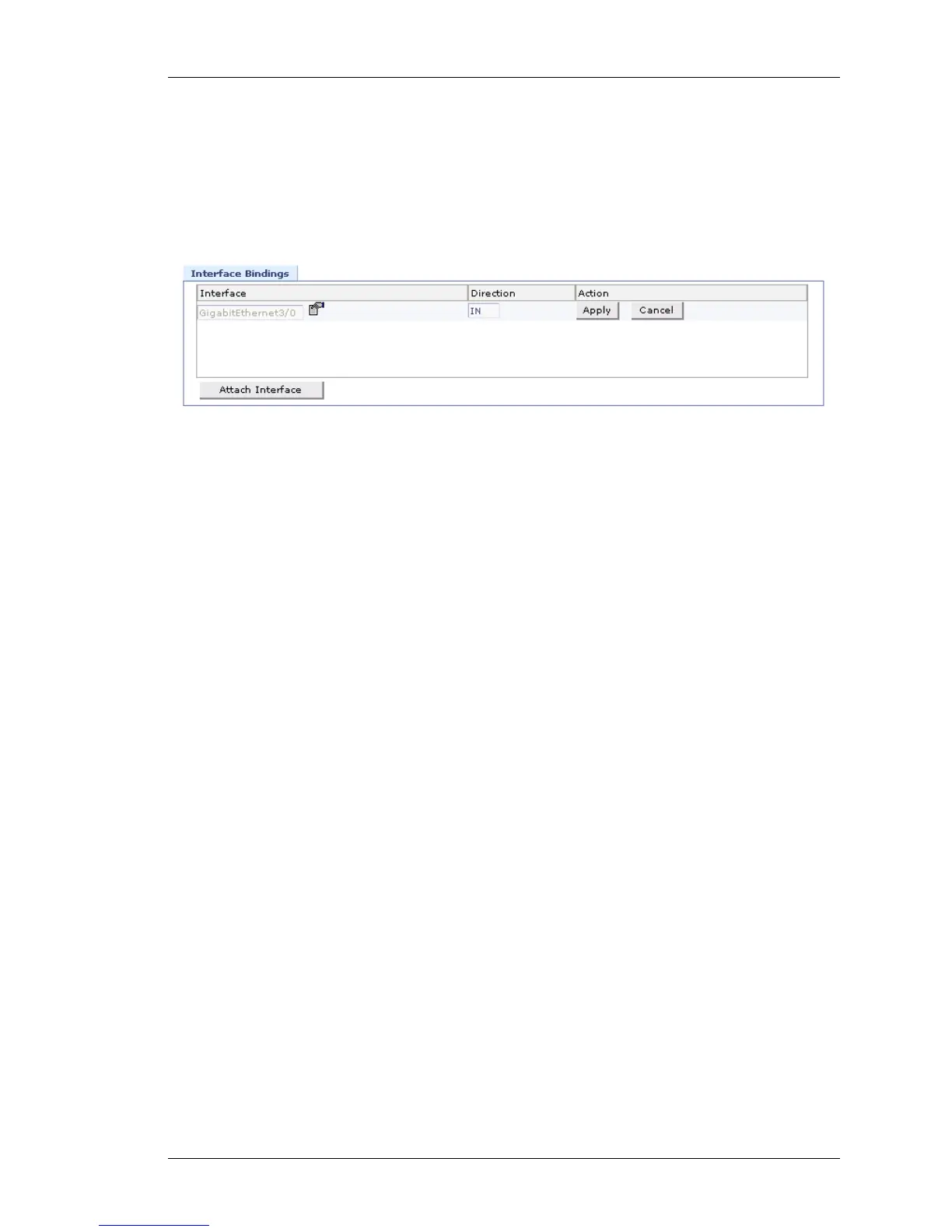

Figure 88: Firewall: Filters - Attach Filter to an Interface
3. Select the interface from the Interface list.
4. Set the direction to which the filter is to be applied: IN/OUT
5. Click Apply to attach the filter to the selected interface.
D
ETACH FILTER FROM AN INTERFACE
1. Select the filter from the filter list.
Interfaces already bound to the selected filter are displayed in Interface
Bindings table.
2. Click Detach icon in the Action column to detach filter from the selected interface.
3. Confirm at the prompt to detach the filter.
E
NABLE INTERFACE STATISTICS
1. Select the filter from the filter list.
Interfaces already bound to the selected filter are displayed in Interface
Bindings table.
2. Click Enable Interface Statistics icon to enable interface statistics.
3. Click the same icon to disable interface statistics for a filter.
