OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
INTERFACE ASSOCIATION
This page allows you to associate a Policy Map with an interface.
V
IEWING INTERFACE ASSOCIATION
Step 1: Launch the Web GUI tool.
Step 2: From the USGM menu bar, click Configure. All submenu/links under
Configure are displayed in the left navigation panel.
Step 3: Click Quality of Service sub-menu.
Quality of Service has four tabs: QoS Wizard, Class Map, Policy Map, and
Interface Association. Select Interface Association tab, Interface Association
page will be displayed in the center panel.

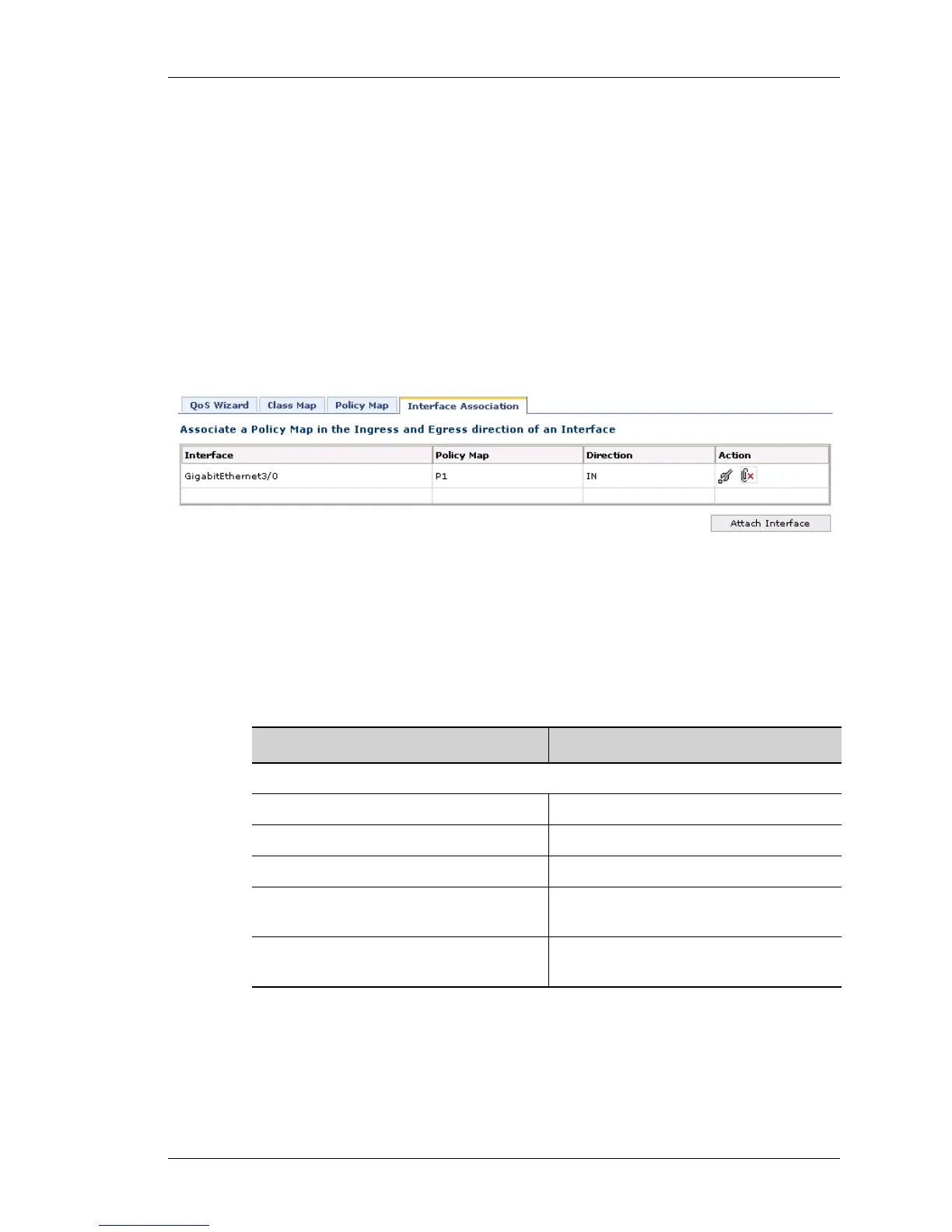

Figure 175: Quality of Service: Interface Association
The table below provides field description for the Interface Association page.
Table 33: Interface Association Field Description
Field Description
I
NTERFACE ASSOCIATION
Interface Lists interfaces
Policy Map Policy map associated with the interface.
Direction Direction Ingress or Egress (IN or OUT).
Action Provides option to edit/detach the policy
map for the interface.
Attach Interface Allows to attach selected policy map to
an interface.
