Alcatel-Lucent OmniAccess 5740 User Manual

Configure
Left running head:
Chapter name (automatic)
134
Beta Beta
OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
Alcatel-Lucent
R
ULE ELEMENTS FOR UDP

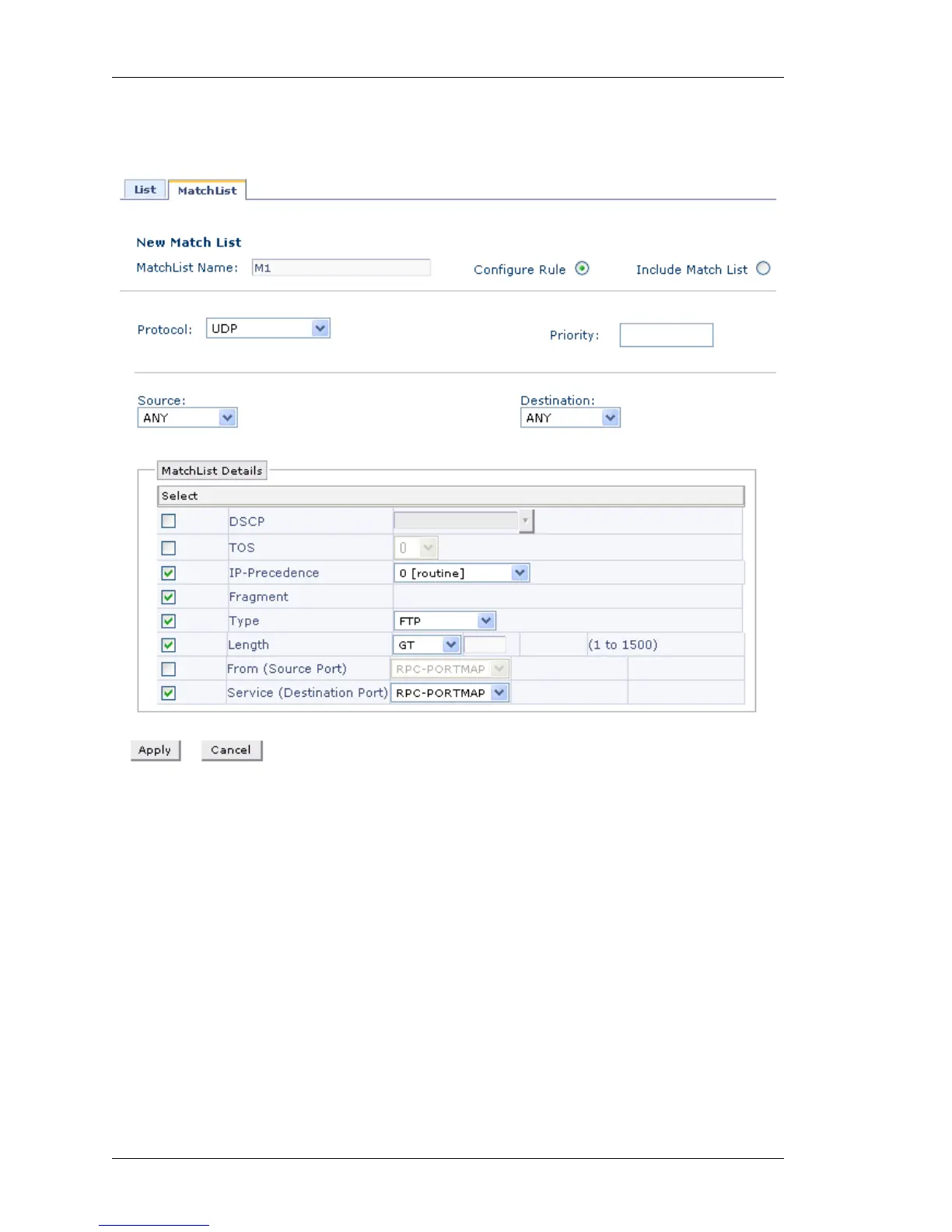

Figure 70: Traffic Classification: New Match List Rule - UDP
1. Add the DSCP.
Check the DSCP check box to add the DSCP. Provide the DSCP value in the
range between 0 and 63 or select the value from the drop-down list.
2. Add ToS
Check the TOS check box; select the ToS value from the drop-down list.
3. Set the IP precedence level.
Check the IP-Precedence check box to set IP precedence level in the range
between 0 and 7.
4. Add fragments.
Check the Fragment check box to match the IP Fragment bit.
