OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
CONFIGURE CLASS MAP
Follow the procedure given below to create a class map:
Step 1: From the Class Map page, click New Class Map to create a new class
map.
New Class Map page is displayed in the center panel.

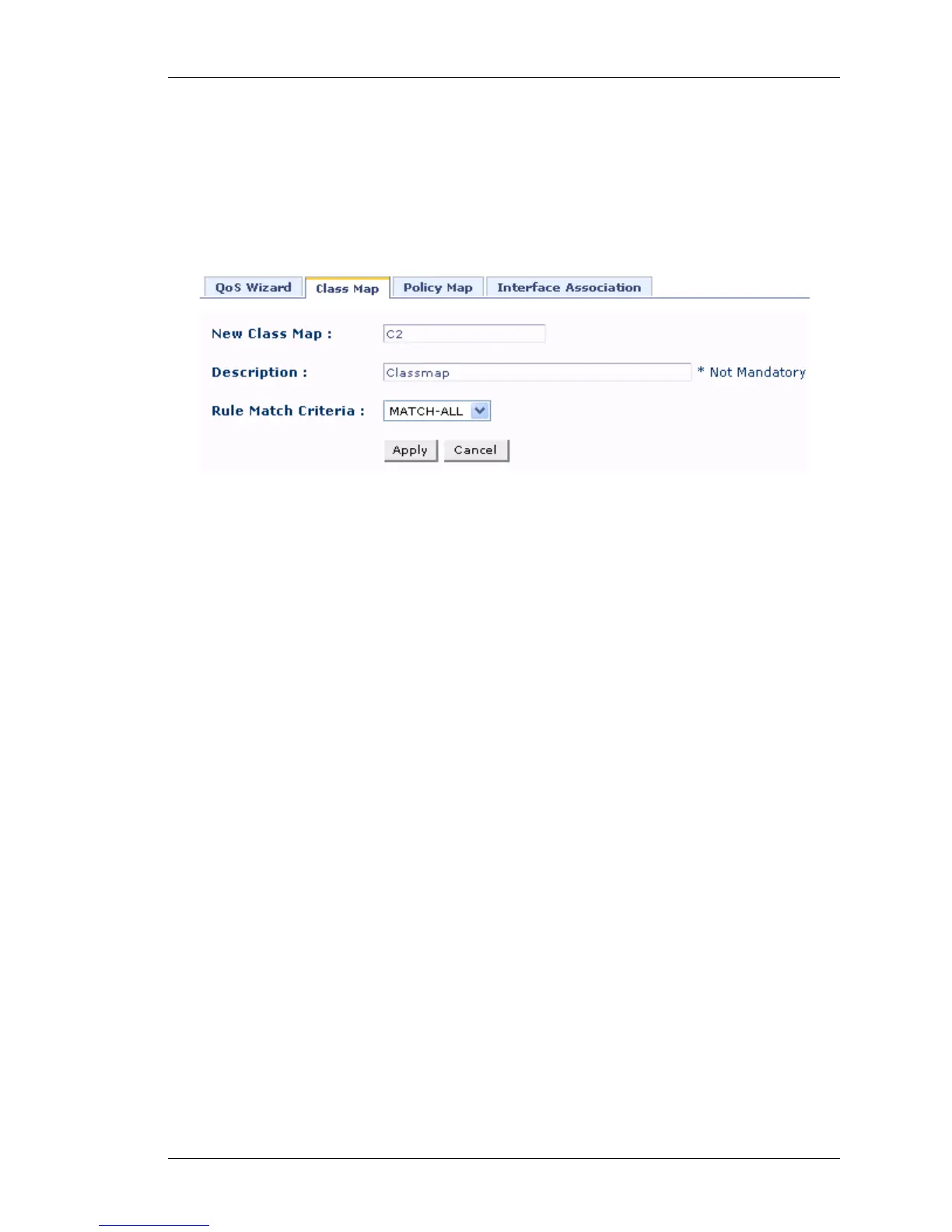

Figure 163: Quality of Service: New Class Map
Step 2: Enter the name for new class map in New Class Map field.
Step 3: Enter description for the new class map in the Description field.
(optional)
Step 4: Set the rule match criteria for the class map from the Rule Match Criteria
drop-down list: MATCH ALL/MATCH ANY
Step 5: Click Apply to create a new class map or click Cancel to cancel the
operation.
