Alcatel-Lucent
Beta Beta
OmniAccess 5740 Unified Services Gateway Web GUI Users Guide

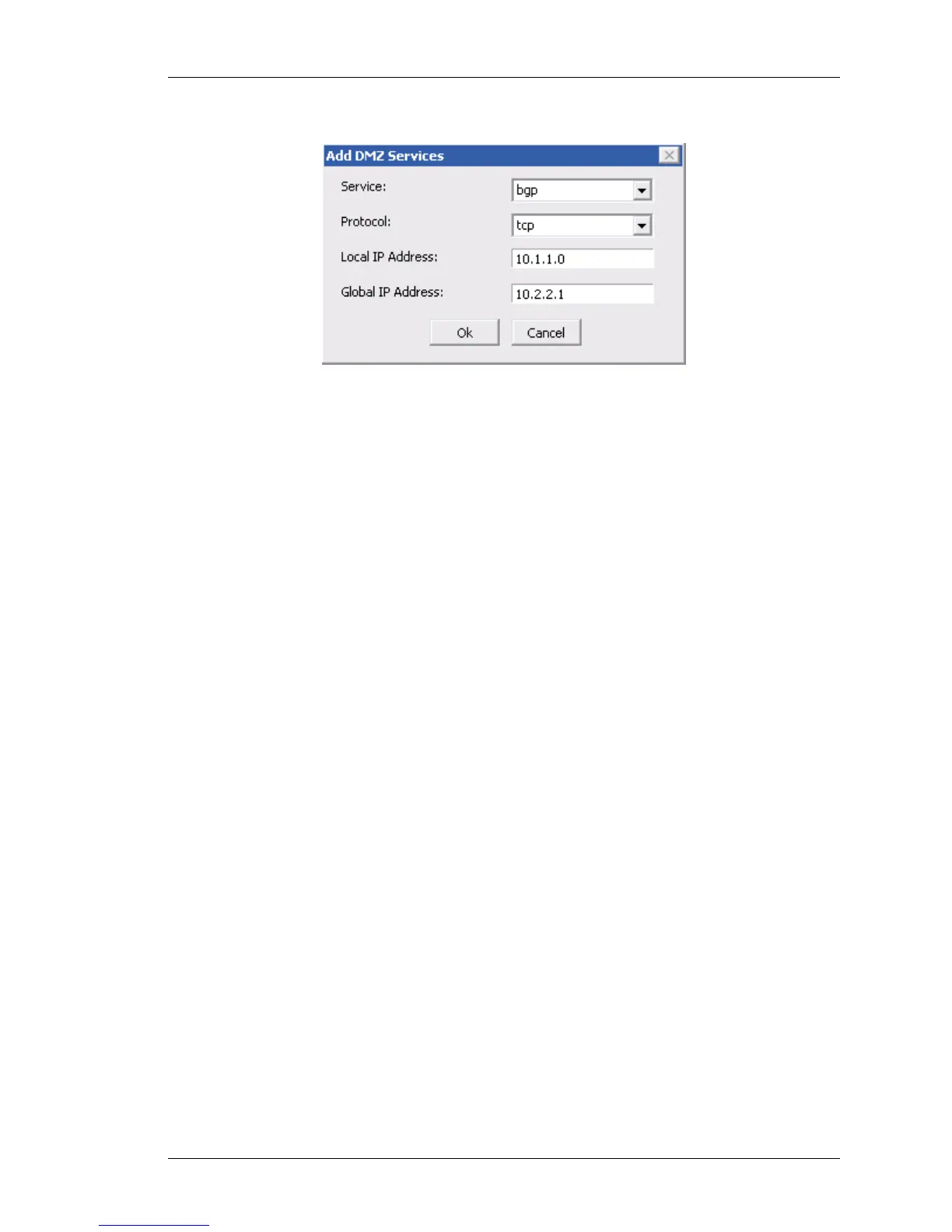

Figure 79: Firewall: Firewall Wizard - DMZ Settings - Add DMZ Service
• Select the service to be added from the Service drop-down list.
• Select the protocol type from the Protocol drop-down list.
• Enter the local and the global IP address in the Local IP Address and the
Global IP Address fields.
Local and Global IP Address are those of the respective Server as seen in
your DMZ network and internet
• Click OK. The added service is displayed in the Select DMZ Services to be
accessed from the Internet list. Repeat the procedure to add as many
services as required.
• Select the service to be edited, and Edit to edit the service parameters, and
click Delete to delete the selected service.
Step 4: Click Next to continue. Access Management window is displayed.
Access Management allows remote management of the OmniAccess 5740
USG.(SSH/Telnet to access CLI, HTTP/HTTPS for Web based management and
SNMP service.)
