CONFIGURE E1 CONTROLLER
The interface page allows you to configure the E1 Controller.
The E1 interface provides a transmission rate of 2.048 Mbps. It can support up to
32 user channels, though usually only 30 channels are used as dedicated user
channels. An E1 basic frame is made up of 256 bits, 32 time slots, each
containing 8 bits. Each time slot provides a 64 Kbps data throughput. An E1 line
connects two points in one of which, the information is multiplexed and in the
second demultiplexed.
Follow the procedure below to configure the E1 Controller.
Step 1: On the Interfaces page, click Configure icon against the E1 Controller
that is to be configured. The following page is displayed:

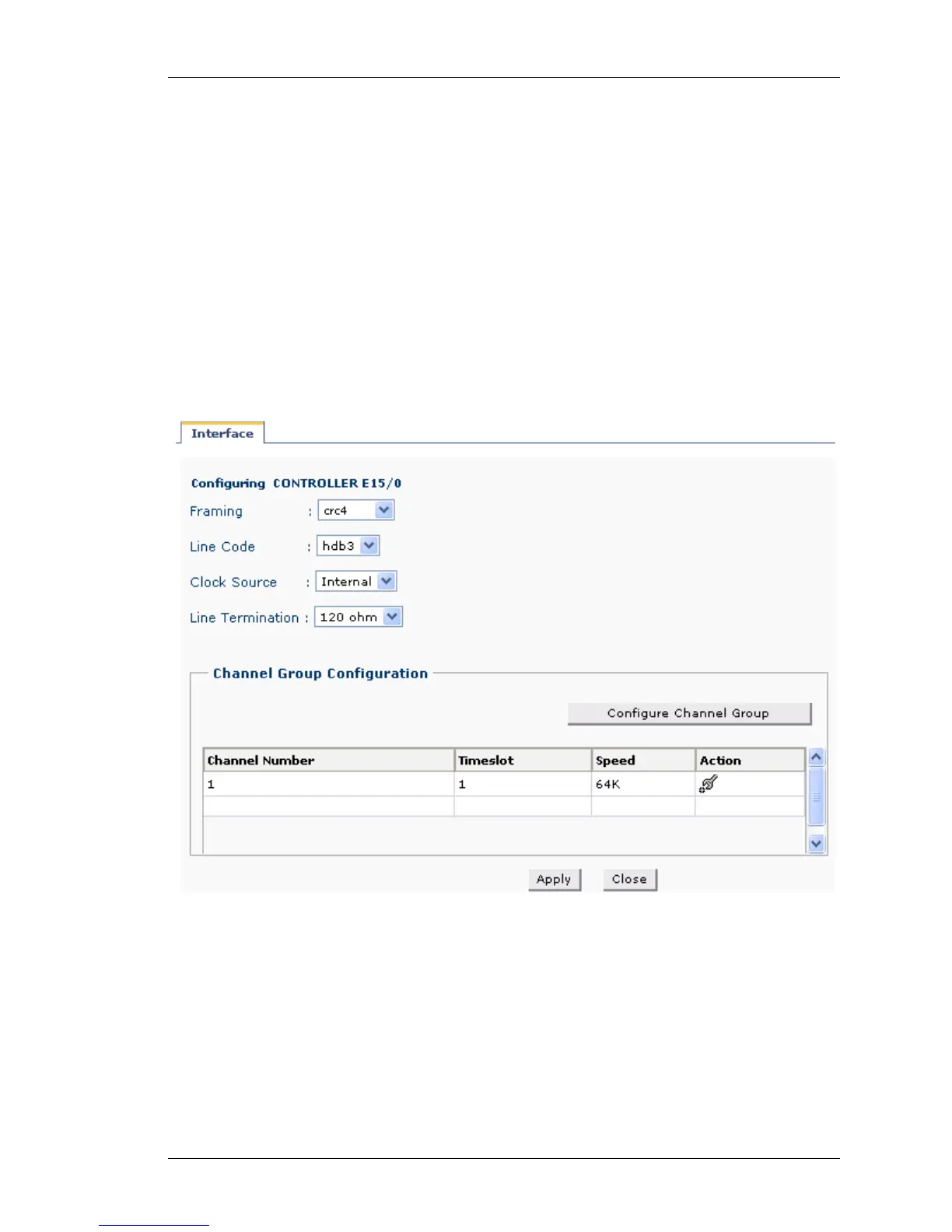

Figure 16: Interfaces - Configuring E1 Controller
