Configure
Except on the first page, right running head:
Heading1 or Heading1NewPage text (automatic)
63
Alcatel-Lucent
Beta Beta
OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
CONFIGURE TUNNEL INTERFACE
Follow the procedure given below to configure GRE/IPSec tunnel interface:
Step 1: In the Interfaces page, click Configure icon for the GRE/IPSec tunnel
interface whose parameters are to be configured. This displays the
Configuration Serial page in the Center Panel.

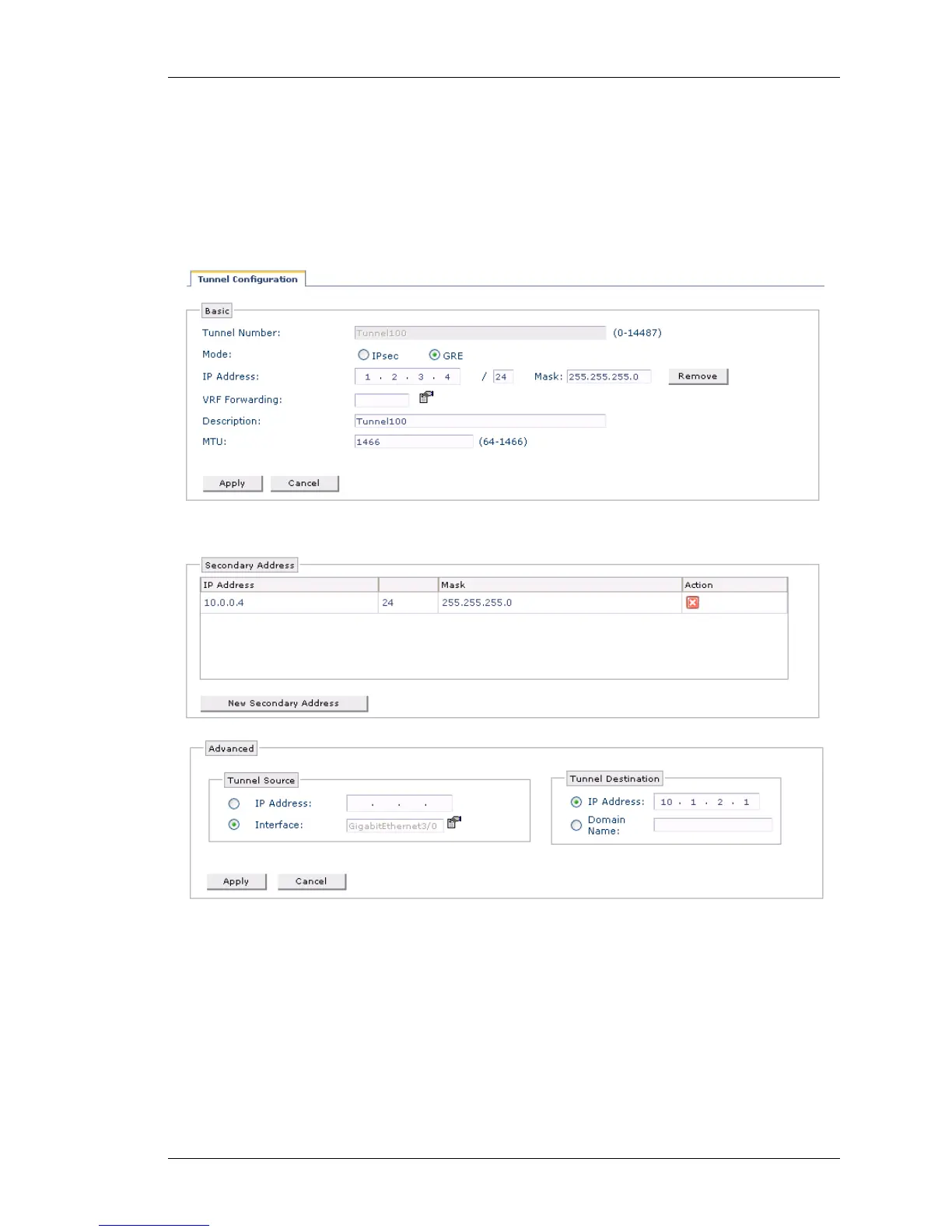

Figure 32: Interfaces - Configure Tunnel Configuration
Step 2: Tunnel number, mode, IP address, description, MTU and VRF configured
for the interface is displayed in the Basic box. Make the necessary changes if
necessary. Tunnel Number is not editable.
• VRF Forwarding displays the VRF configured. To remove the VRF, click Remove.
