Configure
Except on the first page, right running head:
Heading1 or Heading1NewPage text (automatic)
161
Alcatel-Lucent
Beta Beta
OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
Static Address Translation (1:1)

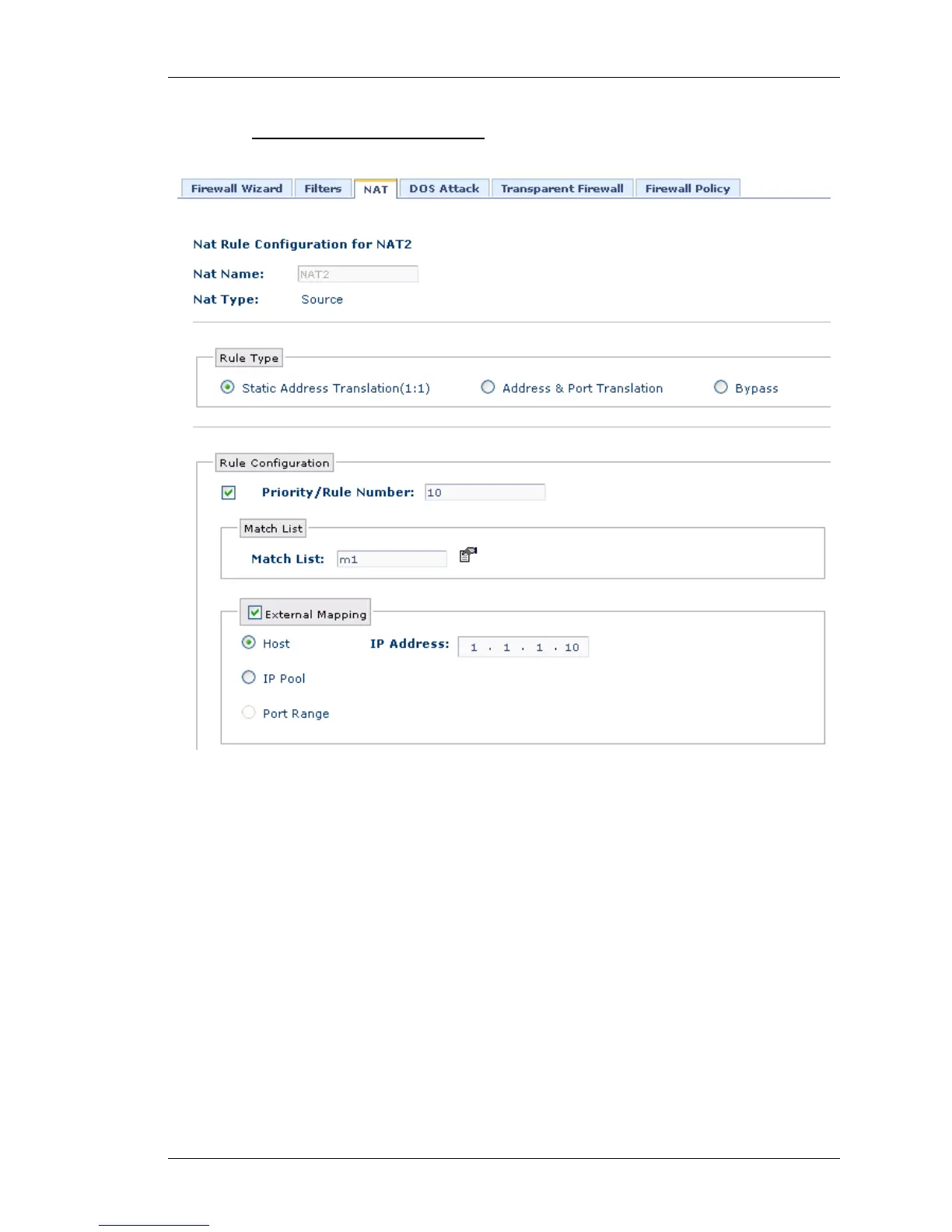

Figure 92: Firewall: NAT - Source NAT Configuration - NAT Rule - Static
Address Translation
1. Select the Priority/Rule Number check box to set the priority number for the rule
to be applied.
Priority number indicates which rule would be applied first when the NAT policy is
bound to an interface. Lower the number, higher the priority. If you do not enter
any priority, the system takes default priority number of 10, or increments 10 to the
last entered value.
2. Select the match-list. Select the match-list from the Match List field in the Match
List box.
