CONFIGURE LOOPBACK INTERFACE
Follow the procedure below to configure Loopback interface.
Step 1: On the Interfaces page, click Configure icon for the Loopback interface
to be configured. Configuring Loopback page is displayed in the Center Panel.

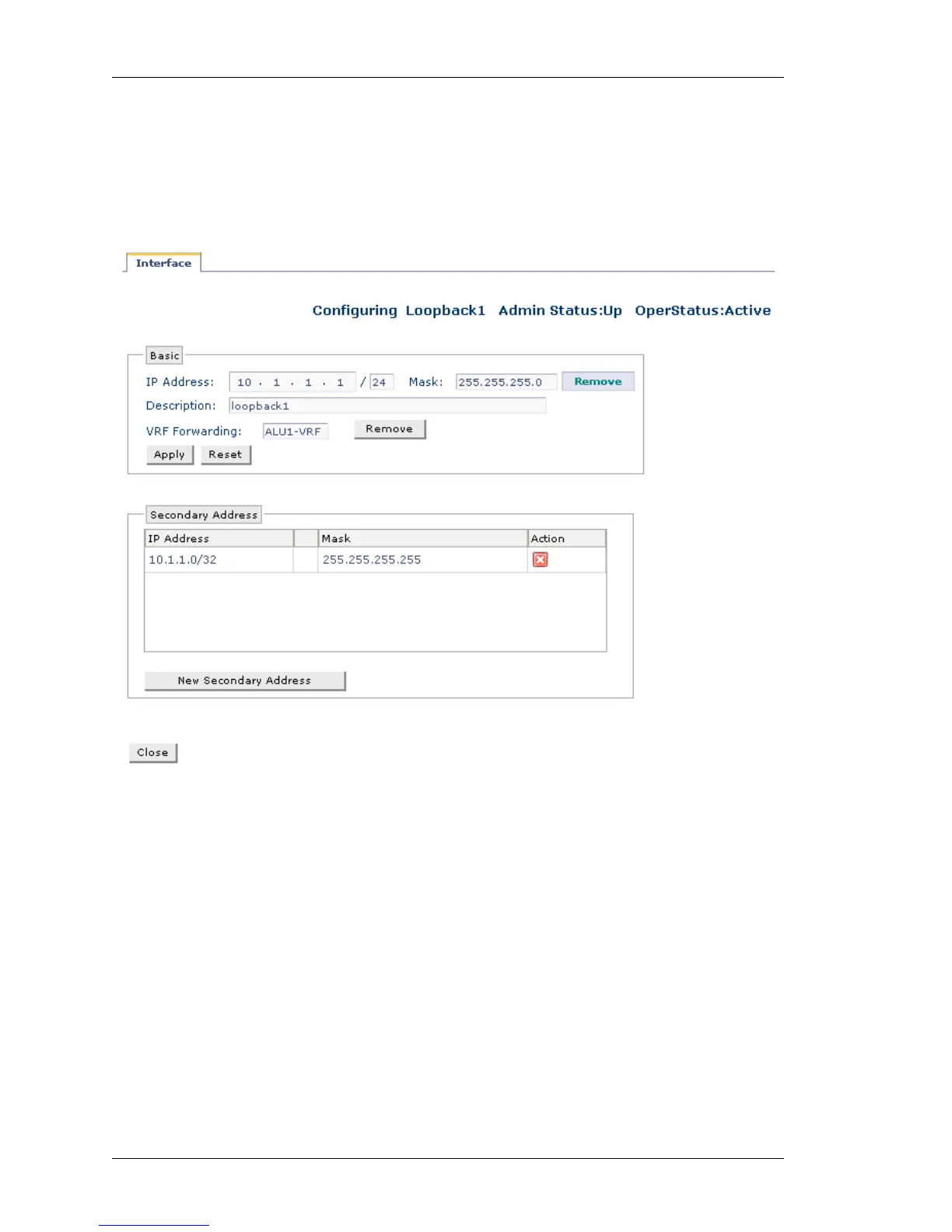

Figure 34: Interfaces - Configure Loopback Interface
Step 2: The primary address configured for the interface is displayed in the Basic
box.
1. IP address and the description configured for the interface is displayed in their
respective fields.
2. VRF Forwarding displays the VRF configured. To remove the VRF, click Remove.
3. Make the changes and click Apply or click Reset to retain the original details.
