Configure
Except on the first page, right running head:
Heading1 or Heading1NewPage text (automatic)
53
Alcatel-Lucent
Beta Beta
OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
You can also configure Per VLAN STP for the VLAN.
Spanning-Tree Protocol (STP) is a link management protocol that provides path
redundancy while preventing undesirable loops in the network. For an Ethernet
network to function properly, only one active path can exist between two stations.
Multiple active paths between stations cause loops in the network. If a loop exists
in the network topology, the potential exists for duplication of messages. When
loops occur, some switches see stations appear on both sides of the switch. This
condition confuses the forwarding algorithm and allows duplicate frames to be
forwarded.
To provide path redundancy, Spanning-Tree Protocol defines a tree that spans all
switches in an extended network. Spanning-Tree Protocol forces certain
redundant data paths into a standby (blocked) state. If one network segment in
the Spanning-Tree Protocol becomes unreachable, or if Spanning-Tree Protocol
costs change, the spanning-tree algorithm reconfigures the spanning-tree
topology and reestablishes the link by activating the standby path. Spanning-Tree
Protocol operation is transparent to end stations, which are unaware whether they
are connected to a single LAN segment or a switched LAN of multiple segments.
Follow the following procedure to configure VLAN, enable IRB, and configure Per
VLAN STP.
Step 1: Click Add Logical Interface on the Interfaces page. A drop-down list
lists the logical interfaces that can be configured. Select Virtual LAN from the list.
Configure VLAN page is displayed as shown below.

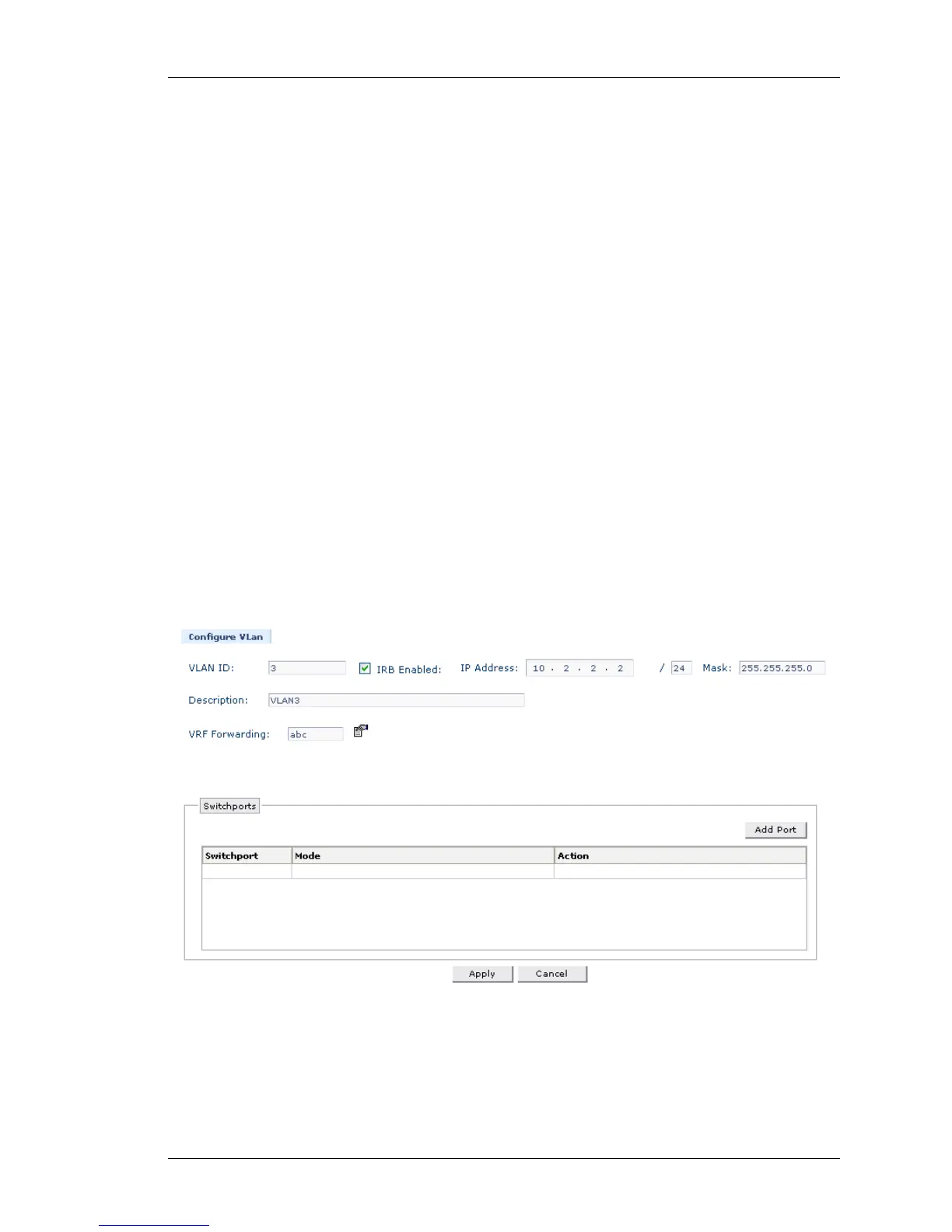

Figure 27: Interfaces - Configure VLAN
Step 2: Enter the VLAN ID in the VLAN ID field.
