C
REATING DESTINATION NAT (DNAT) POLICY AND CONFIGURE NAT RULE
Follow the procedure given below to create DNAT policy and configure NAT Rule:
Step 1: Click New NAT Policy in the NAT Policy page to create a new NAT
policy.
The New NAT Configuration page is displayed.

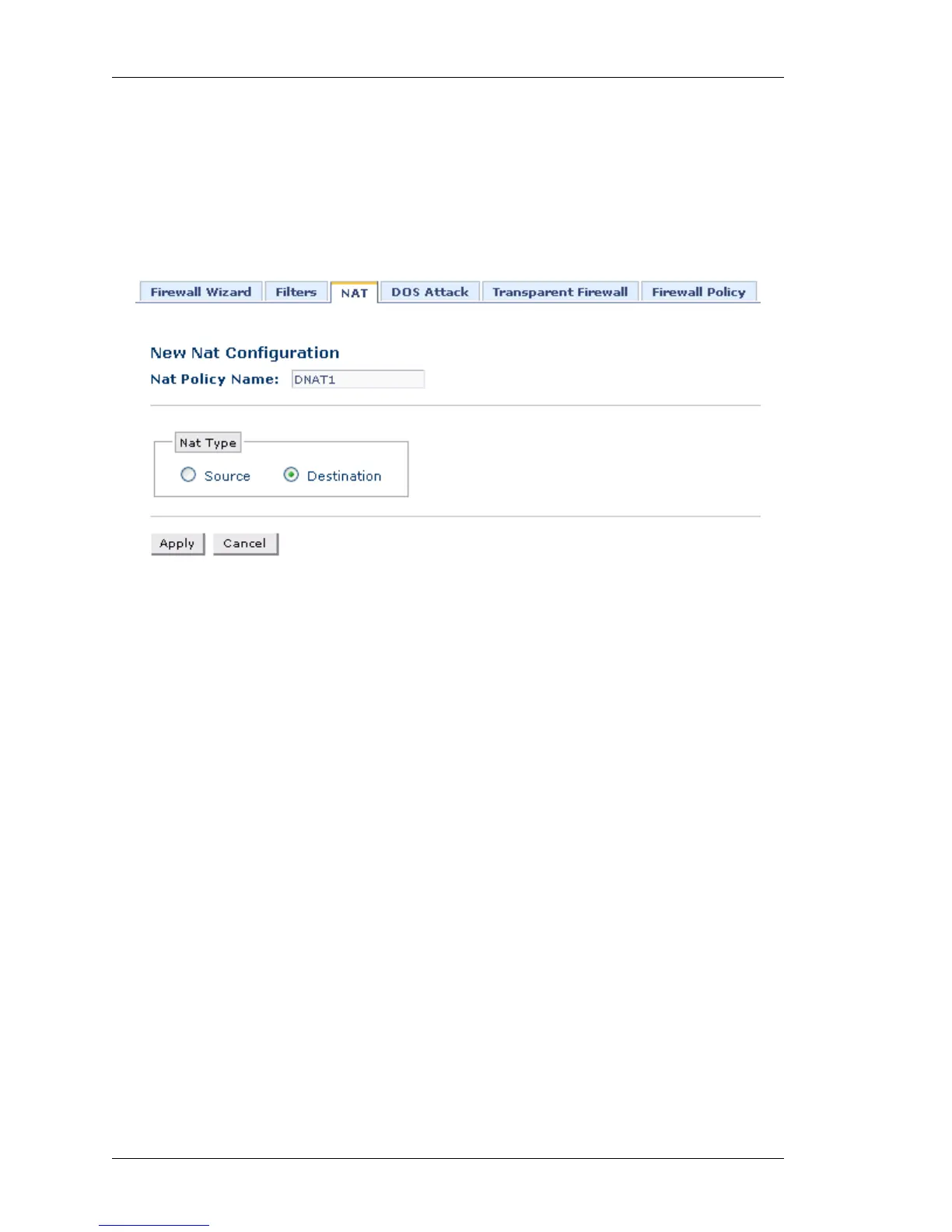

Figure 95: Firewall: NAT - New Destination NAT Configuration
Step 2: Enter NAT name in the NAT Policy Name field.
Step 3: Select type of NAT as destination by selecting Destination radio button.
Step 4: Click Apply to create new DNAT. NAT Rule Configuration page for the
new DNAT you just created is displayed.
Step 5: Configure NAT rule for selected rule type.
Select the NAT Rule Type: Static Address Translation (1:1), Address & Port
Translation or Bypass.
