ACTIVE ROUTES
This menu displays the information about the active routes.
V
IEWING ACTIVE ROUTES
Follow the procedure below to view the Active Route statistics.
Step 1: Launch the Web GUI tool.
Step 2: From the USGM menu bar, click Monitor. All submenu/links under
Monitor are displayed in the left navigation panel.
Step 3: Click Active Routes sub-menu. Active Route Details page is displayed in
the center panel.
Step 4: Select Default VRF radio button to view the static routes attached to
default VRF.
Step 5: Select Select VRF radio button. Choose the required VRF from the list.
This displays the static routes attached to the VRF selected from the list.

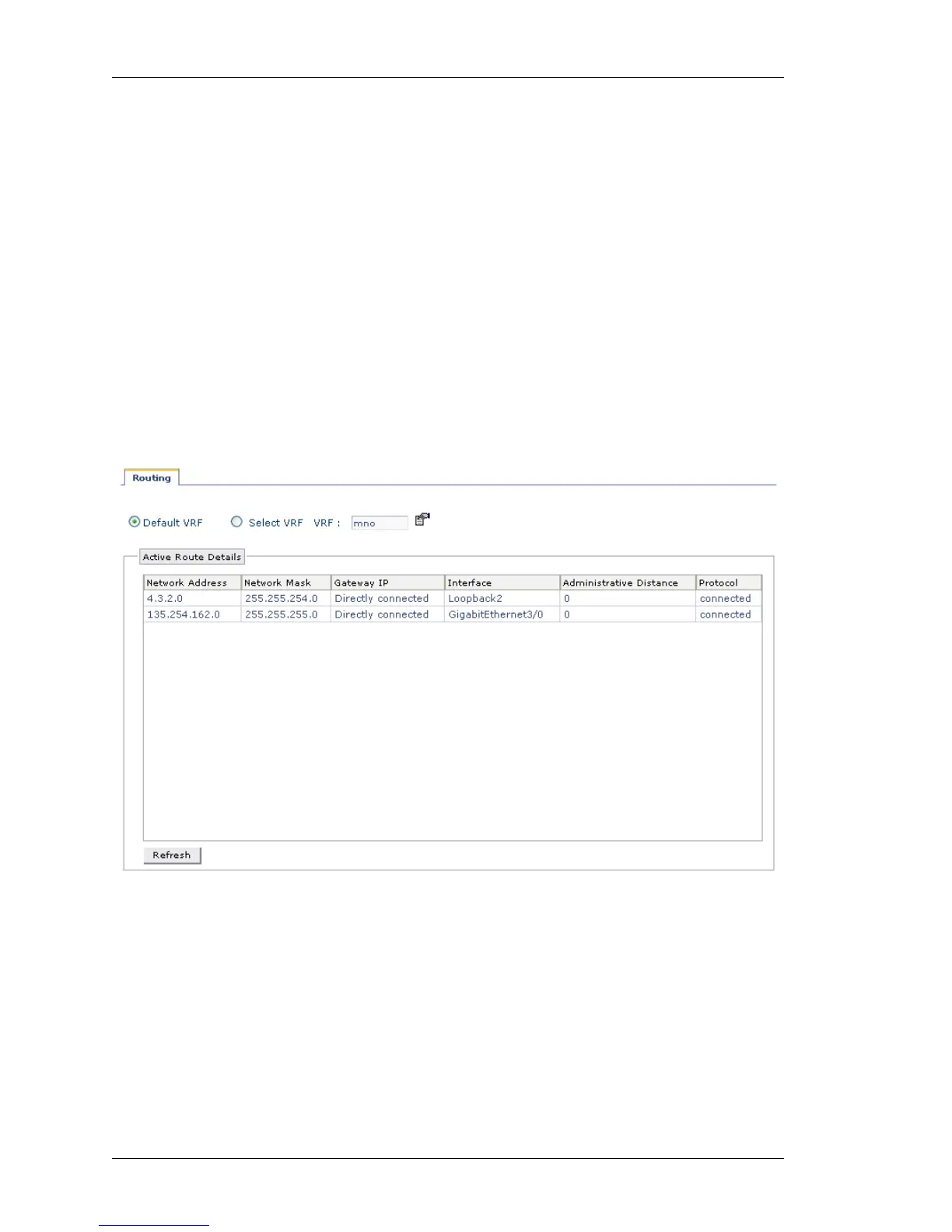

Figure 211: Monitor: Active Route Details
