Configure
Left running head:
Chapter name (automatic)
30
Beta Beta
OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
Alcatel-Lucent

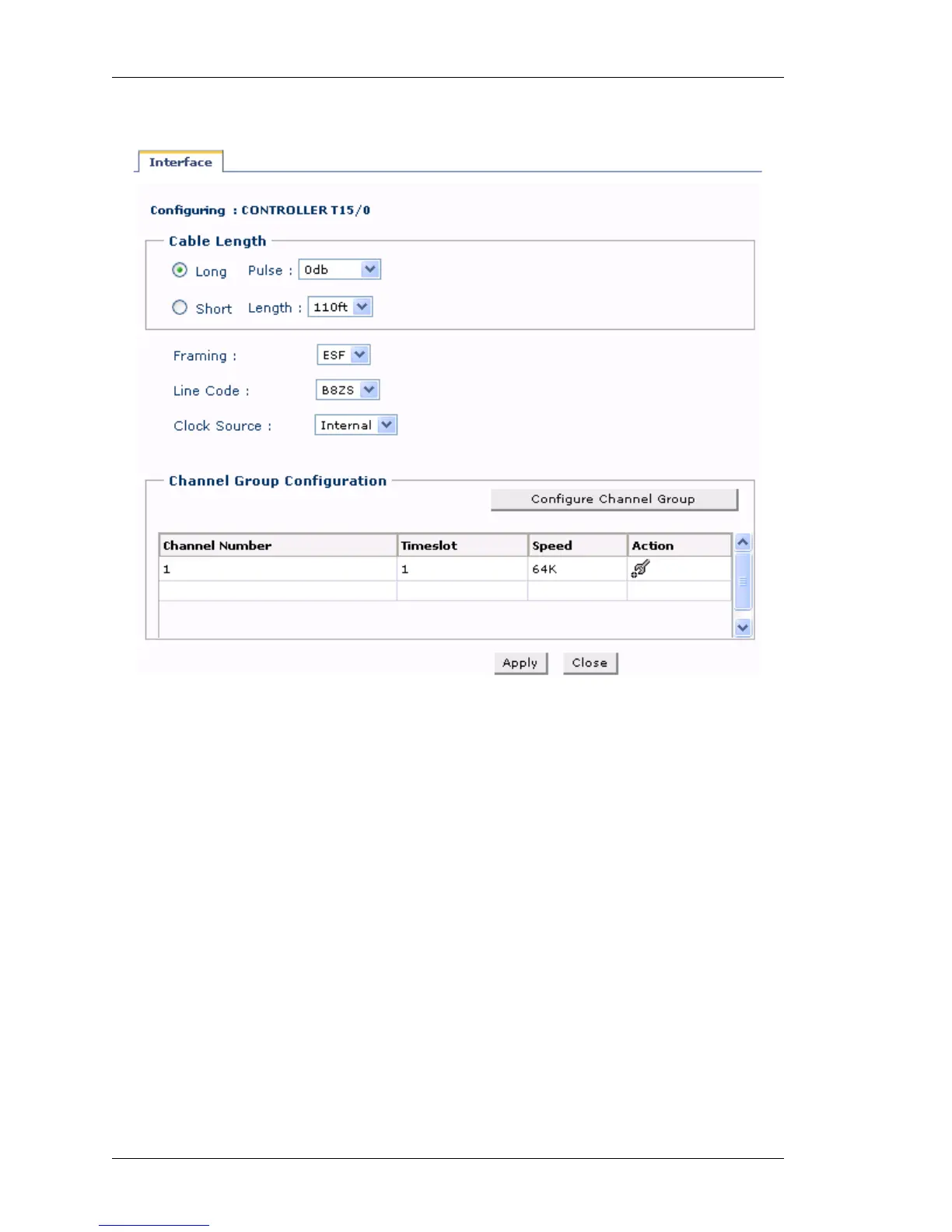

Figure 14: Interfaces - Configuring T1 Controller
Step 2: Specify the cable length parameters in the Cable Length box. The cable
length can be of the type Short or Long.
• Select the Long radio button, and select the pulse value from the Pulse drop-
down list.
Long option configures the transmit and receive levels for a cable length (line
build-out) longer than 660 ft for a T1 trunk. The default length of the cable for
a T1 is Long 0db.
• Select the Short radio button, and select the length from the Length drop-down
list.
Short option sets the transmit attenuation for a cable length (line build-out) of
660 feet or shorter for a T1 trunk.
