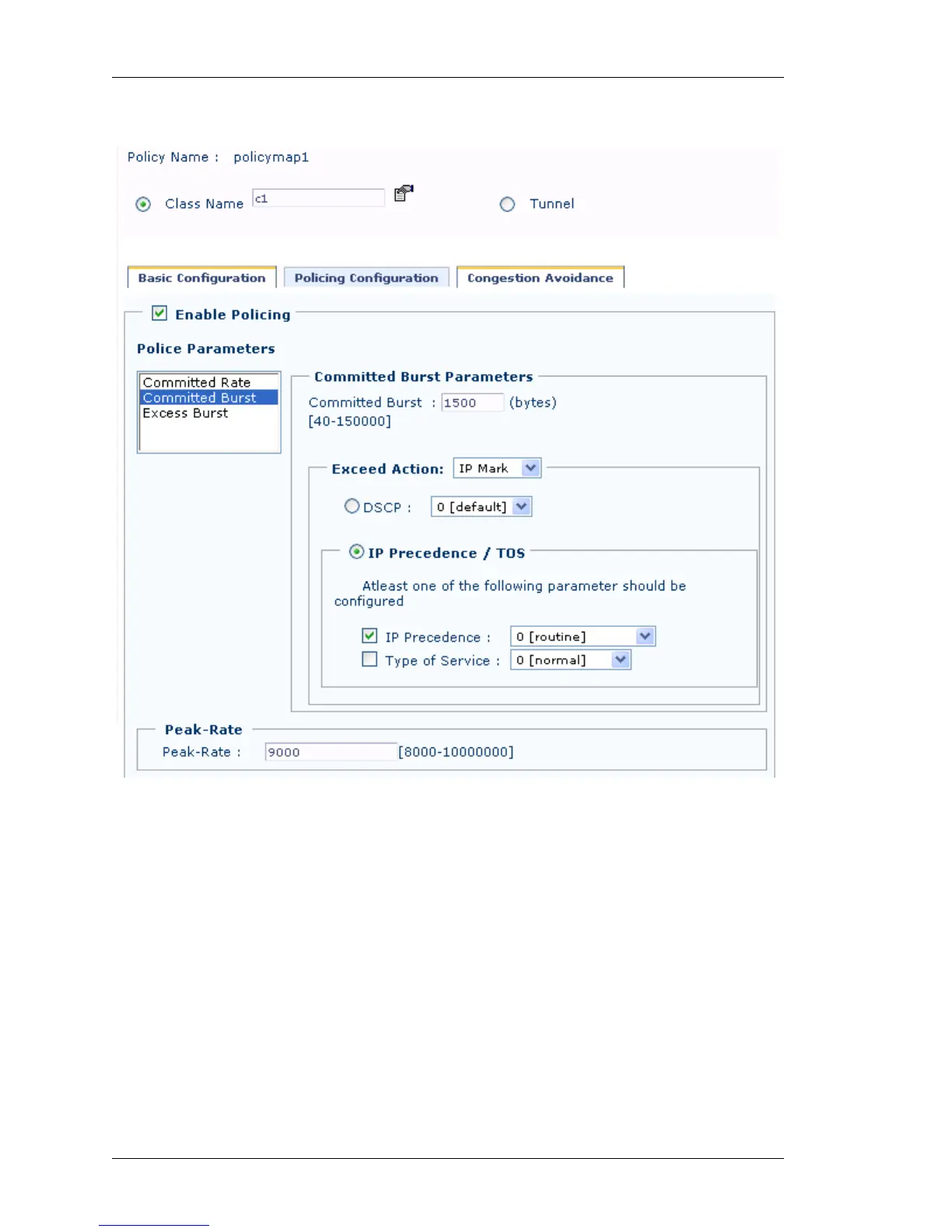

Figure 170: Quality of Service: Policy Map - New Traffic Class Policing
Configuration – Committed Burst
• Set Committed Burst rate in the Committed Burst field. The default burst
rate is 1500 bytes.
• Set Exceed Action as Drop, Transmit, or IP Mark. Select the required
option from the Exceed Action drop-down list.
If you set Exceed Action as IP Mark, set also the DSCP or IP
Precedence/TOS values.
i. Select DSCP radio button to set DSCP values. Select DSCP values
from the DSCP drop down menu.
ii. Select IP Precedence/ToS radio button to set IP precedence value. At
least one IP Precedence or TOS values must be configured.
Select the IP Precedence check box and select IP Precedence value
from the drop down list. Select Type of Service check box and select
the type of service from the drop down list.
