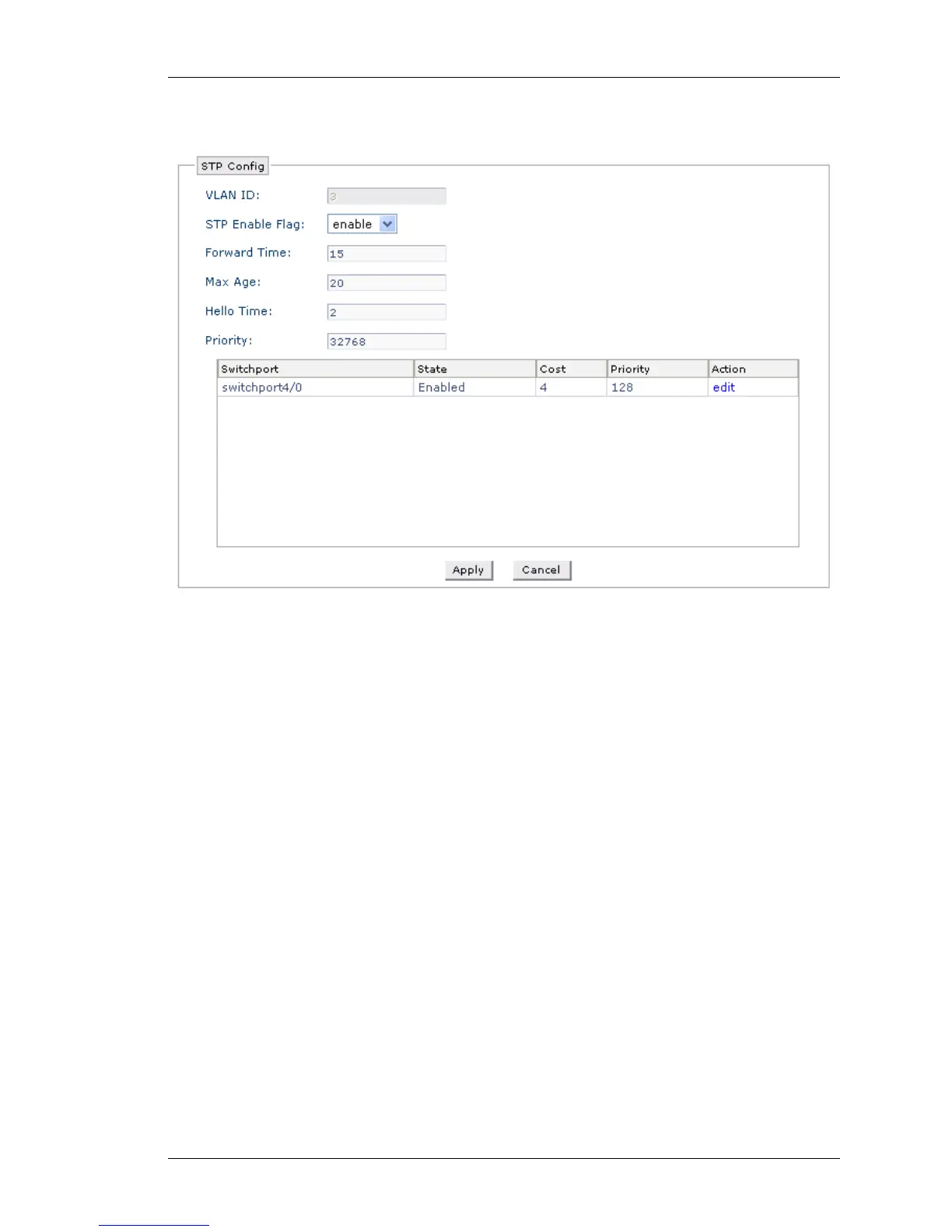

Figure 29: Interfaces - Configure VLAN - STP Config
Step 9: The VLAN ID for the selected VLAN is displayed in the VLAN ID field.
This is not editable.
Step 10: Enable/Disable the STP Flag by selecting Enable/Disable option from
the STP Enable Flag drop down list.
• Enable enables Spanning Tree parameters - Forward Time, Max Age, Hello Time
and Priority fields. Enter the values in the respective fields. An option to edit the
STP parameters is also enabled.
i. Forward Time - Enter the forward time in the range 4 - 30 seconds. Default is
15 seconds.
ii. Max Age - Enter the max age value in the range 6 - 40 seconds. Default is 20
seconds.
iii. Hello Time - Enter the value in the range 1- 10 seconds. Default is 2 seconds.
iv. Priority - Enter the bridge priority in the range 0 - 65535. Default is 32768.
• Selecting Disable option disables the Forward Time, Max Age, Hello Time and
Priority fields. Also, the option to edit the STP parameters is disabled.
Step 11: Configure the switch port parameters. These are configured on per port
basis.
• Click Edit link under Action column against the switch port whose state, priority,
and cost parameters are to be configured.
• Configure the required value in the respective fields.
