Configure
Left running head:
Chapter name (automatic)
18
Beta Beta
OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
Alcatel-Lucent
V
IEWING CARD DETAILS
This enables you to view the details of the respective card.
1. Click View icon in the Action column corresponding to the line card whose details
is to be viewed. The following pop up window is displayed:

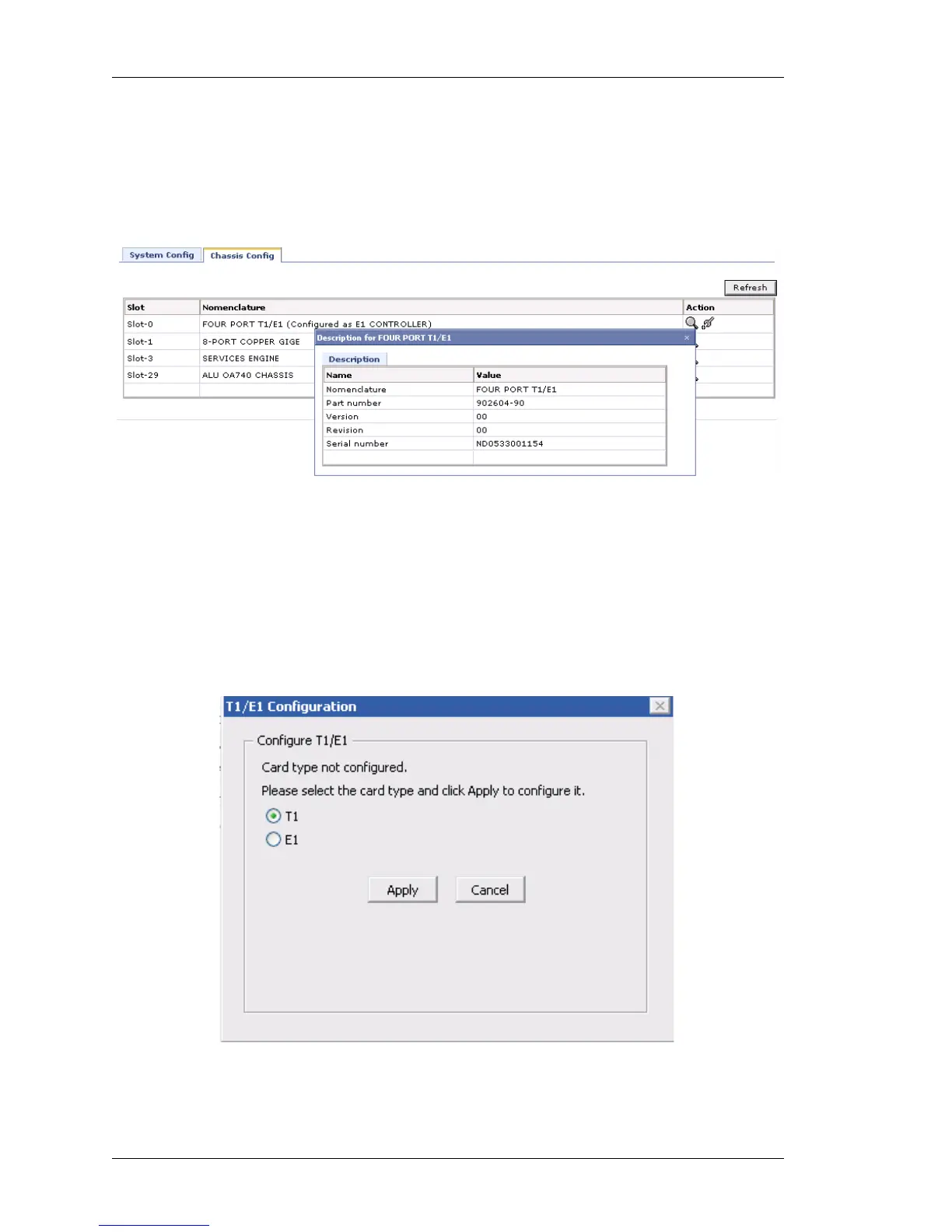

Figure 7: Chassis Config - View
S
ETTING CARD TYPE TO T1 OR E1
This enables you to set the T1E1 line card type to T1 or E1 for the first time.
1. Click Configure icon in the Action column against the T1E1 line card.
2. The following message box is displayed prompting you to set the line card type to
T1 or E1:
Figure 8: Chassis Config - Setting Card Type to T1 or E1
3. Select the card type and click Apply or click Cancel to cancel the operation.
