OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
Alcatel-Lucent
A
DD MLPPP INTERFACE
A typical MLPPP configuration has at least two components:
• A bundle interface
• An interface running PPP that is made multilink-enabled and attached to the
bundle interface.
IP routing protocols as well as policies such as ACL, NAT, IDS, IPSec, etc.,
configured on an individual interface will not be effective as long as the interface is
part of the MLPPP bundle. Once the interface is no longer part of the bundle, the
policies configured on the individual interface will become active.
Follow the below procedure to add a MLPPP bundle interface.
Step 1: Click Add Logical Interface on the Interfaces page. A drop-down list
lists the logical interfaces that can be configured. Select MLPPP from the list.
Configuring MLPPP Bundle Interface page is displayed as shown below.

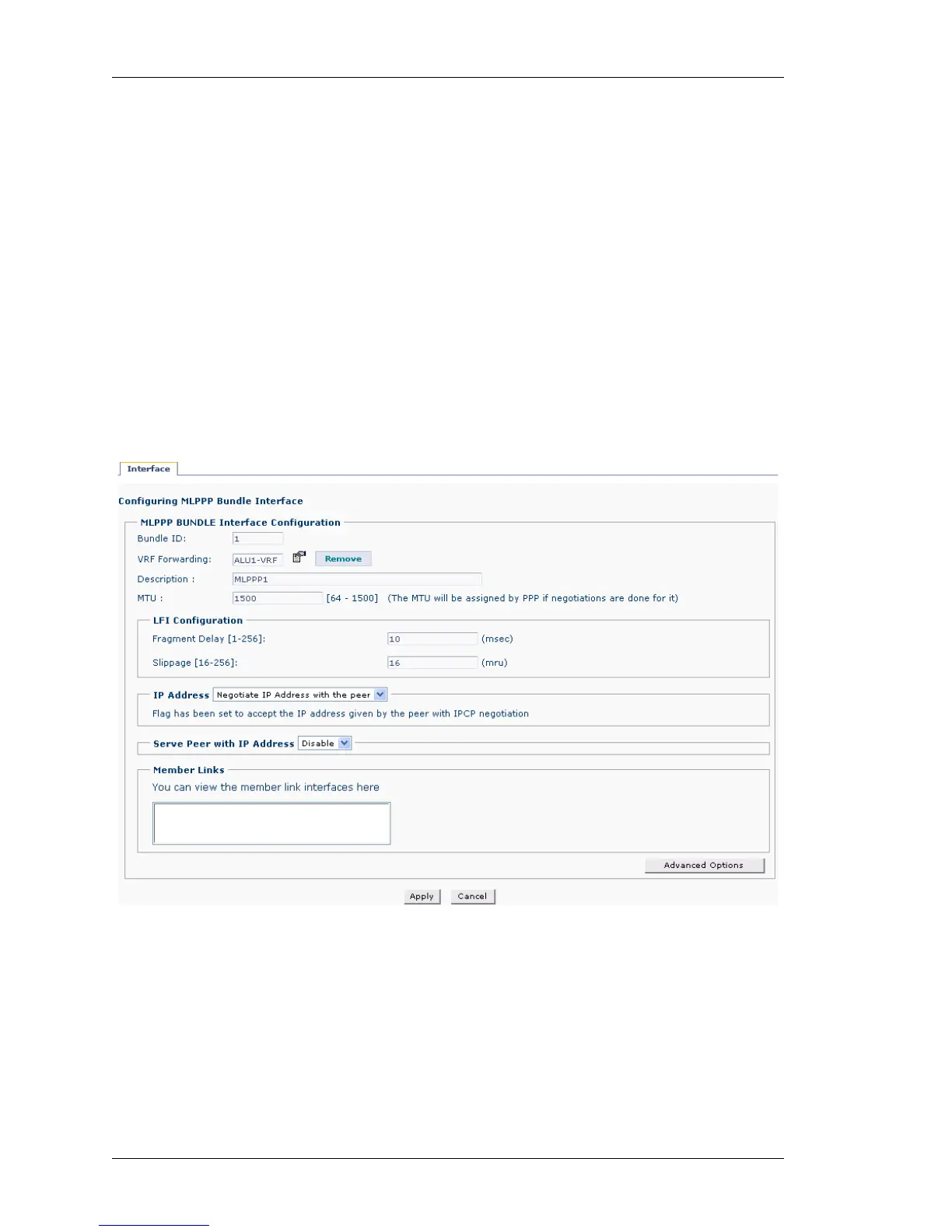

Figure 35: Interfaces - MLPPP Bundle Configuration
Step 2: Configure the MLPPP bundle interface by entering the bundle ID, VRF,
description, and MTU for the interface.
• Each MLPPP interface is identified by a bundle ID. Enter the ID for the interface in
the Bundle ID field. This creates a MLPPP bundle interface that is identified by
the bundle ID.
