OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
ASSOCIATING SENSOR TO A FIREWALL POLICY/EDITING SENSOR
1. Create a Sensor.
Follow Step 1 through Step 4 in the “Configuring Sensors” section.
2. Click Edit icon in the Action column against the Sensor you want to associate a
Firewall Policy/edit the sensor parameters.
Editing an Existing Intrusion Sensor page is displayed.

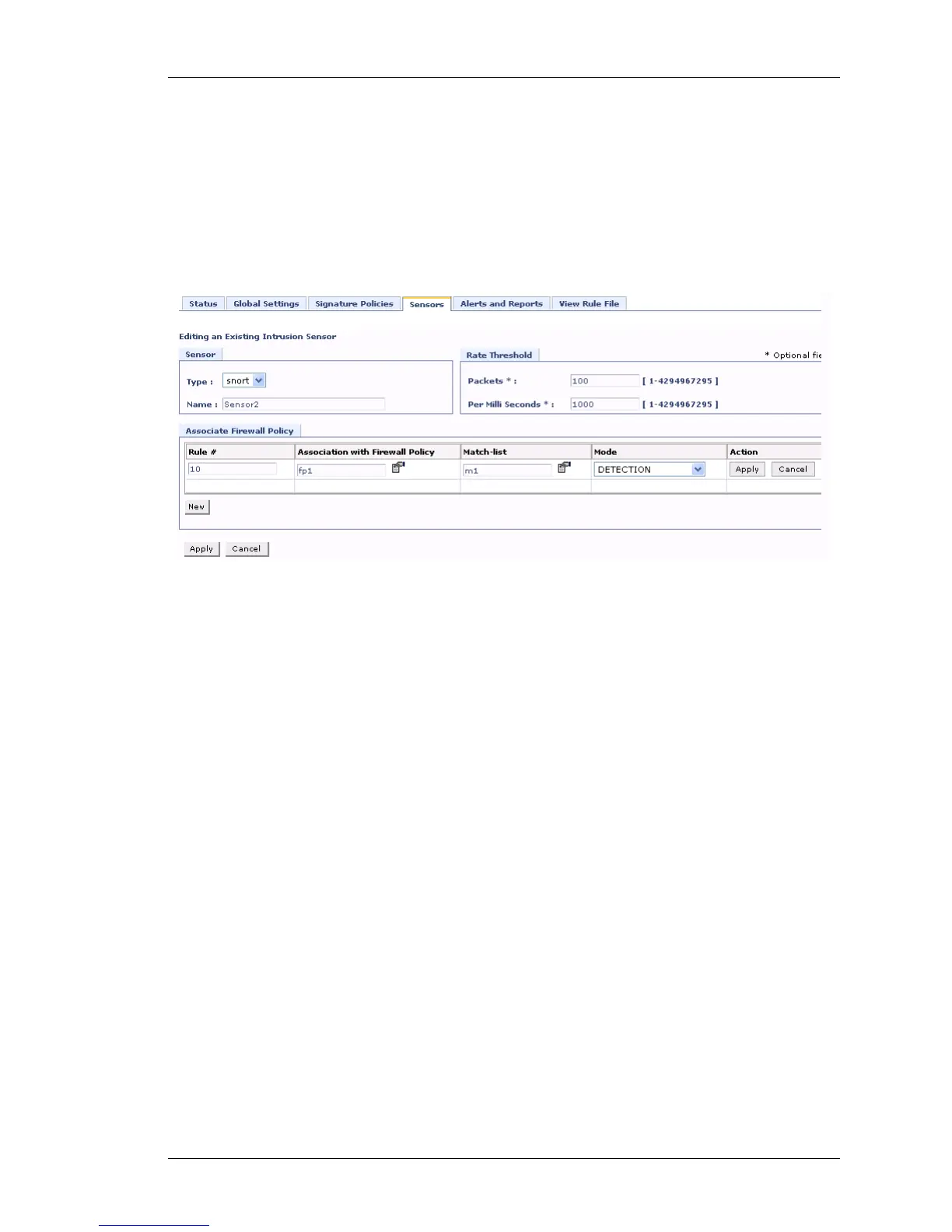

Figure 148: Intrusion Prevention: Sensor - Associating Sensor to a Firewall
Policy
3. Change the existing sensor parameters, if required.
4. Click New in the Associate Firewall Policy table.
This populates fields to associate the Firewall Policy.
5. Enter the rule number in the Rule # field. This is optional.
6. Select the firewall policy from the Firewall Policy list to which you want to
associate a sensor.
The same Sensor can be associated to multiple Firewall Policies, and the
same Firewall Policy can be attached to multiple Sensors. And, the same
Firewall Policy can be attached multiple times to the same Sensor as well.
7. Select the match-list from the Match-list list.
8. Select the mode from the Mode list: Detection/Prevention/Prevention-Reset.
9. Click Apply to associate a Firewall Policy to a Sensor/edit the sensor parameters
or Cancel to cancel the operation.
