OmniAccess 5740 Unified Services Gateway Web GUI Users Guide
Alcatel-Lucent
TRAFFIC STATISTICS
This page displays the IP and ICMP statistics.
IP S
TATISTICS
This page displays the IP Statistics.
V
IEWING IP STATISTICS
Follow the procedure below to view the IP statistics.
Step 1: Launch the Web GUI tool.
Step 2: From the USGM menu bar, click Monitor. All submenu/links under
Monitor are displayed in the left navigation panel.
Step 3: Click Traffic Statistics sub-menu.
The Traffic Statistics has two tabs: IP Statistics and ICMP Statistics. By default,
IP Statistics tab is selected and IP Statistics page is displayed in the center
panel.
The IP Statistics page allows to view the IP statistical details. It displays received,
sent, fragment and other parameter counter values.
Step 4: Select Default VRF radio button to view the IP statistics attached to
default VRF.
Step 5: Select Select VRF radio button. Choose the required VRF from the list.
This displays the static routes attached to the VRF selected from the list.

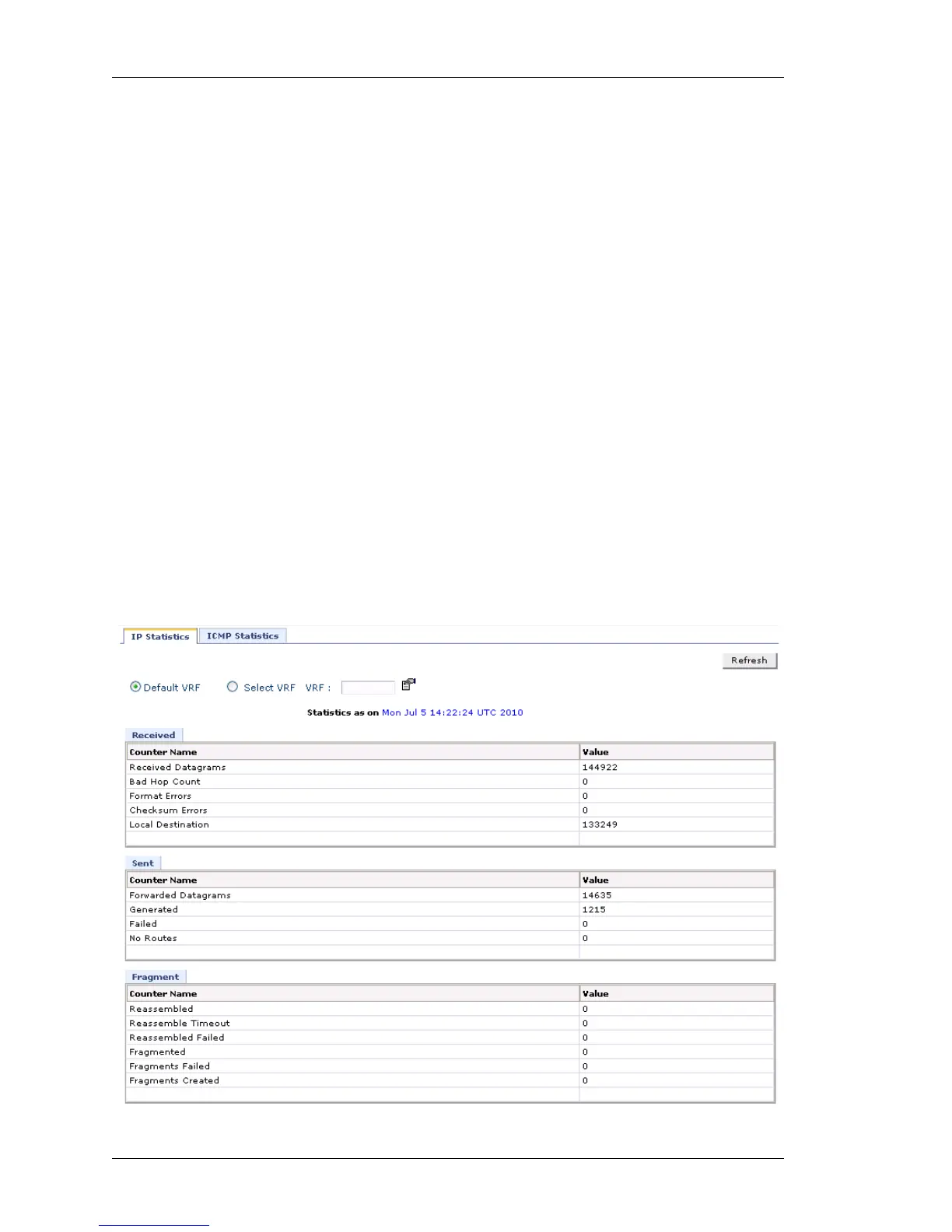

Figure 212: Monitor: Traffic Statistics - IP Statistics
