VIEWING VRRP
Step 1: From the USGM menu bar, click Configure. All submenu/links under
Configure are displayed in the left navigation panel.
Step 2: Click VRRP sub-menu. Virtual Routing Redundancy Protocol (VRRP)
Groups page is displayed in the center panel.
This page allows you to view the details for all the VRRP groups configured on the
interfaces. It also provides an option to configure new groups, edit/delete the
configured VRRP groups.

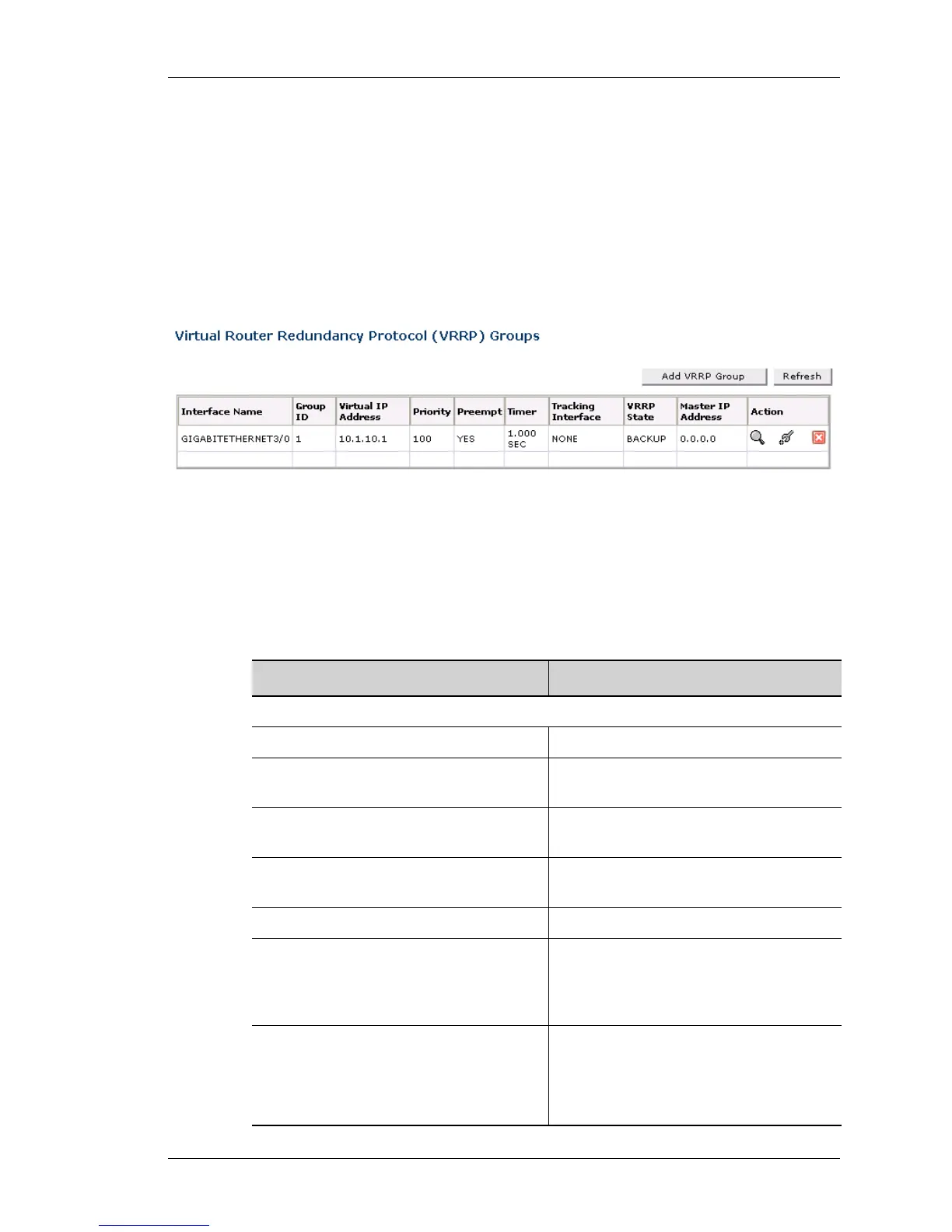

Figure 134: Virtual Routing Redundancy Protocol (VRRP) Groups
The table below provides field description for VRRP page.
Table 24: VRRP Field Description
Field Description
VRRP
Interface Name Interface on which VRRP is configured
Group ID Group ID configured for the VRRP
group.
Virtual IP Address The virtual IP address configured for the
VRRP
Priority The priority set for the router for a
specific VRRP group.
Preempt Pre-emption mode: enabled or disabled
Timer The interval value set between sending
successive advertisements by the
master virtual router in a group.
(Seconds/Milliseconds)
Tracking Interface Interface tracked for the VRRP group
OR
Displays if the Track on Interface Mode
is enabled or disabled
